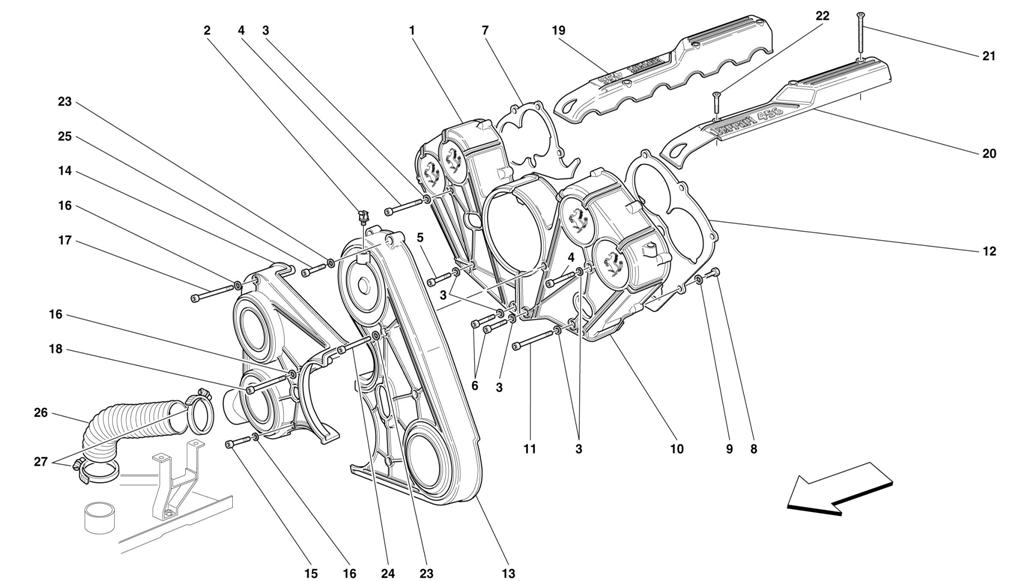

ENGINE COVERS

Go to Split View

ENGINE COVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155422 *Qty: 1 R.H. COVER Call
Location: 2 Prev | Next Part: 14573987 *Qty: 2 CLIP $0.90
Location: 3 Prev | Next Part: 12604274 *Qty: 6 WASHER $0.90
Location: 4 Prev | Next Part: 156829 *Qty: 2 SCREW $1.26
Location: 5 Prev | Next Part: 156828 *Qty: 1 SCREW Call
Location: 6 Prev | Next Part: 156830 *Qty: 2 SCREW $1.17
Location: 7 Prev | Next Part: 155819 *Qty: 1 R.H. PROTECTION $42.28
Location: 8 Prev | Next Part: 10977724 *Qty: 11 SCREW $0.90
Location: 9 Prev | Next Part: 12601174 *Qty: 11 WASHER $0.90
Location: 10 Prev | Next Part: 155479 *Qty: 1 L.H. COVER $228.32
Location: 11 Prev | Next Part: 156839 *Qty: 1 SCREW $16.16
Location: 12 Prev | Next Part: 155820 *Qty: 1 L.H. PROTECTION $38.79
Location: 13 Prev | Next Part: 155576 *Qty: 1 GUARD FOR BELT PROTECTION $193.59
Location: 14 Prev | Next Part: 166919 *Qty: 1 GUARD FOR BELT PROTECTION -Valid from Ass. Nr. 20879 -Valid after stock exhaustion of 156331 $201.56
Location: 15 Prev | Next Part: 156830 *Qty: 1 SCREW $1.17
Location: 16 Prev | Next Part: 12604274 *Qty: 3 WASHER $0.90
Location: 17 Prev | Next Part: 156832 *Qty: 1 SCREW $3.76
Location: 18 Prev | Next Part: 156829 *Qty: 1 SCREW $1.26
Location: 19 Prev | Next Part: 154706 *Qty: 1 R.H. PROTECTION $80.50
Location: 20 Prev | Next Part: 154707 *Qty: 1 L.H. PROTECTION $80.50
Location: 21 Prev | Next Part: 13302577 *Qty: 4 SCREW $1.32
Location: 22 Prev | Next Part: 13301977 *Qty: 2 SCREW $1.14
Location: 23 Prev | Next Part: 12604274 *Qty: 5 WASHER $0.90
Location: 24 Prev | Next Part: 156831 *Qty: 3 SCREW $1.46
Location: 25 Prev | Next Part: 156830 *Qty: 2 SCREW $1.17
Location: 26 Prev | Next Part: 158233 *Qty: 1 CONVEYOR TUBE $98.81
Location: 27 Prev | Next Part: 13000890 *Qty: 2 SCREW COLLAR $1.39

* Quantity shown indicates the number of pieces used in the diagram.
