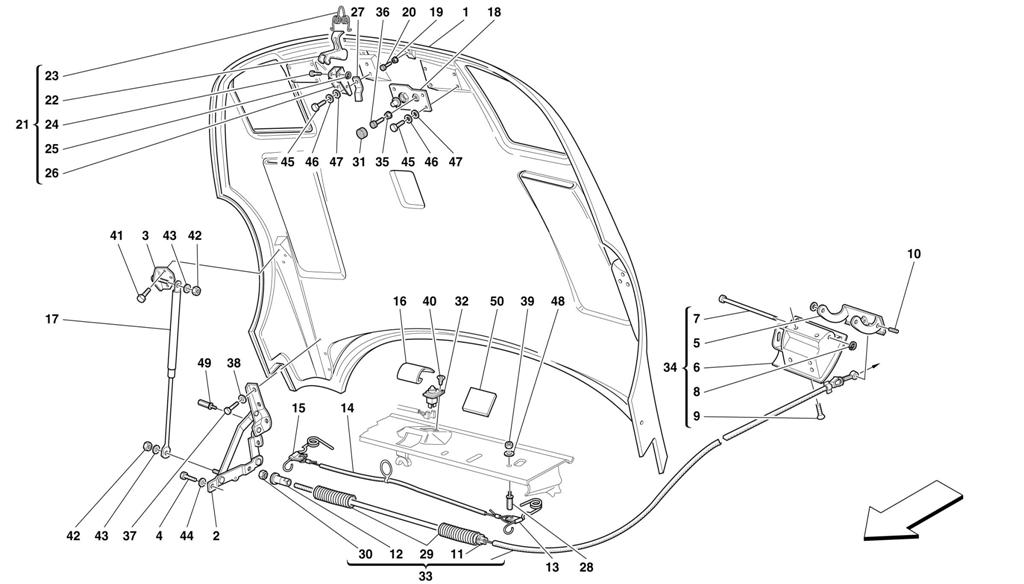

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65489800 *Qty: 1 FRONT HOOD BONNET -Valid from car Ass. Nr. 28328 Call
Location: 2 Prev | Next Part: 63853800 *Qty: 1 R.H. FRONT HOOD BONNET HINGE $974.09
Location: 2 Prev | Next Part: 63853900 *Qty: 1 L.H. FRONT HOOD BONNET HINGE $974.09
Location: 3 Prev | Next Part: 63797800 *Qty: 1 R.H. PLATE Call
Location: 3 Prev | Next Part: 63797900 *Qty: 1 L.H. PLATE Call
Location: 4 Prev | Next Part: 13839224 *Qty: 4 SCREW $4.63
Location: 5 Prev | Next Part: 63726300 *Qty: 1 HANDLE FOR FRONT HOOD OPENING Call
Location: 6 Prev | Next Part: 63726400 *Qty: 1 HANDLE SEAT FOR FRONT HOOD OPENING Call
Location: 7 Prev | Next Part: 63726200 *Qty: 1 PIN Call
Location: 8 Prev | Next Part: 11087576 *Qty: 1 SEEGER RING $0.90
Location: 9 Prev | Next Part: 145998 *Qty: 2 SCREW $2.04
Location: 10 Prev | Next Part: 14163570 *Qty: 1 FLEXIBLE PIN $0.90
Location: 11 Prev | Next Part: 63206400 *Qty: 1 STOP PIN $11.98
Location: 12 Prev | Next Part: 63206500 *Qty: 1 KNOB $15.80
Location: 13 Prev | Next Part: 63883700 *Qty: 1 L.H. SPRING $146.66
Location: 14 Prev | Next Part: 63883500 *Qty: 1 SAFETY CABLE $146.87
Location: 15 Prev | Next Part: 63883600 *Qty: 1 R.H. SPRING $146.66
Location: 16 Prev | Next Part: 63883200 *Qty: 1 PLATE -Valid after stock exhaustion of 63762500 $10.47
Location: 17 Prev | Next Part: 63895800 *Qty: 2 GAS SPRING -Valid after stock exhaustion of 63219500 and till car Ass. Nr. 28327 -Valid for hood $48.65
Location: 17 Prev | Next Part: 65507700 *Qty: 2 GAS SPRING -Valid from car Ass. Nr. 28328 -Valid for hood bonnet 65489800 $44.50
Location: 18 Prev | Next Part: 63789500 *Qty: 1 R.H. HOOD LOCK DEVICE $156.02
Location: 18 Prev | Next Part: 63789600 *Qty: 1 L.H. HOOD LOCK DEVICE $156.02
Location: 19 Prev | Next Part: 16102377 *Qty: 2 NUT $2.02
Location: 20 Prev | Next Part: 62794600 *Qty: 2 PAD $5.86
Location: 21 Prev | Next Part: 65120000 *Qty: 1 COMPLETE SAFETY HOOK FOR BONNET -Replace the 63876600 $399.38
Location: 22 Prev | Next Part: 63218600 *Qty: 1 SAFETY HOOK FOR BONNET -Not as spare now replaced by 65119900 Call
Location: 22 Prev | Next Part: 65119900 *Qty: 1 SAFETY HOOK FOR BONNET -Replace the 63218600 $230.85
Location: 23 Prev | Next Part: 63219200 *Qty: 1 SPRING $6.05
Location: 24 Prev | Next Part: 63219100 *Qty: 1 PIN $8.22
Location: 25 Prev | Next Part: 11088076 *Qty: 1 SEEGER RING $0.90
Location: 26 Prev | Next Part: 63218000 *Qty: 1 RETAINER $9.90
Location: 27 Prev | Next Part: 63885000 *Qty: 1 BRACKET $2.68
Location: 28 Prev | Next Part: 63882800 *Qty: 2 END OF STROKE $6.59
Location: 29 Prev | Next Part: 63895000 *Qty: 2 RUBBER BOOT Call
Location: 30 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 31 Prev | Next Part: 61564700 *Qty: 2 RUBBER PAD $1.60
Location: 32 Prev | Next Part: 153069 *Qty: 1 SWITCH $7.16
Location: 33 Prev | Next Part: 65832400 *Qty: 1 COMPLETE CABLE FOR FRONT HOOD OPENING -Not as spare part replaced by 65668700 $374.53
Location: 33 Prev | Next Part: 65832600 *Qty: 1 COMPLETE CABLE FOR FRONT HOOD OPENING -Replace the 63790400 $367.15
Location: 34 Prev | Next Part: 63726300 *Qty: 1 HANDLE FOR FRONT HOOD OPENING COMPLETE Call
Location: 35 Prev | Next Part: 16102377 *Qty: 2 NUT $2.02
Location: 36 Prev | Next Part: 62766500 *Qty: 2 SCREW $4.54
Location: 37 Prev | Next Part: 13838911 *Qty: 6 SCREW $5.03
Location: 38 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 39 Prev | Next Part: 15896277 *Qty: 2 NUT $6.87
Location: 40 Prev | Next Part: 15687375 *Qty: 1 SCREW $0.90
Location: 41 Prev | Next Part: 13836071 *Qty: 6 SCREW $0.90
Location: 42 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 43 Prev | Next Part: 10519424 *Qty: 4 WASHER Call
Location: 44 Prev | Next Part: 12446724 *Qty: 4 WASHER Call
Location: 45 Prev | Next Part: 10902111 *Qty: 10 SCREW Superseded
Location: 46 Prev | Next Part: 127494 *Qty: 10 WASHER $0.90
Location: 47 Prev | Next Part: 12643724 *Qty: 10 WASHER $0.90
Location: 48 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 49 Prev | Next Part: 63218100 *Qty: 2 END OF STROKE $24.18
Location: 50 Prev | Next Part: 12856780 *Qty: 1 AIR-BAG AUTO-ADHESIVE PLATE -Valid for car with Air-Bag $0.90

* Quantity shown indicates the number of pieces used in the diagram.
