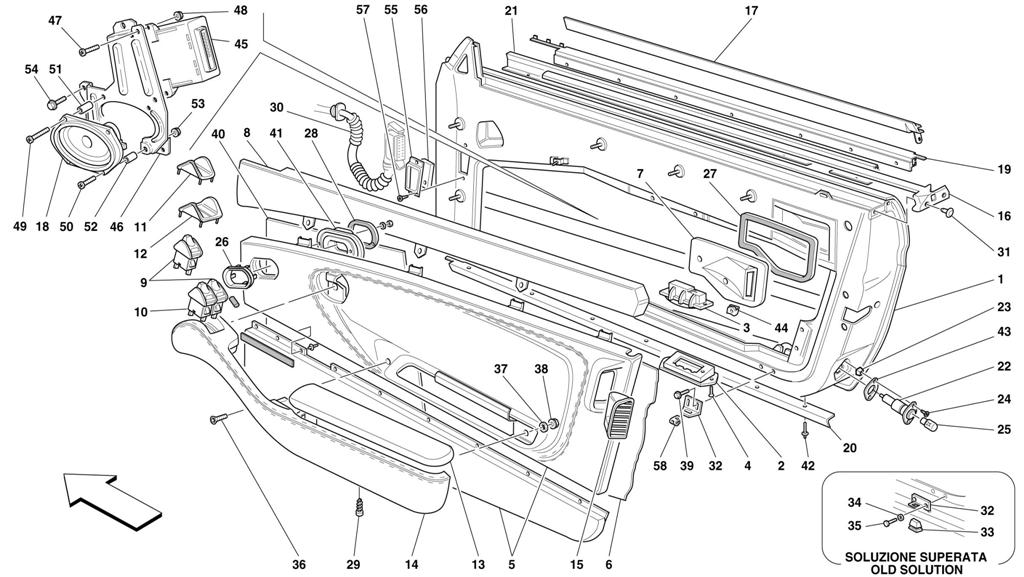

DOORS - FRAMEWORK AND COVERINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63481600 *Qty: 1 R.H. DOOR FRAME -Not for USA, CDN, AUS and SA Call
Location: 1 Prev | Next Part: 64396300 *Qty: 1 R.H. DOOR FRAME -Valid for USA, CDN, AUS and SA $3,634.34
Location: 1 Prev | Next Part: 63481700 *Qty: 1 L.H. DOOR FRAME -Not for USA, CDN, AUS and SA $1,732.17
Location: 1 Prev | Next Part: 64396400 *Qty: 1 L.H. DOOR FRAME -Valid for USA, CDN, AUS and SA $2,863.70
Location: 2 Prev | Next Part: 60842000 *Qty: 2 UNDER DOOR BOX LAMP $5.47
Location: 3 Prev | Next Part: 65088400 *Qty: 2 UNDER DOOR LAMP -Valid after stock exhaustion of 60842100 $42.83
Location: 3 Prev | Next Part: 60842100 *Qty: 2 UNDER DOOR LAMP -Valid till stock exhaustion Call
Location: 4 Prev | Next Part: 15901575 *Qty: 4 SCREW $0.90
Location: 6 Prev | Next Part: 63771400 *Qty: 1 R.H. WATER PROTECTION CLOTH $49.32
Location: 6 Prev | Next Part: 63771500 *Qty: 1 L.H. WATER PROTECTION CLOTH $49.32
Location: 7 Prev | Next Part: 63723900 *Qty: 1 R.H. REAR AIR INLET Call
Location: 7 Prev | Next Part: 63724000 *Qty: 1 L.H. REAR AIR INLET Call
Location: 8 Prev | Next Part: 637182.. *Qty: 1 COVERED R.H. UPPER ENCLOSURE Call
Location: 8 Prev | Next Part: 637183.. *Qty: 1 COVERED L.H. UPPER ENCLOSURE Call
Location: 8 Prev | Next Part: 648452.. *Qty: 1 R.H. LINING Call
Location: 8 Prev | Next Part: 648453.. *Qty: 1 L.H. LINING Call
Location: 9 Prev | Next Part: 153090 *Qty: 2 R.H. SWITCH FOR GLASS LIFT -For GD Q.ty 1 -Valid till car Ass. Nr. 22917 $112.58
Location: 9 Prev | Next Part: 171061 *Qty: 2 R.H. SWITCH FOR GLASS LIFT -For GD Q.ty 1 -Valid from car Ass. Nr. 22918 $101.52
Location: 10 Prev | Next Part: 171058 *Qty: 1 L.H. SWITCH FOR GLASS LIFT -For GD Q.ty 2 -Valid from car Ass. Nr. 22918 $100.66
Location: 10 Prev | Next Part: 153089 *Qty: 1 L.H. SWITCH FOR GLASS LIFT -For GD Q.ty 2 -Valid till car Ass. Nr. 22917 $210.00
Location: 11 Prev | Next Part: 63727100 *Qty: 1 PASSENGER SIDE SWITCH HOLDER PLATE $19.75
Location: 12 Prev | Next Part: 63727300 *Qty: 1 PILOT SIDE SWITCH HOLDER PLATE Call
Location: 13 Prev | Next Part: 653416.. *Qty: 1 COVERED R.H. DOOR ARM-REST -Valid from Serial Nr. 107635 Call
Location: 13 Prev | Next Part: 637194.. *Qty: 1 COVERED R.H. DOOR ARM-REST -Valid till Serial Nr. 107634 Call
Location: 13 Prev | Next Part: 653433.. *Qty: 1 COVERED L.H. DOOR ARM-REST -Valid from Serial Nr. 107635 Call
Location: 13 Prev | Next Part: 637195.. *Qty: 1 COVERED L.H. DOOR ARM-REST -Valid till Serial Nr. 107634 Call
Location: 13 Prev | Next Part: 648454.. *Qty: 1 R.H. LINING Call
Location: 13 Prev | Next Part: 648455.. *Qty: 1 L.H. LINING Call
Location: 14 Prev | Next Part: 648457.. *Qty: 1 L.H. LINING -Not for GD Call
Location: 14 Prev | Next Part: 648458.. *Qty: 1 R.H. LINING -Valid for GD Call
Location: 14 Prev | Next Part: 648459.. *Qty: 1 L.H. LINING -Valid for GD Call
Location: 14 Prev | Next Part: 653419.. *Qty: 1 COVERED R.H. HANDLE -Not for GD -Valid from Serial Nr. 107635 Call
Location: 14 Prev | Next Part: 653430.. *Qty: 1 COVERED L.H. HANDLE -Not for GD -Valid from Serial Nr. 107635 Call
Location: 14 Prev | Next Part: 653450.. *Qty: 1 COVERED R.H. HANDLE -Valid for GD -Valid from Serial Nr. 107635 Call
Location: 14 Prev | Next Part: 637204.. *Qty: 1 COVERED R.H. HANDLE -Not for GD -Valid till Serial Nr. 107634 Call
Location: 14 Prev | Next Part: 653454.. *Qty: 1 COVERED L.H. HANDLE -Valid for GD -Valid from Serial Nr. 107635 Call
Location: 14 Prev | Next Part: 637205.. *Qty: 1 COVERED L.H. HANDLE -Not for GD -Valid till Serial Nr. 107634 Call
Location: 14 Prev | Next Part: 642581.. *Qty: 1 COVERED R.H. HANDLE -Valid for GD -Valid till Serial Nr. 107634 Call
Location: 14 Prev | Next Part: 642586.. *Qty: 1 COVERED L.H. HANDLE -Valid for GD -Valid till Serial Nr. 107634 Call
Location: 14 Prev | Next Part: 648456.. *Qty: 1 R.H. LINING -Not for GD Call
Location: 15 Prev | Next Part: 63850400 *Qty: 1 R.H. AIR DIFFUSOR OPENING $67.15
Location: 15 Prev | Next Part: 63850500 *Qty: 1 L.H. AIR DIFFUSOR OPENING $100.26
Location: 16 Prev | Next Part: 63488600 *Qty: 1 R.H. INNER GLASS SCRAPER $389.67
Location: 16 Prev | Next Part: 63488700 *Qty: 1 L.H. INNER GLASS SCRAPER $389.67
Location: 17 Prev | Next Part: 63498000 *Qty: 1 R.H. EXTERNAL GLASS SCRAPER $400.83
Location: 17 Prev | Next Part: 63498100 *Qty: 1 L.H. EXTERNAL GLASS SCRAPER $400.83
Location: 18 Prev | Next Part: 157408 *Qty: 2 LOUD SPEAKER WOOFER $370.17
Location: 19 Prev | Next Part: 63733300 *Qty: 1 R.H. OUTER GASKET SUPPORT $493.56
Location: 19 Prev | Next Part: 63733400 *Qty: 1 L.H. OUTER GASKET SUPPORT $493.56
Location: 20 Prev | Next Part: 63488300 *Qty: 1 L.H. LOWER GASKET $45.90
Location: 20 Prev | Next Part: 63758200 *Qty: 1 R.H. LOWER GASKET $45.51
Location: 21 Prev | Next Part: 63733500 *Qty: 1 R.H. INNER GASKET SUPPORT $94.34
Location: 21 Prev | Next Part: 63733600 *Qty: 1 L.H.INNER GASKET SUPPORT $94.34
Location: 22 Prev | Next Part: 60788100 *Qty: 2 OPENING DOOR LAMP $8.13
Location: 23 Prev | Next Part: 14115580 *Qty: 4 BLOCK $0.90
Location: 24 Prev | Next Part: 15901475 *Qty: 4 SCREW $0.90
Location: 25 Prev | Next Part: 101525 *Qty: 2 BULB Call
Location: 26 Prev | Next Part: 63723800 *Qty: 2 FRAME $54.63
Location: 27 Prev | Next Part: 63724100 *Qty: 2 GASKET $46.08
Location: 28 Prev | Next Part: 63723700 *Qty: 2 GASKET $15.25
Location: 29 Prev | Next Part: 15687401 *Qty: 2 SCREW Call
Location: 30 Prev | Next Part: 155396 *Qty: 2 RUBBER BOOT $57.59
Location: 31 Prev | Next Part: 62955400 *Qty: 4 FIXING BUTTON -Substitutes 63944900 Call
Location: 31 Prev | Next Part: 63944900 *Qty: 4 FIXING BUTTON -Not as spare part now -Replaced by 62955400 $0.90
Location: 32 Prev | Next Part: 65297600 *Qty: 6 BRACKET -Valid till Ass. Nr. 24485 $6.00
Location: 32 Prev | Next Part: 63718100 *Qty: 6 BRACKET -Valid till Ass. Nr. 24485 $1.26
Location: 33 Prev | Next Part: 62765000 *Qty: 6 PLASTIC NUT SCREW -Valid till Ass. Nr. 24485 $2.64
Location: 34 Prev | Next Part: 13550077 *Qty: 12 WASHER -Valid till Ass. Nr. 24485 $4.58
Location: 35 Prev | Next Part: 15642601 *Qty: 12 SCREW -Valid till Ass. Nr. 24485 Call
Location: 36 Prev | Next Part: 64230600 *Qty: 2 SCREW $11.86
Location: 37 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 38 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 39 Prev | Next Part: 13833171 *Qty: 12 SCREW -Valid from Ass. Nr. 24486 $0.90
Location: 40 Prev | Next Part: 64061000 *Qty: 1 R.H. FRONT WATER PROTECTION CLOTH $19.75
Location: 40 Prev | Next Part: 64061100 *Qty: 1 L.H. FRONT WATER PROTECTION CLOTH $19.75
Location: 41 Prev | Next Part: 63723500 *Qty: 1 R.H. FRONT AIR INLET Call
Location: 41 Prev | Next Part: 63723600 *Qty: 1 L.H. FRONT AIR INLET Call
Location: 42 Prev | Next Part: 62764000 *Qty: 16 RIVET $0.90
Location: 43 Prev | Next Part: 140576 *Qty: 2 GASKET $16.19
Location: 44 Prev | Next Part: 60841900 *Qty: 4 CLIP $0.90
Location: 45 Prev | Next Part: 153096 *Qty: 2 GLASS LIFTING CONTROL ELECTRIC UNIT Call
Location: 46 Prev | Next Part: 65297400 *Qty: 1 R.H. CONTROL UNIT FIXING BRACKET $38.52
Location: 46 Prev | Next Part: 65297500 *Qty: 1 L.H. CONTROL UNIT FIXING BRACKET $38.52
Location: 47 Prev | Next Part: 13274077 *Qty: 4 SCREW $0.90
Location: 48 Prev | Next Part: 13831801 *Qty: 4 NUT $0.90
Location: 49 Prev | Next Part: 13274872 *Qty: 4 SCREW -L. 30 $1.81
Location: 50 Prev | Next Part: 13274672 *Qty: 4 SCREW -L. 25 $0.93
Location: 51 Prev | Next Part: 65297200 *Qty: 4 SPACER $31.50
Location: 52 Prev | Next Part: 65297300 *Qty: 4 SPACER $34.19
Location: 53 Prev | Next Part: 13831801 *Qty: 8 NUT $0.90
Location: 54 Prev | Next Part: 13833614 *Qty: 8 SCREW $1.58
Location: 55 Prev | Next Part: 63791200 *Qty: 2 PLATE $7.09
Location: 56 Prev | Next Part: 63791000 *Qty: 2 CABLE BUSHING $9.78
Location: 57 Prev | Next Part: 13271914 *Qty: 4 SCREW $0.90
Location: 58 Prev | Next Part: 62764200 *Qty: 6 CLIP -Valid from Ass. Nr. 24486 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
