DIFFERENTIAL AND AXLE SHAFT -NOT FOR 456 GTA

Go to Split View

DIFFERENTIAL AND AXLE SHAFT -NOT FOR 456 GTA

in cart

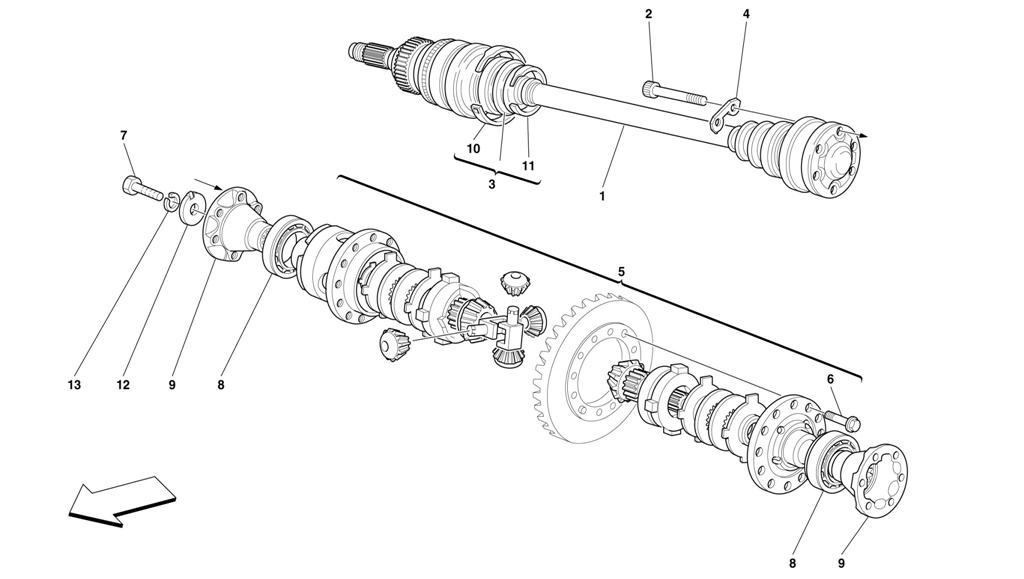

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165072 *Qty: 2 AXLE SHAFT -Valid after stock exhaustion of 143103 $1,119.11
Location: 2 Prev | Next Part: 181910 *Qty: 12 SCREW Superseded
Location: 3 Prev | Next Part: 70000782 *Qty: 2 PROTECTION REPLACEMENT SET -Wheel/gearbox side -Not as spare part now -Replaced by 70000868 Call
Location: 3 Prev | Next Part: 70000867 *Qty: 2 PROTECTION REPLACEMENT SET -Gearbox side Superseded
Location: 3 Prev | Next Part: 70000868 *Qty: 2 PROTECTION REPLACEMENT SET -Wheel/gearbox side $136.79
Location: 4 Prev | Next Part: 149415 *Qty: 6 SCRAPING PLATE $2.45
Location: 5 Prev | Next Part: 155018 *Qty: 1 DIFFERENTIAL COMPLETE $4,429.99
Location: 6 Prev | Next Part: 158278 *Qty: 12 SCREW $5.83
Location: 7 Prev | Next Part: 153589 *Qty: 2 SCREW Call
Location: 8 Prev | Next Part: 125390 *Qty: 2 BEARING $211.62
Location: 9 Prev | Next Part: 139898 *Qty: 2 FLANGE FOR AXLE COUPLING $261.94
Location: 10 Prev | Next Part: 154214 *Qty: 4 BIG CLAMP -Not as spare part now -Replaced by 172347 $2.44
Location: 10 Prev | Next Part: 172347 *Qty: 4 BIG CLAMP $9.97
Location: 11 Prev | Next Part: 154213 *Qty: 4 LITTLE CLAMP $5.50
Location: 12 Prev | Next Part: 153591 *Qty: 2 SPACER $4.98
Location: 13 Prev | Next Part: 153590 *Qty: 2 RING $0.90

* Quantity shown indicates the number of pieces used in the diagram.
