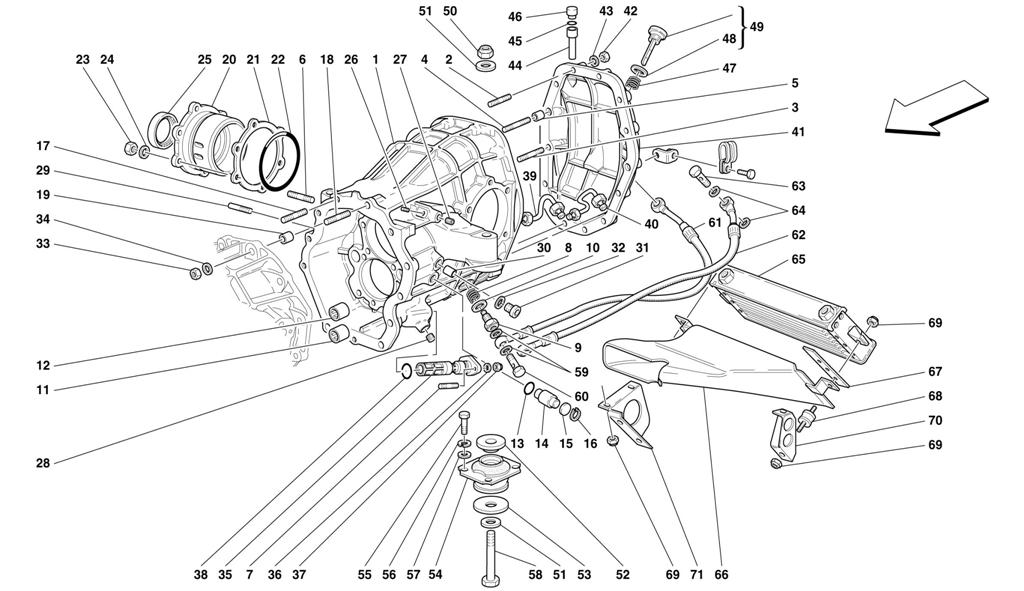

DIFFERENT. CARRIER AND GEARBOX COOLING RADIATOR -NOT FOR 456 GTA

Go to Split View

DIFFERENT. CARRIER AND GEARBOX COOLING RADIATOR -NOT FOR 456 GTA

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 157955 *Qty: 1 COMPLETE GEARBOX -Valid till gearbox Nr. 1000 $6,024.13
Location: - Prev | Next Part: 161978 *Qty: 1 GEAR BOX 4th ELEMENT -Valid from gearbox Nr. 1577 -With complete gear box Call
Location: - Prev | Next Part: 164046 *Qty: 1 COMPLETE GEARBOX -Valid from gearbox Nr. 1001 till gearbox Nr. 1576 $4,204.80
Location: - Prev | Next Part: 164049 *Qty: 1 GEAR BOX 4th ELEMENT -Valid from gearbox Nr. 1001 till gearbox Nr. 1576 -With complete gear box Call
Location: - Prev | Next Part: 172616 *Qty: 1 COMPLETE GEARBOX -Valid from gearbox Nr. 1577 $4,111.59
Location: 1 Prev | Next Part: 157619 *Qty: 1 GEAR BOX 4th ELEMENT -Valid till gearbox Nr. 1000 -With complete gear box- Call
Location: 2 Prev | Next Part: 13543624 *Qty: 10 STUD $0.90
Location: 3 Prev | Next Part: 13543724 *Qty: 2 STUD $1.11
Location: 4 Prev | Next Part: 13543824 *Qty: 2 STUD Superseded
Location: 5 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $19.74
Location: 6 Prev | Next Part: 13546224 *Qty: 12 STUD $19.68
Location: 7 Prev | Next Part: 11001024 *Qty: 2 STUD $3.36
Location: 8 Prev | Next Part: 112254 *Qty: 2 THREADED INSERT $5.94
Location: 9 Prev | Next Part: 150853 *Qty: 2 UNION $17.53
Location: 10 Prev | Next Part: 10263460 *Qty: 2 GASKET Superseded
Location: 11 Prev | Next Part: 159160 *Qty: 1 BEARING BUSH FOR REVERSE ROD -Valid till gearbox Nr. 1576 $10.57
Location: 11 Prev | Next Part: 106500 *Qty: 1 BEARING BUSH FOR REVERSE ROD -Valid from gearbox Nr. 1577 $1.83
Location: 12 Prev | Next Part: 149907 *Qty: 2 BEARING FOR 1st AND 2nd GEAR ROD $4.56
Location: 13 Prev | Next Part: 134232 *Qty: 1 O.R. GASKET $1.70
Location: 14 Prev | Next Part: 153719 *Qty: 1 PIN $21.00
Location: 15 Prev | Next Part: 154698 *Qty: 1 RING $7.66
Location: 16 Prev | Next Part: 11057476 *Qty: 1 STOP RING $0.90
Location: 17 Prev | Next Part: 13543524 *Qty: 7 STUD $0.90
Location: 18 Prev | Next Part: 13543624 *Qty: 2 STUD $0.90
Location: 19 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $19.74
Location: 20 Prev | Next Part: 145531 *Qty: 2 DIFFERENTIAL COVER Call
Location: 21 Prev | Next Part: 150100 *Qty: 0 DITTO THINCKNESS mm 1.4 $80.76
Location: 21 Prev | Next Part: 150101 *Qty: 0 DITTO THINCKNESS mm 1.5 $80.76
Location: 21 Prev | Next Part: 150102 *Qty: 0 DITTO THINCKNESS mm 1.6 $80.76
Location: 21 Prev | Next Part: 150103 *Qty: 0 DITTO THINCKNESS mm 1.7 $230.67
Location: 21 Prev | Next Part: 150104 *Qty: 0 DITTO THINCKNESS mm 1.8 $67.66
Location: 21 Prev | Next Part: 150105 *Qty: 0 DITTO THINCKNESS mm 1.9 $107.25
Location: 21 Prev | Next Part: 150106 *Qty: 0 DITTO THINCKNESS mm 1.45 $105.01
Location: 21 Prev | Next Part: 150107 *Qty: 0 DITTO THINCKNESS mm 1.55 $107.25
Location: 21 Prev | Next Part: 150108 *Qty: 0 DITTO THINCKNESS mm 1.65 $80.76
Location: 21 Prev | Next Part: 150099 *Qty: 2 DIFFERENTIAL COVER THRUST THINCKNESS mm 1.3 $87.91
Location: 22 Prev | Next Part: 139453 *Qty: 2 O.R. GASKET $3.52
Location: 23 Prev | Next Part: 133988 *Qty: 12 NUT $0.90
Location: 24 Prev | Next Part: 12601474 *Qty: 12 WASHER $0.90
Location: 25 Prev | Next Part: 133628 *Qty: 1 R.H. GASKET $124.99
Location: 25 Prev | Next Part: 141509 *Qty: 1 L.H. GASKET $50.49
Location: 26 Prev | Next Part: 65928500 *Qty: 2 PLUG $21.12
Location: 27 Prev | Next Part: 14326150 *Qty: 1 PLUG $0.90
Location: 28 Prev | Next Part: 14326050 *Qty: 1 PLUG $1.77
Location: 29 Prev | Next Part: 16183021 *Qty: 1 SCREW $1.00
Location: 30 Prev | Next Part: 115376 *Qty: 1 BUSHING $40.25
Location: 31 Prev | Next Part: 150731 *Qty: 1 PLUG $5.02
Location: 32 Prev | Next Part: 10282460 *Qty: 1 GASKET $1.20
Location: 33 Prev | Next Part: 16100814 *Qty: 13 NUT $0.90
Location: 34 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 35 Prev | Next Part: 143939 *Qty: 1 OIL FILTER ON THE GEAR BOX $120.66
Location: 36 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.15
Location: 37 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 147278 *Qty: 1 O.R. GASKET $0.90
Location: 39 Prev | Next Part: 150594 *Qty: 1 OIL DELIVERY TUBE $139.83
Location: 40 Prev | Next Part: 150592 *Qty: 1 OIL RETURN TUBE $46.67
Location: 41 Prev | Next Part: 143846 *Qty: 1 REAR COVER -Valid till stock exhaustion $205.63
Location: 41 Prev | Next Part: 168107 *Qty: 1 REAR COVER -Valid after stock exhaustion of 143846 $448.31
Location: 42 Prev | Next Part: 16100814 *Qty: 14 NUT $0.90
Location: 43 Prev | Next Part: 12601374 *Qty: 14 WASHER $0.90
Location: 44 Prev | Next Part: 153500 *Qty: 1 EXTENSION FOR OIL EXHAUST $12.46
Location: 45 Prev | Next Part: 13415400 *Qty: 1 OIL DEFLECTOR DISC FOR VENT $0.90
Location: 46 Prev | Next Part: 13414691 *Qty: 1 OIL BREATHER $8.23
Location: 47 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $5.94
Location: 48 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 49 Prev | Next Part: 144014 *Qty: 1 COMPLETE OIL LEVEL ROD Call
Location: 50 Prev | Next Part: 12575915 *Qty: 2 NUT $0.90
Location: 51 Prev | Next Part: 10520221 *Qty: 4 WASHER $2.30
Location: 52 Prev | Next Part: 132268 *Qty: 2 UPPER SPACER Call
Location: 53 Prev | Next Part: 132269 *Qty: 2 LOWER SPACER Call
Location: 54 Prev | Next Part: 159423 *Qty: 2 WICK BODY $182.58
Location: 55 Prev | Next Part: 15970634 *Qty: 8 SCREW $0.90
Location: 56 Prev | Next Part: 127497 *Qty: 8 WASHER $0.90
Location: 57 Prev | Next Part: 14496609 *Qty: 8 WASHER $0.90
Location: 58 Prev | Next Part: 15981634 *Qty: 2 SCREW $3.86
Location: 59 Prev | Next Part: 10261060 *Qty: 4 GASKET $0.90
Location: 60 Prev | Next Part: 10185011 *Qty: 2 UNION $43.07
Location: 61 Prev | Next Part: 156133 *Qty: 1 OIL DELIVERY TUBE TO RADIATOR $297.42
Location: 62 Prev | Next Part: 156134 *Qty: 1 OIL RETURN TUBE FROM RADIATOR $1,464.19
Location: 63 Prev | Next Part: 10185011 *Qty: 2 UNION $43.07
Location: 64 Prev | Next Part: 10261060 *Qty: 4 GASKET $0.90
Location: 65 Prev | Next Part: 154696 *Qty: 1 OIL RADIATOR $1,148.11
Location: 66 Prev | Next Part: 156132 *Qty: 1 AIR CONVEYOR $260.20
Location: 67 Prev | Next Part: 158276 *Qty: 2 GASKET $5.15
Location: 68 Prev | Next Part: 102947 *Qty: 3 FIXING PAD $18.79
Location: 69 Prev | Next Part: 13832101 *Qty: 6 NUT $0.90
Location: 70 Prev | Next Part: 156131 *Qty: 1 L.H. BRACKET $9.99
Location: 71 Prev | Next Part: 156130 *Qty: 1 R.H. BRACKET $13.06

* Quantity shown indicates the number of pieces used in the diagram.
