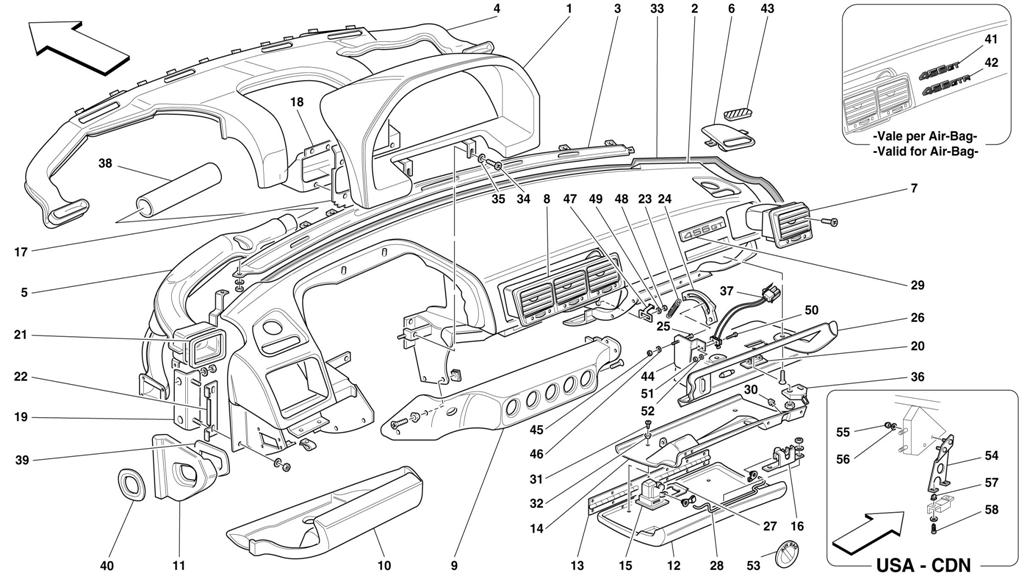

DASHBOARD

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 64059500 *Qty: 1 LOCKSET Call
Location: 1 Prev | Next Part: 642547.. *Qty: 1 UPHOLSTERED DASH BOARD -Valid till Ass. Nr. 21616 -Valid for GD Call
Location: 1 Prev | Next Part: 650536.. *Qty: 1 UPHOLSTERED DASH BOARD -Valid from Ass. Nr. 21617 -Valid for GD Call
Location: 1 Prev | Next Part: 631709.. *Qty: 1 UPHOLSTERED DASH BOARD -Not for GD -Valid till Ass. Nr. 21616 Call
Location: 1 Prev | Next Part: 653499.. *Qty: 1 UPHOLSTERED DASH BOARD -Not for GD -Valid from Ass. Nr. 21617 Call
Location: 1 Prev | Next Part: 658448.. *Qty: 1 LINING -Valid from Ass. Nr. 21617 -Not for GD Call
Location: 1 Prev | Next Part: 640609.. *Qty: 1 LINING -Valid till Ass. Nr. 21616 -Valid for GD Call
Location: 2 Prev | Next Part: 631692.. *Qty: 1 UPHOLSTERED INSTRUMENT PANEL -Valid till Ass. Nr. 21616 -Not for USA, CDN and GD Call
Location: 2 Prev | Next Part: 645113.. *Qty: 1 UPHOLSTERED INSTRUMENT PANEL -Substitutes 647207.. -Valid till Ass. Nr. 21616 -Valid for USA and Call
Location: 2 Prev | Next Part: 653501.. *Qty: 1 UPHOLSTERED INSTRUMENT PANEL -Valid from Ass. Nr. 21617 -Not for GD Call
Location: 2 Prev | Next Part: 647207.. *Qty: 1 UPHOLSTERED INSTRUMENT PANEL -Valid for USA and CDN -Not as spare part now -Replaced by 645113.. Call
Location: 2 Prev | Next Part: 648483.. *Qty: 1 LINING -Valid till Ass. Nr. 21616 -Not for USA, CDN and GD Call
Location: 2 Prev | Next Part: 648484.. *Qty: 1 LINING -Valid till Ass. Nr. 21616 -Valid for USA and CDN Call
Location: 2 Prev | Next Part: 658449.. *Qty: 1 LINING -Valid from Ass. Nr. 21617 -Not for GD Call
Location: 2 Prev | Next Part: 648485.. *Qty: 1 LINING -Valid till Ass. Nr. 21616 -Valid for GD Call
Location: 2 Prev | Next Part: 658834.. *Qty: 1 LINING -Valid from Ass. Nr. 21617 -Valid for GD Call
Location: 2 Prev | Next Part: 640818.. *Qty: 1 UPHOLSTERED INSTRUMENT PANEL -Valid from Ass. Nr. 21617 -Valid for GD Call
Location: 2 Prev | Next Part: 642479.. *Qty: 1 UPHOLSTERED INSTRUMENT PANEL -Valid till Ass. Nr. 21616 -Valid for GD Call
Location: 3 Prev | Next Part: 63202100 *Qty: 1 LOWER ENCLOSURE Call
Location: 4 Prev | Next Part: 64254500 *Qty: 1 AIR DIFFUSER -Valid for GD $886.56
Location: 4 Prev | Next Part: 63201700 *Qty: 1 AIR DIFFUSER -Not for GD $2,015.08
Location: 5 Prev | Next Part: 63202800 *Qty: 1 R.H. AIR DUCTING -Not for GD Call
Location: 5 Prev | Next Part: 63202900 *Qty: 1 L.H. AIR DUCTING -Not for GD $384.12
Location: 5 Prev | Next Part: 64254600 *Qty: 1 AIR DUCTING TO CENTRAL DIFFUSER -Valid for GD $240.27
Location: 5 Prev | Next Part: 64273500 *Qty: 1 L.H. AIR DUCTING -Valid for GD $197.55
Location: 5 Prev | Next Part: 64273900 *Qty: 1 AIR DUCTING TO R.H. SIDE DIFFUSER -Valid for GD Call
Location: 6 Prev | Next Part: 63204200 *Qty: 1 R.H. PLATE FOR TWEETER LOUD-SPEAKER AND AIR OPENING $111.87
Location: 6 Prev | Next Part: 63204300 *Qty: 1 L.H. PLATE FOR TWEETER LOUD-SPEAKER AND AIR OPENING $111.87
Location: 7 Prev | Next Part: 63204500 *Qty: 2 AIR SIDE DIFFUSER $87.73
Location: 8 Prev | Next Part: 63204400 *Qty: 1 AIR CENTRAL DIFFUSER $888.82
Location: 9 Prev | Next Part: 642506.. *Qty: 1 UPHOLSTERED INSTRUMENT CENTRAL PANEL -Valid for GD Call
Location: 9 Prev | Next Part: 653528.. *Qty: 1 UPHOLSTERED INSTRUMENT CENTRAL PANEL -Valid from Ass. Nr. 21617 -Not for GD Call
Location: 9 Prev | Next Part: 631738.. *Qty: 1 UPHOLSTERED INSTRUMENT CENTRAL PANEL -Valid till Ass. Nr. 21616 -Not for GD Call
Location: 9 Prev | Next Part: 658835.. *Qty: 1 LINING -Valid from Ass. Nr. 21617 -Not for GD Call
Location: 9 Prev | Next Part: 648492.. *Qty: 1 LINING -Valid till Ass. Nr. 21616 -Not for GD Call
Location: 9 Prev | Next Part: 648493.. *Qty: 1 LINING -Valid for GD Call
Location: 10 Prev | Next Part: 642501.. *Qty: 1 R.H. UPHOLSTERED LOWER PART -Valid till Ass. Nr. 21616 -Valid for GD Call
Location: 10 Prev | Next Part: 650541.. *Qty: 1 R.H. UPHOLSTERED LOWER PART -Valid from Ass. Nr. 21617 -Valid for GD Call
Location: 10 Prev | Next Part: 631719.. *Qty: 1 L.H. UPHOLSTERED LOWER PART -Not for USA, CDN and GD Call
Location: 10 Prev | Next Part: 643778.. *Qty: 1 L.H. UPHOLSTERED LOWER PART -Valid for USA and CDN Call
Location: 10 Prev | Next Part: 640607.. *Qty: 1 LINING -Not for GD Call
Location: 10 Prev | Next Part: 658836.. *Qty: 1 LINING -Valid from Ass. Nr. 21617 -Valid for GD Call
Location: 10 Prev | Next Part: 648494.. *Qty: 1 LINING -Valid till Ass. Nr. 21616 -Valid for GD Call
Location: 11 Prev | Next Part: 648496.. *Qty: 1 R.H. LINING -Not for GD Call
Location: 11 Prev | Next Part: 648497.. *Qty: 1 L.H. LINING -Valid for GD Call
Location: 11 Prev | Next Part: 648498.. *Qty: 1 R.H. LINING -Valid for GD Call
Location: 11 Prev | Next Part: 643235.. *Qty: 1 UPHOLSTERED R.H. LATERAL INSTRUMENT PANEL SEAL -Valid for GD Call
Location: 11 Prev | Next Part: 643237.. *Qty: 1 UPHOLSTERED L.H. LATERAL INSTRUMENT PANEL SEAL -Valid for GD Call
Location: 11 Prev | Next Part: 631726.. *Qty: 1 UPHOLSTERED R.H. LATERAL INSTRUMENT PANEL SEAL -Not for GD Call
Location: 11 Prev | Next Part: 631727.. *Qty: 1 UPHOLSTERED L.H. LATERAL INSTRUMENT PANEL SEAL -Not for GD Call
Location: 11 Prev | Next Part: 648495.. *Qty: 1 L.H. LINING -Not for GD Call
Location: 12 Prev | Next Part: 642512.. *Qty: 1 INSTRUMENT PANEL SET HOLDER -Valid for GD Call
Location: 12 Prev | Next Part: 648499.. *Qty: 1 LINING -Valid for GD Call
Location: 12 Prev | Next Part: 631741.. *Qty: 1 INSTRUMENT PANEL SET HOLDER -Not for GD Call
Location: 12 Prev | Next Part: 640608.. *Qty: 1 LINING -Not for GD- Call
Location: 13 Prev | Next Part: 63726100 *Qty: 1 LID HINGE $91.37
Location: 14 Prev | Next Part: 64254400 *Qty: 1 INNER LID COVER -Valid for GD- Call
Location: 14 Prev | Next Part: 63174200 *Qty: 1 INNER LID COVER -Not for GD- $650.09
Location: 15 Prev | Next Part: 63768700 *Qty: 1 SWITCH $172.13
Location: 16 Prev | Next Part: 63768800 *Qty: 1 LID LOCK $494.01
Location: 17 Prev | Next Part: 63204600 *Qty: 1 BRACKET FOR CENTRAL AIR DIFFUSION FIXING $122.02
Location: 18 Prev | Next Part: 63204700 *Qty: 1 CENTRAL UNION $79.05
Location: 19 Prev | Next Part: 63169700 *Qty: 1 L.H. BRACKET FOR INSTRUMENTAL PANEL FIXING -Valid for GD Call
Location: 19 Prev | Next Part: 63899800 *Qty: 1 R.H. BRACKET FOR INSTRUMENTAL PANEL FIXING -Not for GD $42.83
Location: 19 Prev | Next Part: 63899900 *Qty: 1 L.H. BRACKET FOR INSTRUMENTAL PANEL FIXING -Not for GD $42.83
Location: 19 Prev | Next Part: 63714300 *Qty: 1 R.H. BRACKET FOR INSTRUMENTAL PANEL FIXING -Valid for GD $92.16
Location: 20 Prev | Next Part: 139517 *Qty: 1 DOME LAMP $16.31
Location: 21 Prev | Next Part: 63203200 *Qty: 2 GASKET $46.08
Location: 22 Prev | Next Part: 63725900 *Qty: 2 PLATE $11.63
Location: 23 Prev | Next Part: 63876700 *Qty: 1 SPRING $6.59
Location: 24 Prev | Next Part: 63765700 *Qty: 1 LEVER $15.92
Location: 25 Prev | Next Part: 63766100 *Qty: 1 PIN Call
Location: 26 Prev | Next Part: 63726000 *Qty: 1 DRAWER $830.55
Location: 27 Prev | Next Part: 63768900 *Qty: 1 PLATE $1.61
Location: 28 Prev | Next Part: 63769100 *Qty: 1 TIE ROD -Not for GD- $20.19
Location: 28 Prev | Next Part: 64324600 *Qty: 1 TIE ROD -Valid for GD- Call
Location: 29 Prev | Next Part: 63863500 *Qty: 1 PLATE "456 GT" -Valid for car without Air-Bag $59.30
Location: 30 Prev | Next Part: 62773800 *Qty: 2 RUBBER Call
Location: 31 Prev | Next Part: 13299411 *Qty: 3 SCREW $0.90
Location: 32 Prev | Next Part: 64210600 *Qty: 2 WASHER Call
Location: 33 Prev | Next Part: 65643800 *Qty: 1 FELT $6.47
Location: 34 Prev | Next Part: 13273811 *Qty: 2 SCREW $0.90
Location: 35 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 36 Prev | Next Part: 63884200 *Qty: 1 INSTRUMENTS PANEL DOOR CLOSING STRIKER $296.28
Location: 37 Prev | Next Part: 173939 *Qty: 1 MICRO-SWITCH WITH CABLE $44.74
Location: 38 Prev | Next Part: 64273800 *Qty: 1 R.H. SLEEVE -Valid for GD- $65.79
Location: 38 Prev | Next Part: 64274100 *Qty: 1 L.H. SLEEVE -Valid for GD- $65.83
Location: 38 Prev | Next Part: 63219600 *Qty: 1 R.H. SLEEVE -Not for GD- $44.11
Location: 38 Prev | Next Part: 63219700 *Qty: 1 L.H. SLEEVE -Not for GD- $44.72
Location: 39 Prev | Next Part: 63203300 *Qty: 2 GASKET Call
Location: 40 Prev | Next Part: 63203500 *Qty: 2 GASKET $17.43
Location: 41 Prev | Next Part: 65201900 *Qty: 1 456 GT PLATE -Valid for Air-Bag cars $33.55
Location: 42 Prev | Next Part: 65194000 *Qty: 1 456 GTA PLATE -Valid for 456 GTA $7.89
Location: 43 Prev | Next Part: 63204000 *Qty: 1 R.H. UPPER AIR DIFFUSER $6.59
Location: 43 Prev | Next Part: 63204100 *Qty: 1 L.H. UPPER AIR DIFFUSER $6.59
Location: 44 Prev | Next Part: 63765800 *Qty: 1 BRACKET $98.77
Location: 45 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 46 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 63878000 *Qty: 1 SPRING ADJUSTING BRACKET $39.51
Location: 48 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 49 Prev | Next Part: 12638124 *Qty: 1 WASHER $0.90
Location: 50 Prev | Next Part: 61524100 *Qty: 2 SCREW $3.27
Location: 51 Prev | Next Part: 61524300 *Qty: 2 NUT $0.90
Location: 52 Prev | Next Part: 61524200 *Qty: 4 WASHER $0.90
Location: 53 Prev | Next Part: 65142000 *Qty: 1 AIR-BAG/CHILDREN SEAT INCOMPATIBILY PLATE -Valid for Air-Bag cars $4.23
Location: 54 Prev | Next Part: 168961 *Qty: 1 OBDII CONNECTOR FIXING BRACKET -Valid for USA and CDN from Ass. Nr. 23214 Call
Location: 55 Prev | Next Part: 113647 *Qty: 2 NUT -Valid for USA and CDN from Ass. Nr. 23214 $0.90
Location: 56 Prev | Next Part: 12637824 *Qty: 2 WASHER -Valid for USA and CDN from Ass. Nr. 23214 $0.90
Location: 57 Prev | Next Part: 14202580 *Qty: 2 BLOCK -Valid for USA and CDN from Ass. Nr. 23214 $0.90
Location: 58 Prev | Next Part: 15688170 *Qty: 2 SCREW -Valid for USA and CDN from Ass. Nr. 23214 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
