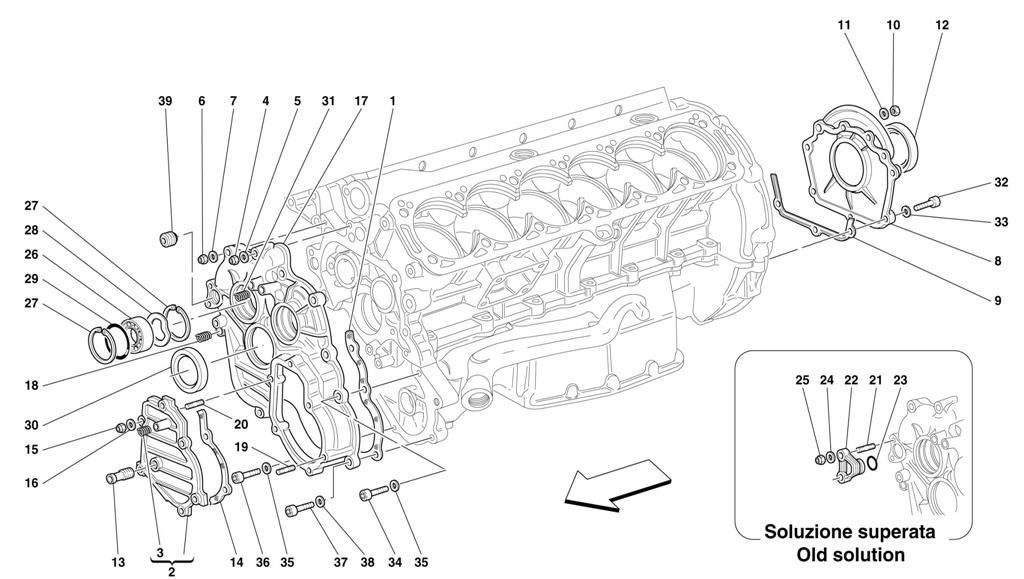

CRANKCASE - COVERS

Go to Split View

CRANKCASE - COVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154527 *Qty: 1 GASKET $54.20
Location: 2 Prev | Next Part: 154549 *Qty: 1 SMALL FRONT COVER (Nr. 5 fixages) Call
Location: 2 Prev | Next Part: 157120 *Qty: 1 SMALL FRONT COVER (Nr. 6 fixages) -For front cover 153212 $208.45
Location: 3 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.37
Location: 4 Prev | Next Part: 147985 *Qty: 7 NUT -From engine Nr. 36183 q.ty 4- $0.90
Location: 5 Prev | Next Part: 12601374 *Qty: 7 WASHER -From engine Nr. 36183 q.ty 4 $0.90
Location: 6 Prev | Next Part: 102741 *Qty: 6 NUT -From engine Nr. 36183 q.ty 3 $0.90
Location: 7 Prev | Next Part: 12601274 *Qty: 6 WASHER -From engine Nr. 36183 q.ty 3 $0.90
Location: 8 Prev | Next Part: 141343 *Qty: 1 REAR COVER $412.91
Location: 9 Prev | Next Part: 141291 *Qty: 1 GASKET $39.86
Location: 10 Prev | Next Part: 15896214 *Qty: 7 NUT -From engine Nr. 36183 q.ty 4- $0.90
Location: 11 Prev | Next Part: 12620479 *Qty: 7 WASHER -From engine Nr. 36183 q.ty 4 $0.90
Location: 12 Prev | Next Part: 200323 *Qty: 1 GASKET -Valid after stock exhaustion of 136527 $38.88
Location: 13 Prev | Next Part: 154525 *Qty: 1 UNION Call
Location: 14 Prev | Next Part: 154543 *Qty: 1 GASKET -For 5 fixages small cover- $26.15
Location: 14 Prev | Next Part: 157121 *Qty: 1 GASKET -For 6 fixages small cover $13.36
Location: 15 Prev | Next Part: 102741 *Qty: 6 NUT $0.90
Location: 16 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 17 Prev | Next Part: 178601 *Qty: 1 COMPLETO FRONT COVER (6 fixages small cover) -Valid from engine Nr. 39700, for USA from engine Nr Call
Location: 17 Prev | Next Part: 153212 *Qty: 1 COMPLETO FRONT COVER (6 fixages small cover) -Valid till engine Nr. 39699 -For USA till engine Nr $1,609.00
Location: 17 Prev | Next Part: 154528 *Qty: 1 FRONT COVER (5 fixages small cover) -Not as spare part -Replace by 157119 Call
Location: 17 Prev | Next Part: 157119 *Qty: 1 FRONT COVER (6 fixages small cover) -With the complete cover 153212 $1,107.88
Location: 17 Prev | Next Part: 159346 *Qty: 1 FRONT COVER (6 fixages small cover) -With the complete cover 178601 Call
Location: 18 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT -Not as spare part replaced by 13525470 $3.37
Location: 18 Prev | Next Part: 13525470 *Qty: 1 THREADED INSERT -Replace the 13525570 $0.90
Location: 19 Prev | Next Part: 13541024 *Qty: 5 STUD $0.90
Location: 20 Prev | Next Part: 13540824 *Qty: 1 STUD $0.90
Location: 21 Prev | Next Part: 13541024 *Qty: 2 STUD -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 38733 $0.90
Location: 22 Prev | Next Part: 151159 *Qty: 1 PLUG -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 38733 $36.73
Location: 23 Prev | Next Part: 109724 *Qty: 1 O.R. GASKET -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 3 $1.63
Location: 24 Prev | Next Part: 12601274 *Qty: 2 WASHER -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 38733 $0.90
Location: 25 Prev | Next Part: 102741 *Qty: 2 NUT -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 38733 $0.90
Location: 26 Prev | Next Part: 170787 *Qty: 2 BEARING -Valid after stock exhaustion of 144690 $139.00
Location: 27 Prev | Next Part: 11060576 *Qty: 4 FLEXIBLE RING $1.94
Location: 28 Prev | Next Part: 133377 *Qty: 2 WASHER $1.17
Location: 29 Prev | Next Part: 136140 *Qty: 2 O.R. GASKET $1.61
Location: 30 Prev | Next Part: 134714 *Qty: 1 GASKET $39.19
Location: 31 Prev | Next Part: 13525570 *Qty: 2 THREADED INSERT $3.37
Location: 32 Prev | Next Part: 14305424 *Qty: 3 SCREW -Valid from engine Nr. 36183- Superseded
Location: 33 Prev | Next Part: 12601374 *Qty: 3 WASHER -Valid from engine Nr. 36183 $0.90
Location: 34 Prev | Next Part: 14305424 *Qty: 2 SCREW -Valid from engine Nr. 36183- Superseded
Location: 35 Prev | Next Part: 12601374 *Qty: 4 WASHER -Valid from engine Nr. 36183 $0.90
Location: 36 Prev | Next Part: 14306024 *Qty: 2 SCREW -Valid from engine Nr. 36183- $3.05
Location: 37 Prev | Next Part: 14306524 *Qty: 2 SCREW -Valid from engine Nr. 36183- $0.90
Location: 38 Prev | Next Part: 11193874 *Qty: 2 WASHER -Valid from engine Nr. 36183 $0.90
Location: 39 Prev | Next Part: 163528 *Qty: 1 THREADED PLUG -Valid from engine Nr. 39700, for USA from engine Nr. 38754, for CH from engine Nr. $5.31

* Quantity shown indicates the number of pieces used in the diagram.
