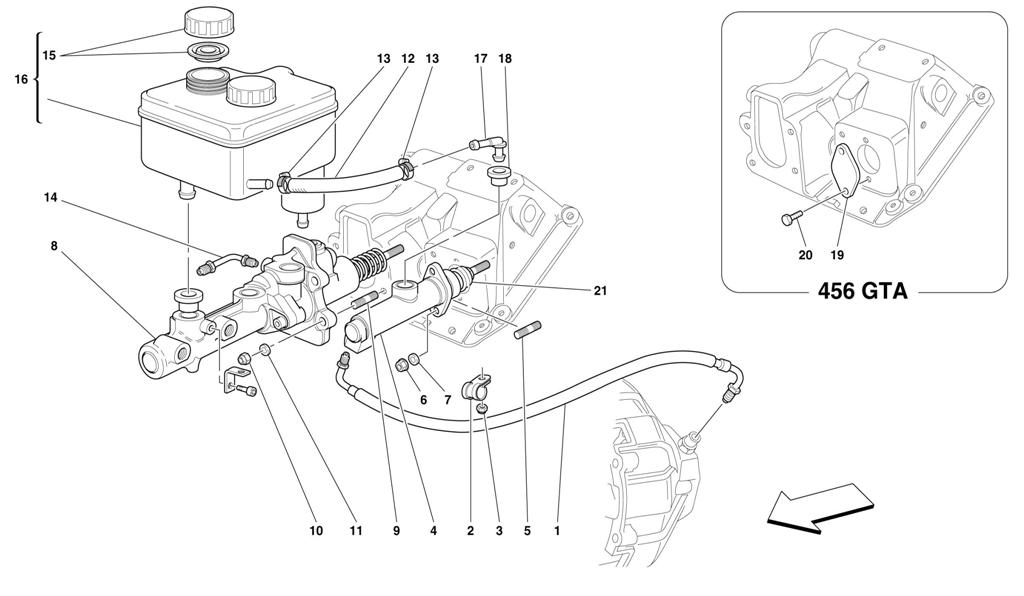

BRAKE AND CLUTCH HYDRAULIC SYSTEM -VALID FOR RHD

Go to Split View

BRAKE AND CLUTCH HYDRAULIC SYSTEM -VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 156119 *Qty: 1 CLUTCH CONTROL TUBE -Not for 456 GTA $261.09
Location: 2 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH -Not for 456 GTA $0.90
Location: 3 Prev | Next Part: 102948 *Qty: 1 NUT -Not for 456 GTA $0.90
Location: 4 Prev | Next Part: 175211 *Qty: 1 CLUTCH PUMP -Valid after stock exhaustion of 123416 -Not for 456 GTA $343.68
Location: 5 Prev | Next Part: 13516724 *Qty: 2 STUD -Not for 456 GTA Call
Location: 6 Prev | Next Part: 133215 *Qty: 2 NUT -Not for 456 GTA $3.75
Location: 7 Prev | Next Part: 12601374 *Qty: 2 WASHER -Not for 456 GTA $0.90
Location: 8 Prev | Next Part: 152075 *Qty: 1 BRAKE BOOSTER WITH SMALL TANK $2,743.91
Location: 9 Prev | Next Part: 13543624 *Qty: 4 STUD $0.90
Location: 10 Prev | Next Part: 147985 *Qty: 4 NUT $0.90
Location: 11 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 105857 *Qty: 1 RUBBER PIPE -Not for 456 GTA $6.35
Location: 13 Prev | Next Part: 157934 *Qty: 2 SCREW COLLAR -Not for 456 GTA Superseded
Location: 14 Prev | Next Part: 157753 *Qty: 1 HOSE FROM PUMP TO BRAKE $13.92
Location: 15 Prev | Next Part: 153176 *Qty: 2 COMPLETE PLUG $88.40
Location: 16 Prev | Next Part: 153175 *Qty: 1 COMPLETEPAN FOR BRAKE LIQUID $3,379.65
Location: 17 Prev | Next Part: 184497 *Qty: 1 UNION -Valid for pump 175211 -Not for 456 GTA $43.24
Location: 18 Prev | Next Part: 175189 *Qty: 1 RUBBER -Valid for pump 175211 -Not for 456 GTA $24.73
Location: 19 Prev | Next Part: 163651 *Qty: 1 FLANGE -Valid for 456 GTA $84.32
Location: 20 Prev | Next Part: 16043021 *Qty: 2 SCREW -Valid for 456 GTA $0.90
Location: 21 Prev | Next Part: 175212 *Qty: 1 PROTECTION BOOT -Not for 456 GTA $33.66

* Quantity shown indicates the number of pieces used in the diagram.
