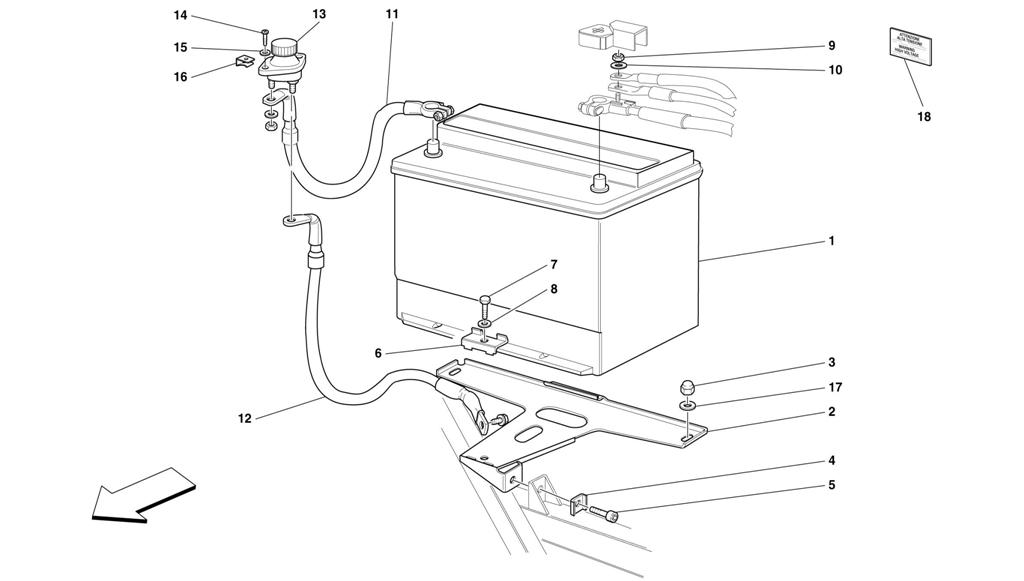

BATTERY

Go to Split View

BATTERY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 156575 *Qty: 1 BATTERY 12V-70AH 420A -Valid for GD Call
Location: 1 Prev | Next Part: 157496 *Qty: 1 BATTERY 12V-70AH 400A -Not for GD Call
Location: 1 Prev | Next Part: 188066 *Qty: 1 BATTERY 12V-70AH 420A -Not for GD -As an alternative Call
Location: 2 Prev | Next Part: 154320 *Qty: 1 PLATE FOR BATTERY SUPPORT -Not for GD $157.32
Location: 2 Prev | Next Part: 159487 *Qty: 1 PLATE FOR BATTERY SUPPORT -Valid for GD $157.32
Location: 3 Prev | Next Part: 14053811 *Qty: 2 CAP NUT $2.14
Location: 4 Prev | Next Part: 155599 *Qty: 1 BRACKET $2.95
Location: 5 Prev | Next Part: 14306224 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 154324 *Qty: 1 MOBILE BRACKET $61.57
Location: 7 Prev | Next Part: 16043724 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 14499404 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 10 Prev | Next Part: 10519624 *Qty: 1 WASHER $0.90
Location: 11 Prev | Next Part: 153117 *Qty: 1 COPPER PLAIT FROM BATTERY TO SWITCH $146.99
Location: 12 Prev | Next Part: 153128 *Qty: 1 COPPER PLAIT FROM SWITCH TO EARTH $179.75
Location: 13 Prev | Next Part: 139607 *Qty: 1 CUT-OUT SWITCH Call
Location: 14 Prev | Next Part: 15688275 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 12637806 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 61067800 *Qty: 2 BRACKET $0.90
Location: 17 Prev | Next Part: 12646724 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 113404 *Qty: 1 WARNING HIGH VOLTAGE PLATE $0.90

* Quantity shown indicates the number of pieces used in the diagram.
