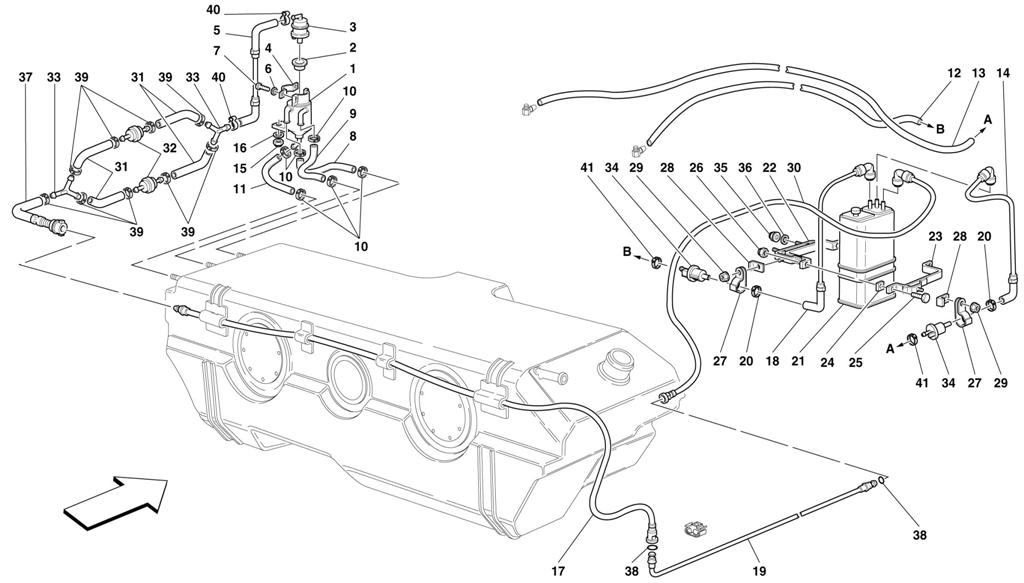

ANTIEVAP. DEVICE -VALID FOR USA, CDN AND AUS FROM CAR ASS. NR. 26913-

Go to Split View

ANTIEVAP. DEVICE -VALID FOR USA, CDN AND AUS FROM CAR ASS. NR. 26913-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155407 *Qty: 1 DISAREATOR $307.71
Location: 2 Prev | Next Part: 155313 *Qty: 1 SEAL RING $53.48
Location: 3 Prev | Next Part: 124193 *Qty: 1 ANTI FLOWING BACK VALVE Call
Location: 4 Prev | Next Part: 155405 *Qty: 1 BRACKET $30.14
Location: 5 Prev | Next Part: 174945 *Qty: 1 PIPE FROM ANTI-FLOWING BACK VALVE TO VENTILATION VALVE $114.47
Location: 6 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.02
Location: 7 Prev | Next Part: 13273911 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 116764 *Qty: 1 FRONT PIPE FROM FUEL TANK TO DISAERATOR $4.77
Location: 9 Prev | Next Part: 116767 *Qty: 1 CENTRAL PIPE FROM FUEL TANK TO DISAERATOR $5.40
Location: 10 Prev | Next Part: 13000190 *Qty: 6 SCREW COLLAR $0.90
Location: 11 Prev | Next Part: 114880 *Qty: 1 REAR PIPE FROM FUEL TANK TO DISAERATOR $7.65
Location: 12 Prev | Next Part: 114888 *Qty: 1 PIPE FROM R.H. UNION TO ANTIEVAPORATION VALVE $28.10
Location: 13 Prev | Next Part: 116774 *Qty: 1 PIPE FROM L.H. UNION TO ANTIEVAPORATION VALVE $22.22
Location: 14 Prev | Next Part: 174786 *Qty: 1 PIPE FROM VAPOR FILTER TO OUTER VALVE $190.73
Location: 15 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 16 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 17 Prev | Next Part: 174947 *Qty: 1 PIPE FROM VALVE TO INTERMEDIATE PIPE $109.03
Location: 18 Prev | Next Part: 174787 *Qty: 1 PIPE FROM VAPOR FILTER TO REAR VALVE $179.98
Location: 19 Prev | Next Part: 155763 *Qty: 1 INTERMEDIATE PIPE $77.40
Location: 20 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 21 Prev | Next Part: 174782 *Qty: 1 FUEL VAPOR FILTER $552.23
Location: 22 Prev | Next Part: 156452 *Qty: 1 FRAME FASTENING FILTER $33.90
Location: 23 Prev | Next Part: 138496 *Qty: 1 COMPLETE BRACKET $39.24
Location: 24 Prev | Next Part: 143587 *Qty: 2 PLATE $6.75
Location: 25 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: 164437 *Qty: 2 FIXING BRACKET $3.74
Location: 28 Prev | Next Part: 137716 *Qty: 2 PLATE $25.00
Location: 29 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: 179176 *Qty: 1 PIPE CONNECTING INTERMEDIATE PIPE TO VAPOR FILTER $138.34
Location: 31 Prev | Next Part: 116761 *Qty: 4 RUBBER HOSE $3.06
Location: 32 Prev | Next Part: 174594 *Qty: 2 TANK VENTILATION VALVE $13.63
Location: 33 Prev | Next Part: 105495 *Qty: 2 UNION $2.04
Location: 34 Prev | Next Part: 162412 *Qty: 2 ANTI-EVAPORATION VALVE $45.16
Location: 35 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 37 Prev | Next Part: 175610 *Qty: 1 UNION WITH SLEEVE $57.09
Location: 38 Prev | Next Part: 133956 *Qty: 4 O.R. GASKET $1.18
Location: 39 Prev | Next Part: 13434670 *Qty: 9 COLLAR Call
Location: 40 Prev | Next Part: 13434670 *Qty: 2 COLLAR Call
Location: 41 Prev | Next Part: 157934 *Qty: 2 SCREW COLLAR Superseded

* Quantity shown indicates the number of pieces used in the diagram.
