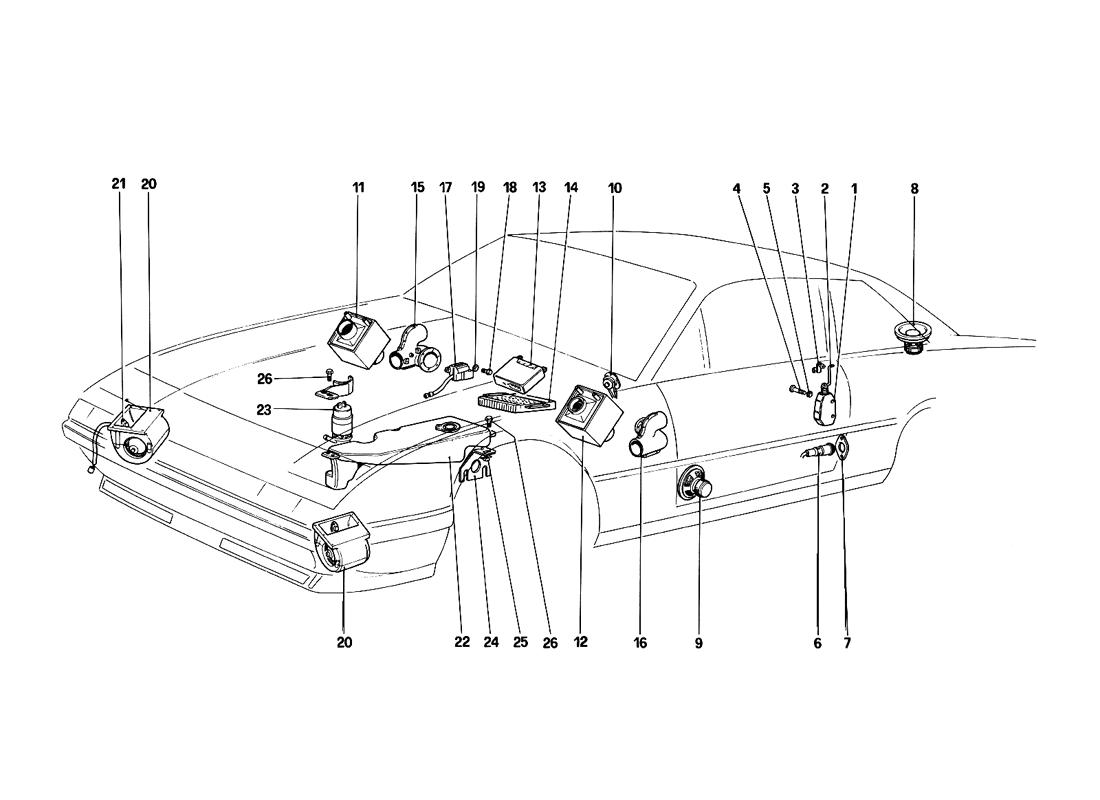

VENTILATION FANS, HEATING, WINDSHIELD WASHER AND RADIO

Go to Split View

VENTILATION FANS, HEATING, WINDSHIELD WASHER AND RADIO

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61329400 *Qty: 1 L.H. door locking device Call
Location: 1 Prev | Next Part: 61329500 *Qty: 1 R.H. door locking device Call
Location: 2 Prev | Next Part: 61328600 *Qty: 1 Left tie rod $2.80
Location: 2 Prev | Next Part: 61328500 *Qty: 1 Right tie rod $2.46
Location: 3 Prev | Next Part: 40063208 *Qty: 2 Spring Call
Location: 3 Prev | Next Part: 116963 *Qty: 2 Spring $10.74
Location: 4 Prev | Next Part: 15688101 *Qty: 6 Screw $0.90
Location: 5 Prev | Next Part: 10519301 *Qty: 6 Washer $0.90
Location: 6 Prev | Next Part: 102248 *Qty: 2 Door light Superseded
Location: 7 Prev | Next Part: 102249 *Qty: 2 Rim for door light $1.32
Location: 8 Prev | Next Part: 61717800 *Qty: 2 Rear loud speakers $123.97
Location: 9 Prev | Next Part: 127094 *Qty: 2 Loud speakers mid -range Call
Location: 10 Prev | Next Part: 127296 *Qty: 2 Loud speakers tweeter Superseded
Location: 11 Prev | Next Part: 127368 *Qty: 1 Right heater $471.60
Location: 12 Prev | Next Part: 127369 *Qty: 1 Left heater $471.60
Location: 13 Prev | Next Part: 129392 *Qty: 1 Radio
For D
Call
Location: 13 Prev | Next Part: 127086 *Qty: 1 Radio -
Not for D
Call
Location: 14 Prev | Next Part: 127539 *Qty: 1 Radio amplifier Call
Location: 15 Prev | Next Part: 127373 *Qty: 1 Right air deviating device $160.62
Location: 16 Prev | Next Part: 127374 *Qty: 1 Left air deviating device $229.17
Location: 17 Prev | Next Part: 61790000 *Qty: 2 Deviating device motor $205.00
Location: 18 Prev | Next Part: 15901508 *Qty: 4 Screw $0.90
Location: 19 Prev | Next Part: 12639907 *Qty: 4 Washer $0.90
Location: 20 Prev | Next Part: 61738700 *Qty: 2 Electric fan Superseded
Location: 21 Prev | Next Part: 126854 *Qty: 2 Transistor $246.62
Location: 22 Prev | Next Part: 128017 *Qty: 1 Water reservoir $367.72
Location: 23 Prev | Next Part: 61535400 *Qty: 1 Pump for windshield wiper $226.30
Location: 24 Prev | Next Part: 129205 *Qty: 1 Bracket $98.59
Location: 25 Prev | Next Part: 60659100 *Qty: 1 Nut Superseded
Location: 26 Prev | Next Part: 14778818 *Qty: 3 Screw Call

* Quantity shown indicates the number of pieces used in the diagram.
