TOOL-KIT

Go to Split View

TOOL-KIT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 123254 *Qty: 1 Box. containing: Call
Location: 2 Prev | Next Part: 101514 *Qty: 1 Set of spanners
Not supplied as spare parts but only with unit no. 123254
Call
Location: 3 Prev | Next Part: 101516 *Qty: 1 Screwdriver. 1 50 mm.
Not supplied as spare parts but only with unit no. 123255
Call
Location: 4 Prev | Next Part: 101517 *Qty: 1 Screwdriver. 120 mm.
Not supplied as spare parts but only with unit no. 123256
Call
Location: 5 Prev | Next Part: 101518 *Qty: 1 Philips screwdriver up to 04 mm.
Not supplied as spare parts but only with unit no. 123257
Call
Location: 6 Prev | Next Part: 101519 *Qty: 1 Philips screwdriver up to 0 5 to 9mm.
Not supplied as spare parts but only with unit no. 123258
Call
Location: 7 Prev | Next Part: 101515 *Qty: 1 fliers. 180 mm.
Not supplied as spare parts but only with unit no. 123259
Call
Location: 8 Prev | Next Part: 119492 *Qty: 2 Sparking plugs - CHAMPION N 6 - GY Superseded
Location: 9 Prev | Next Part: 110733 *Qty: 1 Bag. black imitation leather containing first aid tools: $369.01
Location: 10 Prev | Next Part: 129194 *Qty: 1 Bulb and fuses box. complete
Only for F
Call
Location: 10 Prev | Next Part: 130111 *Qty: 1 Bulb and fuses box. complete
Not for F
Call
Location: 11 Prev | Next Part: 100519 *Qty: 1 Spanner for spark plug Call
Location: 12 Prev | Next Part: 100521 *Qty: 1 Spanner for filter $77.27
Location: 13 Prev | Next Part: 106530 *Qty: 1 Jack. tipe 232 F Superseded
Location: 14 Prev | Next Part: 106531 *Qty: 1 Socket spanner for jack Call
Location: 15 Prev | Next Part: 106532 *Qty: 1 Ratchet spanner. zinc plated $9.60
Location: 16 Prev | Next Part: 105974 *Qty: 1 Warning device Call
Location: 17 Prev | Next Part: 106877 *Qty: 1 Spanner for wheels Superseded
Location: 18 Prev | Next Part: 100516 *Qty: 2 Control belt for hydraulic steering pump $37.51
Location: 19 Prev | Next Part: 108981 *Qty: 1 Driving belt for lower generator $48.41
Location: 20 Prev | Next Part: 111285 *Qty: 1 Driving belt for upper generator $47.82

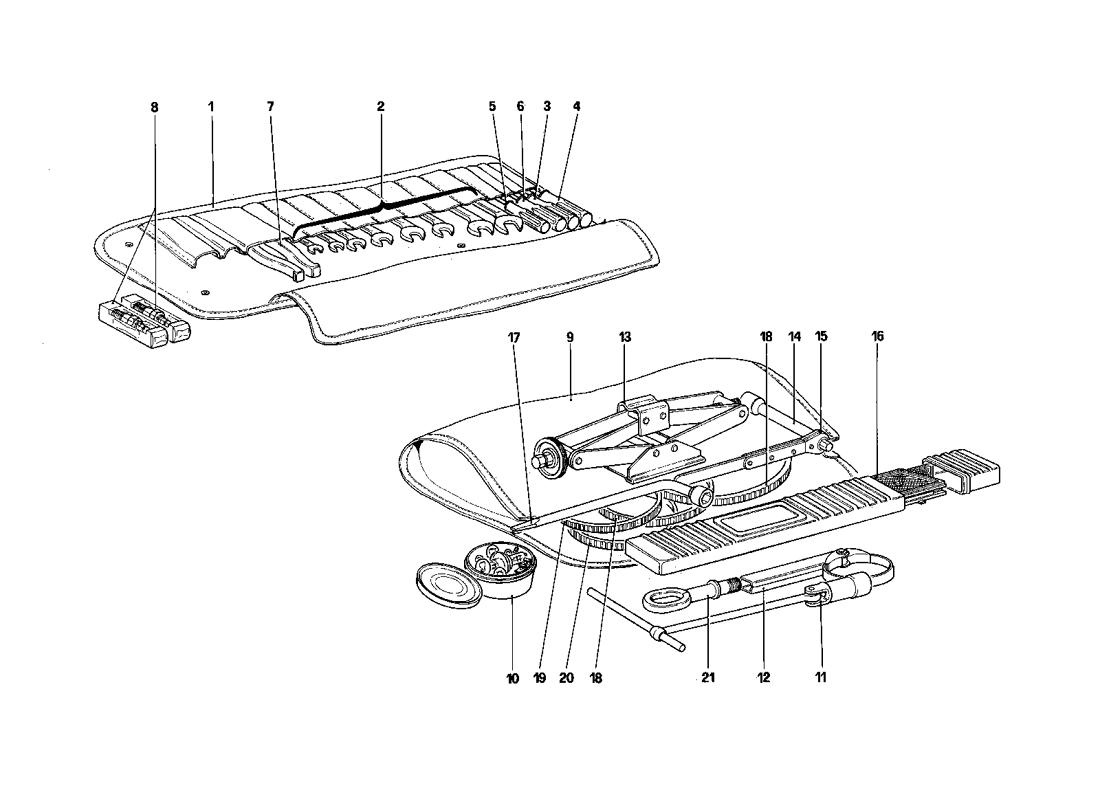

* Quantity shown indicates the number of pieces used in the diagram.
