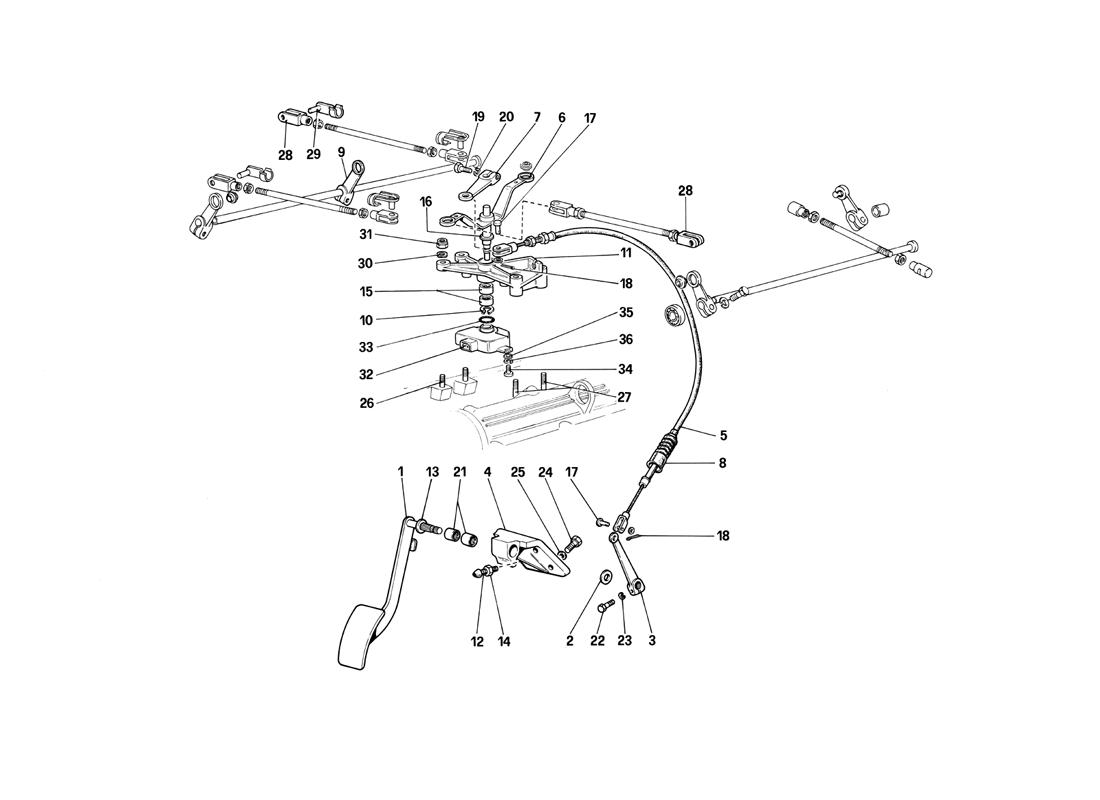

THROTTLES CONTROLS RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 102348 *Qty: 1 Accelerator pedal $316.96
Location: 2 Prev | Next Part: 102354 *Qty: 1 Spacer $45.04
Location: 3 Prev | Next Part: 102352 *Qty: 1 Lever $235.44
Location: 4 Prev | Next Part: 103614 *Qty: 1 Support for accelerator pedal $177.95
Location: 5 Prev | Next Part: 116004 *Qty: 1 Flexible. accelerator control $53.20
Location: 6 Prev | Next Part: 127938 *Qty: 1 Lever $400.71
Location: 7 Prev | Next Part: 103615 *Qty: 1 Lever for flexible $117.06
Location: 8 Prev | Next Part: 103240 *Qty: 1 Bellows for flexible $30.11
Location: 9 Prev | Next Part: 102087 *Qty: 2 Lever $153.95
Location: 10 Prev | Next Part: 104182 *Qty: 1 Seeger ring $1.06
Location: 11 Prev | Next Part: 127937 *Qty: 1 Support $496.94
Location: 12 Prev | Next Part: 100640 *Qty: 1 Pedal adjusting screw $7.47
Location: 13 Prev | Next Part: 100649 *Qty: 1 Washer Call
Location: 14 Prev | Next Part: 16100811 *Qty: 1 Locknut Superseded
Location: 15 Prev | Next Part: 101677 *Qty: 2 Roller cage $2.43
Location: 16 Prev | Next Part: 121835 *Qty: 1 Washer $1.68
Location: 17 Prev | Next Part: 104887 *Qty: 2 Pin $23.33
Location: 18 Prev | Next Part: 10734101 *Qty: 2 Split pin $0.90
Location: 19 Prev | Next Part: 16043421 *Qty: 1 Bolt Superseded
Location: 20 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 21 Prev | Next Part: 101677 *Qty: 2 Roller cage $2.43
Location: 22 Prev | Next Part: 10902421 *Qty: 1 Bolt Superseded
Location: 23 Prev | Next Part: 127496 *Qty: 1 Washer $0.90
Location: 24 Prev | Next Part: 16043421 *Qty: 4 Bolt Superseded
Location: 25 Prev | Next Part: 127496 *Qty: 4 Washer $0.90
Location: 26 Prev | Next Part: 11500521 *Qty: 2 Stud $2.54
Location: 27 Prev | Next Part: 11501421 *Qty: 2 Stud $0.90
Location: 28 Prev | Next Part: 100655 *Qty: 2 Long fork $140.78
Location: 29 Prev | Next Part: 100656 *Qty: 2 Pin with clip $2.72
Location: 30 Prev | Next Part: 12601271 *Qty: 4 Washer Superseded
Location: 31 Prev | Next Part: 101239 *Qty: 4 Self locking nut $1.78
Location: 32 Prev | Next Part: 128019 *Qty: 1 Microswitch Call
Location: 33 Prev | Next Part: 116736 *Qty: 1 Sealing ring $1.06
Location: 34 Prev | Next Part: 10444621 *Qty: 2 Screw $0.90
Location: 35 Prev | Next Part: 10519201 *Qty: 2 Washer Superseded
Location: 36 Prev | Next Part: 106848 *Qty: 2 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
