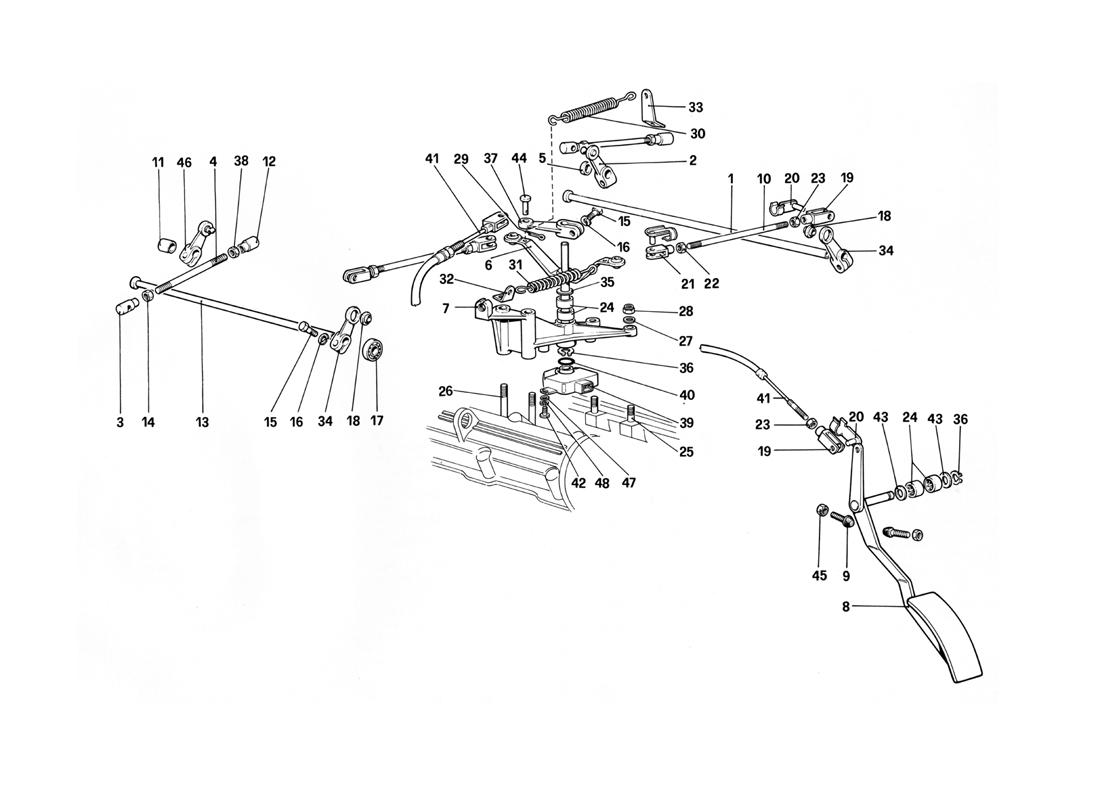

THROTTLES CONTROLS LHD

THROTTLES CONTROLS LHD

Location Part # Quantity* Description Price Add To Cart
1 113971 1 Spindle on R.H. cover $188.59
2 113658 1 Lever and pin on R.H. head shaft $103.45
3 105617 2 Head for ball joint Superseded
4 113659 2 Tie rod $10.25
5 114051 1 Spacer for R.H. spindle $4.85
6 127024 1 Lever $475.85
7 127023 1 Support $239.24
8 108755 1 Accelerator pedal $229.88
9 100640 2 Adjusting screw $9.87
10 110109 2 Tie rod $115.41
11 114052 1 Spacer for L.H. spindle $5.16
12 105619 2 Head for ball joint (L.H. thread) $137.29
13 113970 1 Spindle on L.H. cover $188.59
14 15896411 2 Nut Superseded
15 16043421 5 Bolt. securing lever Superseded
16 106852 5 Washer Superseded
17 101678 5 Bearing on head covers $32.52
18 100423 2 Ball joint $36.42
19 100655 3 Fork (R.H. thread) $176.67
20 100656 4 Pin with clip $3.88
21 106119 2 Fork (L.H. thread) $19.91
22 10727311 2 Nut (L.H. thread) $1.81
23 10725911 2 Nut (R.H. thread) Superseded
24 101677 4 Roller cage $9.85
25 11500521 2 Short stud $3.19
26 11509721 2 Long stud $2.35
27 12601271 3 Washer Superseded
28 101239 4 Nut $2.44
29 10734101 1 Split pin Unavailable
30 105260 1 Return spring $61.92
31 108987 1 Return spring $16.81
32 102952 1 Plate for spring $30.92
33 104340 1 Plate for spring $2.74
34 102087 2 Lever and ball joint assembly $202.90
35 121835 1 Shim Unavailable
36 104182 1 Seeger $1.44
37 103615 1 Lever $146.95
38 105586 2 Nut for ball joint (L.H. thread) $11.73
39 126992 1 Microswitch Superseded
40 116736 1 Sealing ring $1.52
41 108760 1 Flexible accelerator control $66.00
42 10444621 2 Screw Unavailable
43 108576 2 Shim $1.64
44 104887 1 Pin $12.95
45 16102311 2 Nut Superseded
46 113656 1 Lever and pinion on L.H. head shaft $143.50
47 10519201 2 Washer Unavailable
48 106848 2 Washer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
