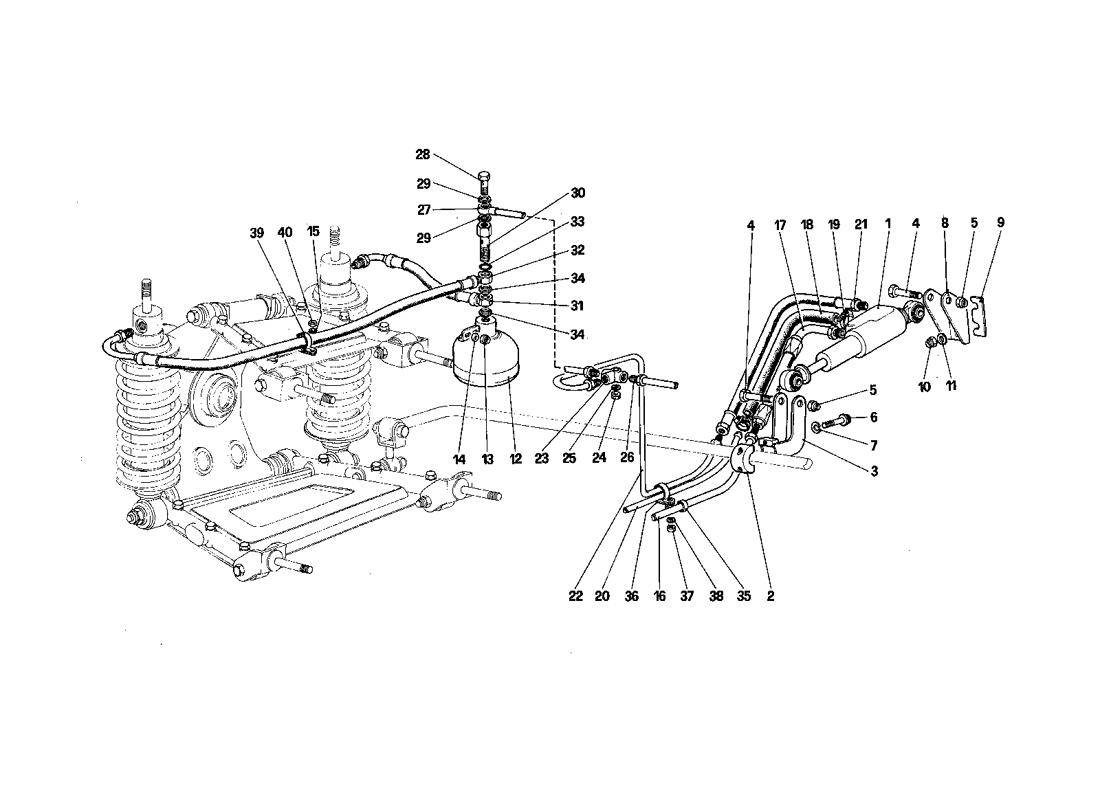

REAR SUSPENSION - SELF - LEVELLING VALVE AND OIL LINES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 117737 *Qty: 1 Self-levelling valve Call
Location: 2 Prev | Next Part: 117741 *Qty: 1 Clamp. securing lever to bar $31.47
Location: 3 Prev | Next Part: 117744 *Qty: 1 Lever. connecting bar to self-levelling valve $79.45
Location: 4 Prev | Next Part: 16044121 *Qty: 2 Screw $0.90
Location: 5 Prev | Next Part: 16104411 *Qty: 2 Nut $0.90
Location: 6 Prev | Next Part: 10902821 *Qty: 2 Screw Superseded
Location: 7 Prev | Next Part: 106850 *Qty: 2 Spring washer Superseded
Location: 8 Prev | Next Part: 117745 *Qty: 1 Bracket. securing self-levelling valve $10.87
Location: 9 Prev | Next Part: 118149 *Qty: 1 Ditto. thickness 2 mm.
Eventual fitting
$7.47
Location: 9 Prev | Next Part: 118150 *Qty: 1 Ditto. thickness 3 mm.
Eventual fitting
$7.47
Location: 9 Prev | Next Part: 118148 *Qty: 1 Shim thickness 1 mm.
Eventual fitting
$7.47
Location: 10 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 11 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 12 Prev | Next Part: 119922 *Qty: 2 Accumulator Call
Location: 13 Prev | Next Part: 16104111 *Qty: 4 Nut Superseded
Location: 14 Prev | Next Part: 10519601 *Qty: 4 Washer Superseded
Location: 15 Prev | Next Part: 12639701 *Qty: 2 Washer Call
Location: 16 Prev | Next Part: 128194 *Qty: 1 Tube. connecting pump and self-levelling valve
For RHD use no. 128730
$365.79
Location: 17 Prev | Next Part: 117926 *Qty: 1 Tube. oil delivery from pump to self-levelling valve $416.57
Location: 18 Prev | Next Part: 117776 *Qty: 1 Tube $22.64
Location: 19 Prev | Next Part: 12579590 *Qty: 2 Strap Call
Location: 20 Prev | Next Part: 128195 *Qty: 1 Intermediate tube
For RHD use no. 128731
$195.15
Location: 21 Prev | Next Part: 117740 *Qty: 1 Tube. connecting valve to 3-way $158.02
Location: 22 Prev | Next Part: 105855 *Qty: 1 Tube. connecting tube to 3-way $16.07
Location: 23 Prev | Next Part: 101394 *Qty: 1 3-way Call
Location: 24 Prev | Next Part: 15896211 *Qty: 1 Nut Superseded
Location: 25 Prev | Next Part: 10516471 *Qty: 1 Washer Superseded
Location: 26 Prev | Next Part: 117789 *Qty: 1 Tube. from 3-way to LH accumulator $58.86
Location: 27 Prev | Next Part: 117819 *Qty: 1 Tube. from 3-way to RH accumulator $43.01
Location: 28 Prev | Next Part: 113664 *Qty: 1 Union $16.98
Location: 29 Prev | Next Part: 14330260 *Qty: 4 Washer $0.90
Location: 30 Prev | Next Part: 117735 *Qty: 2 Union $142.18
Location: 31 Prev | Next Part: 117739 *Qty: 2 Tube. from accumulator to rear shock absorber Call
Location: 32 Prev | Next Part: 117738 *Qty: 2 Tube. from accumulator to front shock absorber $172.06
Location: 33 Prev | Next Part: 118018 *Qty: 2 Sealing ring $2.37
Location: 34 Prev | Next Part: 118024 *Qty: 4 Sealing ring $3.10
Location: 35 Prev | Next Part: 10441290 *Qty: 1 Strap $0.90
Location: 36 Prev | Next Part: 10441490 *Qty: 1 Strap $0.90
Location: 37 Prev | Next Part: 12575411 *Qty: 1 Nut Superseded
Location: 38 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 39 Prev | Next Part: 10441490 *Qty: 2 Strap $0.90
Location: 40 Prev | Next Part: 12575411 *Qty: 2 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
