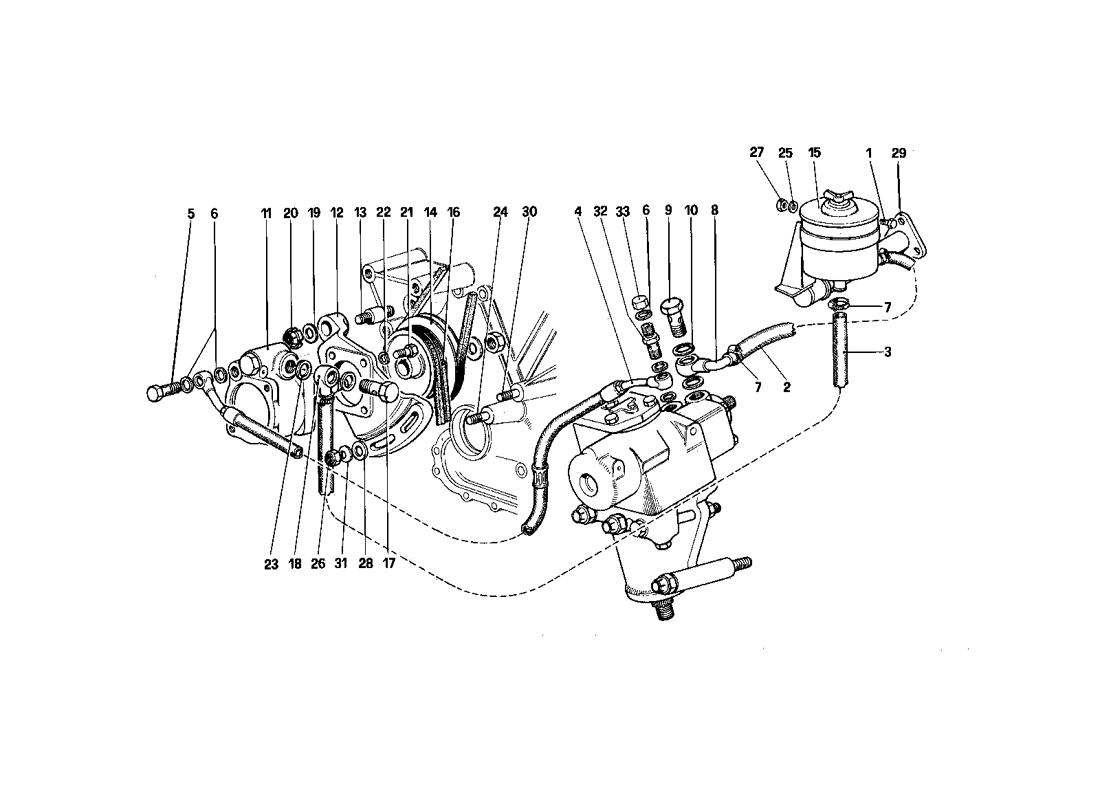

HYDRAULIC STEERING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 16043421 *Qty: 1 Bolt Superseded
Location: 2 Prev | Next Part: 113315 *Qty: 1 Pipe from steering box to tank (LHD) $4.75
Location: 3 Prev | Next Part: 127763 *Qty: 1 Pipe connecting pump to tank - For LHD $8.36
Location: 4 Prev | Next Part: 127183 *Qty: 1 Pipe from pump to steering box $272.81
Location: 4 Prev | Next Part: 128733 *Qty: 1 Pipe from pump to steering box $356.58
Location: 5 Prev | Next Part: 103402 *Qty: 1 Union $46.36
Location: 6 Prev | Next Part: 10280060 *Qty: 5 Gasket $0.90
Location: 7 Prev | Next Part: 12179590 *Qty: 4 Clamp Superseded
Location: 8 Prev | Next Part: 113314 *Qty: 1 Tube with revolving device $43.70
Location: 9 Prev | Next Part: 102632 *Qty: 1 Union $57.72
Location: 10 Prev | Next Part: 10257060 *Qty: 2 Gasket $0.90
Location: 11 Prev | Next Part: 127960 *Qty: 1 Hydraulic steering pump complete $1,504.38
Location: 11 Prev | Next Part: 128755 *Qty: 1 Hydraulic steering pump complete (LHD) $1,400.26
Location: 12 Prev | Next Part: 125093 *Qty: 1 Support for pump $458.45
Location: 13 Prev | Next Part: 100518 *Qty: 1 Pin $98.26
Location: 14 Prev | Next Part: 100514 *Qty: 1 Pulley on pump $381.46
Location: 15 Prev | Next Part: 100517 *Qty: 1 Oil reservoir - For LHD $441.47
Location: 16 Prev | Next Part: 100516 *Qty: 2 Driving belt for hydraulic steering pump $37.51
Location: 17 Prev | Next Part: 100508 *Qty: 1 Union $84.44
Location: 18 Prev | Next Part: 102629 *Qty: 1 Revolving device (LHD) $24.26
Location: 19 Prev | Next Part: 12646901 *Qty: 1 Washer $1.11
Location: 20 Prev | Next Part: 101242 *Qty: 1 Ring nut $4.42
Location: 21 Prev | Next Part: 16043821 *Qty: 4 Bolt Superseded
Location: 22 Prev | Next Part: 11198073 *Qty: 4 Washer $0.90
Location: 23 Prev | Next Part: 10259960 *Qty: 2 Gasket $0.90
Location: 24 Prev | Next Part: 13449821 *Qty: 1 Stud $1.08
Location: 25 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 26 Prev | Next Part: 12574521 *Qty: 2 Nut $0.90
Location: 27 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 28 Prev | Next Part: 13550421 *Qty: 2 Washer $0.90
Location: 29 Prev | Next Part: 127391 *Qty: 1 Support for tank and generator - Not for RHD $320.35
Location: 30 Prev | Next Part: 13450121 *Qty: 1 Stud Superseded
Location: 31 Prev | Next Part: 10413770 *Qty: 2 Washer $0.90
Location: 32 Prev | Next Part: 10181217 *Qty: 1 Union $19.48
Location: 33 Prev | Next Part: 10182817 *Qty: 1 Plug -For LHD $2.87

* Quantity shown indicates the number of pieces used in the diagram.
