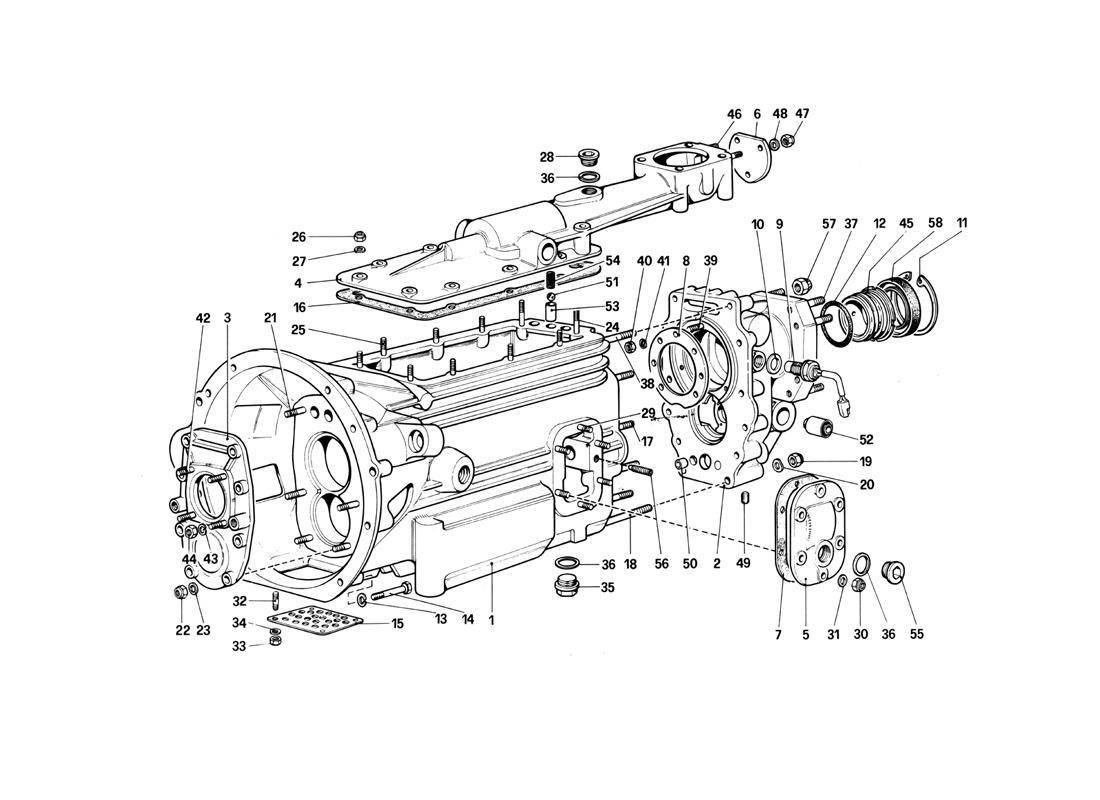

GEARBOX - 412 M.

Go to Split View

GEARBOX - 412 M.

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 126574 *Qty: 1 Gearbox casing. complete (LHD) $5,488.87
Location: 1 Prev | Next Part: 130564 *Qty: 1 Gearbox casing. complete (RHD) $5,301.78
Location: 1 Prev | Next Part: 125911 *Qty: 1 Gearbox casing
With unit no. 126574
Call
Location: 1 Prev | Next Part: 125971 *Qty: 1 Gearbox casing
With unit no. 130564
Call
Location: 2 Prev | Next Part: 119222 *Qty: 1 Rear cover $1,051.79
Location: 3 Prev | Next Part: 100676 *Qty: 1 Front cover
To exhaustion
$395.72
Location: 3 Prev | Next Part: 126573 *Qty: 1 Front cover
After exhaustion PN 100676
Call
Location: 4 Prev | Next Part: 104825 *Qty: 1 Upper cover $1,019.10
Location: 5 Prev | Next Part: 100679 *Qty: 1 Lateral cover $835.83
Location: 6 Prev | Next Part: 104827 *Qty: 1 Cover. closing hole for rod $9.34
Location: 7 Prev | Next Part: 100682 *Qty: 1 Gasket Superseded
Location: 8 Prev | Next Part: 100685 *Qty: 1 Flange. holding bearing $175.81
Location: 9 Prev | Next Part: 116987 *Qty: 1 Impulse detector $281.01
Location: 10 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 11 Prev | Next Part: 11061576 *Qty: 1 Stop ring $2.05
Location: 12 Prev | Next Part: 109650 *Qty: 1 Sealing ring $4.44
Location: 13 Prev | Next Part: 11198071 *Qty: 2 Washer Superseded
Location: 14 Prev | Next Part: 16044221 *Qty: 2 Bolt Call
Location: 15 Prev | Next Part: 100687 *Qty: 1 Lower cover $79.90
Location: 16 Prev | Next Part: 100686 *Qty: 1 Gasket Superseded
Location: 17 Prev | Next Part: 13517221 *Qty: 2 Stud Superseded
Location: 18 Prev | Next Part: 13517821 *Qty: 2 Stud Superseded
Location: 19 Prev | Next Part: 16104121 *Qty: 12 Nut Superseded
Location: 20 Prev | Next Part: 12601371 *Qty: 12 Washer Superseded
Location: 21 Prev | Next Part: 13517321 *Qty: 8 Stud Superseded
Location: 22 Prev | Next Part: 16104121 *Qty: 8 Nut Superseded
Location: 23 Prev | Next Part: 12601371 *Qty: 8 Washer Superseded
Location: 24 Prev | Next Part: 11501221 *Qty: 2 Stud $3.73
Location: 25 Prev | Next Part: 11500521 *Qty: 8 Stud $2.63
Location: 26 Prev | Next Part: 12574221 *Qty: 10 Nut Superseded
Location: 27 Prev | Next Part: 12601271 *Qty: 10 Washer Superseded
Location: 28 Prev | Next Part: 100759 *Qty: 1 Plug for breather $14.74
Location: 29 Prev | Next Part: 11500621 *Qty: 6 Stud $0.90
Location: 30 Prev | Next Part: 12574221 *Qty: 6 Nut Superseded
Location: 31 Prev | Next Part: 12601271 *Qty: 6 Washer Superseded
Location: 32 Prev | Next Part: 11000821 *Qty: 4 Stud $0.90
Location: 33 Prev | Next Part: 15896421 *Qty: 4 Nut $0.90
Location: 34 Prev | Next Part: 12601171 *Qty: 4 Washer Superseded
Location: 35 Prev | Next Part: 14326540 *Qty: 2 Drain plug Call
Location: 36 Prev | Next Part: 10263460 *Qty: 4 Gasket Superseded
Location: 37 Prev | Next Part: 13546331 *Qty: 8 Stud Superseded
Location: 38 Prev | Next Part: 13517521 *Qty: 8 Stud $0.90
Location: 39 Prev | Next Part: 13540821 *Qty: 7 Stud Superseded
Location: 40 Prev | Next Part: 15896221 *Qty: 7 Nut Superseded
Location: 41 Prev | Next Part: 10516471 *Qty: 7 Washer Superseded
Location: 42 Prev | Next Part: 11500021 *Qty: 4 Stud Superseded
Location: 43 Prev | Next Part: 10516471 *Qty: 4 Washer Superseded
Location: 44 Prev | Next Part: 15896221 *Qty: 4 Nut Superseded
Location: 45 Prev | Next Part: 109647 *Qty: 1 Bush $151.04
Location: 46 Prev | Next Part: 11000921 *Qty: 3 Stud Call
Location: 47 Prev | Next Part: 12574121 *Qty: 3 Nut Superseded
Location: 48 Prev | Next Part: 12601171 *Qty: 3 Washer Superseded
Location: 49 Prev | Next Part: 14326050 *Qty: 1 Plug $1.77
Location: 50 Prev | Next Part: 102692 *Qty: 1 Centering dowel $6.65
Location: 51 Prev | Next Part: 101612 *Qty: 3 Ball for pin ? 5/16" $1.44
Location: 52 Prev | Next Part: 105634 *Qty: 1 Silenblock for tie-rod $113.49
Location: 53 Prev | Next Part: 115376 *Qty: 3 Bush for pin $27.98
Location: 54 Prev | Next Part: 124246 *Qty: 3 Spring for pin $13.76
Location: 55 Prev | Next Part: 10275040 *Qty: 1 Plug Superseded
Location: 56 Prev | Next Part: 101620 *Qty: 1 Dowel. securing pin for reverse idle gear $2.11
Location: 57 Prev | Next Part: 13598021 *Qty: 8 Nut $4.65
Location: 58 Prev | Next Part: 106778 *Qty: 1 Sealing ring $66.77

* Quantity shown indicates the number of pieces used in the diagram.
