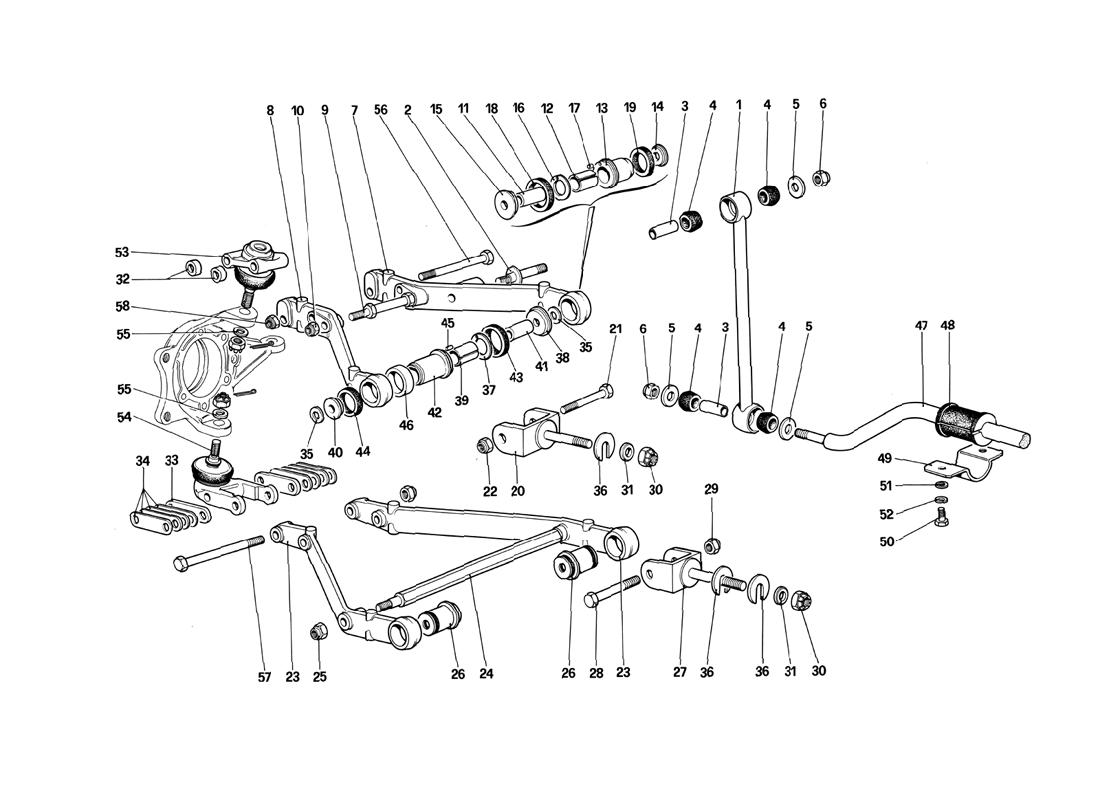

FRONT SUSPENSION - LEVERS

Go to Split View

FRONT SUSPENSION - LEVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100986 *Qty: 2 Rod link $187.46
Location: 2 Prev | Next Part: 100979 *Qty: 2 Pin $104.14
Location: 3 Prev | Next Part: 100985 *Qty: 4 Spacer $27.54
Location: 4 Prev | Next Part: 100984 *Qty: 8 Grommet $15.95
Location: 5 Prev | Next Part: 105334 *Qty: 6 Washer $38.14
Location: 6 Prev | Next Part: 16105121 *Qty: 4 Nut Superseded
Location: 7 Prev | Next Part: 125682 *Qty: 1 L.H. front arm $399.60
Location: 7 Prev | Next Part: 125683 *Qty: 1 R.H. front arm $399.60
Location: 8 Prev | Next Part: 125681 *Qty: 1 L.H. rear arm $399.60
Location: 8 Prev | Next Part: 125684 *Qty: 1 R.H. rear arm $399.60
Location: 9 Prev | Next Part: 125905 *Qty: 2 Spacer for upper arms $126.32
Location: 10 Prev | Next Part: 12575621 *Qty: 4 Selflocking nut Superseded
Location: 11 Prev | Next Part: 109904 *Qty: 2 Spacer $141.06
Location: 13 Prev | Next Part: 105446 *Qty: 2 Bush $58.42
Location: 14 Prev | Next Part: 105443 *Qty: 2 Washer $17.42
Location: 15 Prev | Next Part: 109901 *Qty: 2 Washer $71.99
Location: 16 Prev | Next Part: 101009 *Qty: 2 Washer $13.08
Location: 17 Prev | Next Part: 100796 *Qty: 2 Dowel $5.54
Location: 18 Prev | Next Part: 105342 *Qty: 2 Large rubber dust excluded $12.64
Location: 19 Prev | Next Part: 105343 *Qty: 2 Little rubber dust excluded $14.55
Location: 20 Prev | Next Part: 128173 *Qty: 2 Fork $105.51
Location: 21 Prev | Next Part: 15541321 *Qty: 2 Screw $1.35
Location: 22 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 23 Prev | Next Part: 129584 *Qty: 4 Lever arm
From to 1.4.86
$250.17
Location: 23 Prev | Next Part: 125685 *Qty: 4 Lever arm
Up to 3 1.3.86
$399.60
Location: 24 Prev | Next Part: 125909 *Qty: 2 Spacer for lower arms $126.32
Location: 25 Prev | Next Part: 12575621 *Qty: 4 Nut Superseded
Location: 26 Prev | Next Part: 111617 *Qty: 4 Flamblock
With lever no. 125685
Superseded
Location: 26 Prev | Next Part: 129583 *Qty: 4 Flamblock
With lever no. 129584
Superseded
Location: 27 Prev | Next Part: 116690 *Qty: 4 Fork
With lever no. 129584
Superseded
Location: 27 Prev | Next Part: 101035 *Qty: 4 Fork
With lever no. 125685
$192.68
Location: 28 Prev | Next Part: 15541321 *Qty: 4 Screw
With lever no 125685
$1.35
Location: 28 Prev | Next Part: 12575821 *Qty: 4 Screw
With lever no. 129584
Superseded
Location: 29 Prev | Next Part: 16105121 *Qty: 4 Selflocking nut
With lever no. 125685
Superseded
Location: 29 Prev | Next Part: 106422 *Qty: 4 Selflocking nut
With lever no. 129584
$37.07
Location: 30 Prev | Next Part: 101040 *Qty: 6 Nut $4.41
Location: 31 Prev | Next Part: 101041 *Qty: 6 Washer $0.90
Location: 32 Prev | Next Part: 128172 *Qty: 4 Spacer $9.72
Location: 33 Prev | Next Part: 101021 *Qty: 4 Plate $6.33
Location: 34 Prev | Next Part: 101022 *Qty: 16 Plate for caster adjustement $1.93
Location: 35 Prev | Next Part: 113333 *Qty: 4 Ditto. thickness 2 mm. Call
Location: 35 Prev | Next Part: 113332 *Qty: 4 Ditto. thickness 2,2 mm. Call
Location: 35 Prev | Next Part: 113331 *Qty: 4 Ditto. thickness 2,5 mm. Call
Location: 35 Prev | Next Part: 113330 *Qty: 4 Ditto. thickness 2,6 mm. Call
Location: 35 Prev | Next Part: 113329 *Qty: 4 Ditto. thickness 2,8 mm. $7.24
Location: 35 Prev | Next Part: 113328 *Qty: 4 Ditto. thickness 3mm. Call
Location: 35 Prev | Next Part: 113327 *Qty: 4 Ditto. thickness 3,2 mm. Call
Location: 35 Prev | Next Part: 113326 *Qty: 4 Ditto. thickness 3,4 mm. $8.17
Location: 35 Prev | Next Part: 113325 *Qty: 4 Ditto. thickness 3,6 mm. Call
Location: 35 Prev | Next Part: 113324 *Qty: 4 Ditto. thickness 3,8 mm. Call
Location: 35 Prev | Next Part: 101004 *Qty: 4 Shim
Eventual fitting
Call
Location: 36 Prev | Next Part: 107339 *Qty: 10 Ditto. thickness 2mm. $2.00
Location: 36 Prev | Next Part: 107341 *Qty: 10 Ditto. thickness 3mm. $2.00
Location: 36 Prev | Next Part: 107342 *Qty: 10 Ditto. thickness 3,25 mm. $1.18
Location: 36 Prev | Next Part: 107340 *Qty: 10 Shim thickness 2.5 mm.
Eventual fitting
$2.00
Location: 36 Prev | Next Part: 101039 *Qty: 10 Ditto. thickness 1mm. $2.00
Location: 36 Prev | Next Part: 101038 *Qty: 10 Ditto. thickness 1,5 mm. Call
Location: 37 Prev | Next Part: 101009 *Qty: 2 Washer $13.08
Location: 38 Prev | Next Part: 109901 *Qty: 2 Washer $71.99
Location: 39 Prev | Next Part: 101010 *Qty: 2 Bush $7.22
Location: 40 Prev | Next Part: 105443 *Qty: 2 Washer $17.42
Location: 41 Prev | Next Part: 109903 *Qty: 2 Bush $116.93
Location: 42 Prev | Next Part: 105442 *Qty: 2 Bush $94.47
Location: 43 Prev | Next Part: 105342 *Qty: 2 Large rubber dust excluded $12.64
Location: 44 Prev | Next Part: 105343 *Qty: 2 Little rubber dust excluded $14.55
Location: 45 Prev | Next Part: 100796 *Qty: 2 Dowel $5.54
Location: 46 Prev | Next Part: 128174 *Qty: 2 Spacer $40.30
Location: 47 Prev | Next Part: 125670 *Qty: 1 Stabilized rod Call
Location: 48 Prev | Next Part: 108744 *Qty: 2 Pad for rod $23.59
Location: 49 Prev | Next Part: 101050 *Qty: 2 Support $9.81
Location: 50 Prev | Next Part: 106002 *Qty: 4 Screw $1.25
Location: 51 Prev | Next Part: 12625621 *Qty: 4 Washer Call
Location: 52 Prev | Next Part: 101010 *Qty: 2 Bush $7.22
Location: 52 Prev | Next Part: 10516671 *Qty: 4 Washer Superseded
Location: 53 Prev | Next Part: 116280 *Qty: 2 Upper ball joint $163.79
Location: 54 Prev | Next Part: 114462 *Qty: 2 Lower ball joint Superseded
Location: 55 Prev | Next Part: 101445 *Qty: 4 Washer $0.90
Location: 56 Prev | Next Part: 121660 *Qty: 4 Screw $68.05
Location: 57 Prev | Next Part: 126276 *Qty: 2 Screw $19.26
Location: 58 Prev | Next Part: 12575621 *Qty: 6 Selflocking nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
