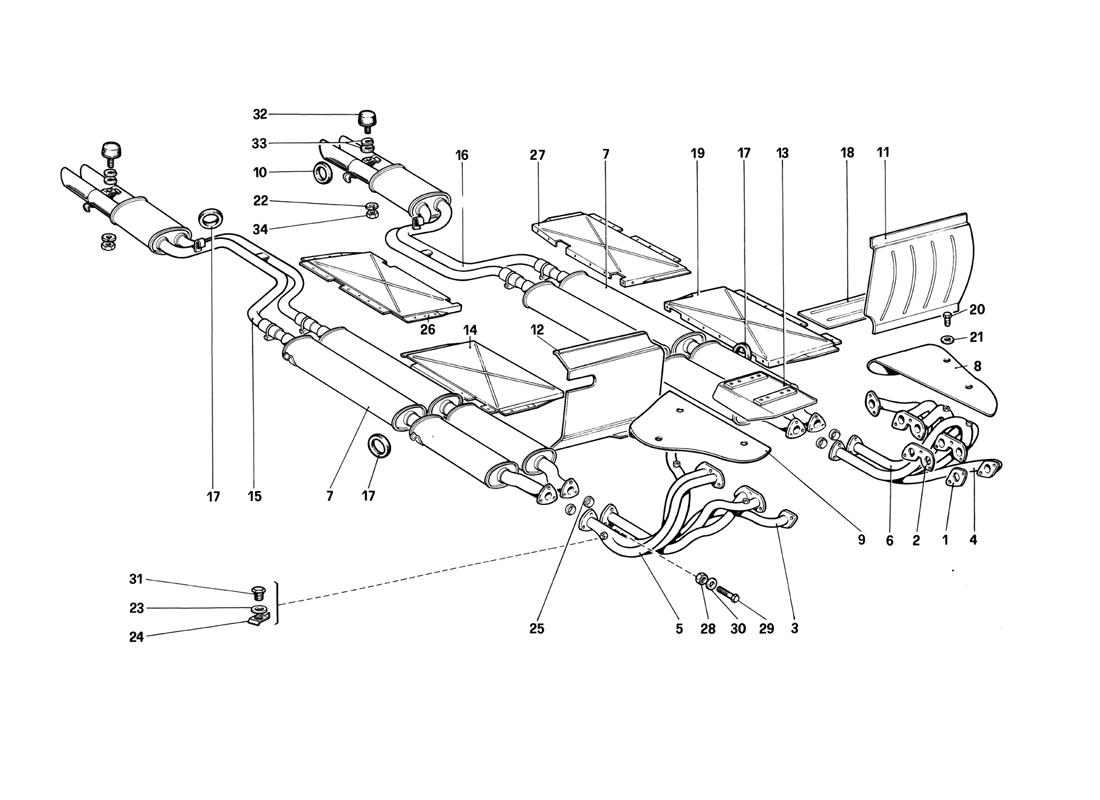

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 102015 *Qty: 4 Gasket Superseded
Location: 2 Prev | Next Part: 102017 *Qty: 4 Gasket Superseded
Location: 3 Prev | Next Part: 126740 *Qty: 1 Exhaust manifold. R.H. front
Not for CH
Call
Location: 3 Prev | Next Part: 128786 *Qty: 1 Exhaust manifold. R.H. front
For CH
$2,225.20
Location: 4 Prev | Next Part: 128787 *Qty: 1 Exhaust manifold L.H. front
For CH
$2,225.20
Location: 4 Prev | Next Part: 126744 *Qty: 1 Exhaust manifold L.H. front
Not for CH
$1,264.90
Location: 5 Prev | Next Part: 126741 *Qty: 1 Exhaust manifold R.H. rear
Not for CH
Call
Location: 5 Prev | Next Part: 128788 *Qty: 1 Exhaust manifold R.H. rear
For CH
$2,225.20
Location: 6 Prev | Next Part: 126745 *Qty: 1 Exhaust manifold L.H. rear
Not for CH
$1,174.04
Location: 6 Prev | Next Part: 128789 *Qty: 1 Exhaust manifold L.H. rear
For CH
$2,225.20
Location: 7 Prev | Next Part: 128790 *Qty: 2 Exhaust silencer central
For CH
$1,509.97
Location: 7 Prev | Next Part: 126742 *Qty: 2 Exhaust silencer central
Not for CH
$3,060.59
Location: 8 Prev | Next Part: 102002 *Qty: 1 L.H . protective plate. upper $326.86
Location: 9 Prev | Next Part: 103571 *Qty: 1 R.H. protective plate. upper $178.14
Location: 10 Prev | Next Part: 103631 *Qty: 4 Supporting ring for silencers $26.80
Location: 11 Prev | Next Part: 102005 *Qty: 1 L.H. protective plate
For R.H.D.
$119.07
Location: 11 Prev | Next Part: 103573 *Qty: 1 L.H. protective plate
Not for R.H.D.
$115.79
Location: 12 Prev | Next Part: 105084 *Qty: 1 R.H. protective plate $245.15
Location: 12 Prev | Next Part: 105090 *Qty: 1 R.H. protective plate
For R.H.D.
$203.13
Location: 13 Prev | Next Part: 129257 *Qty: 2 Protective plate $135.76
Location: 14 Prev | Next Part: 127778 *Qty: 1 R.H. intermediate protective plate for floor $202.41
Location: 15 Prev | Next Part: 126743 *Qty: 1 R.H. rear silencer
Not for CH
$1,391.21
Location: 15 Prev | Next Part: 128791 *Qty: 1 R.H. rear silencer
For CH
$2,781.56
Location: 16 Prev | Next Part: 126747 *Qty: 1 L.H . rear silencer
Not for CH
$1,391.21
Location: 16 Prev | Next Part: 128792 *Qty: 1 L.H. rear silencer
For CH
$2,781.56
Location: 19 Prev | Next Part: 127779 *Qty: 1 L.H. intermediate protective plate for floor $216.20
Location: 20 Prev | Next Part: 10902121 *Qty: 6 Bolt Superseded
Location: 21 Prev | Next Part: 11197773 *Qty: 6 Washer Superseded
Location: 22 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 23 Prev | Next Part: 10298460 *Qty: 12 Gasket $0.90
Location: 24 Prev | Next Part: 14198901 *Qty: 12 Plate $6.32
Location: 25 Prev | Next Part: 103377 *Qty: 4 Gasket Superseded
Location: 26 Prev | Next Part: 127780 *Qty: 1 R.H. rear protective plate $185.84
Location: 27 Prev | Next Part: 127781 *Qty: 1 L.H. rear protective plate $228.33
Location: 28 Prev | Next Part: 114748 *Qty: 12 Nut $0.90
Location: 29 Prev | Next Part: 119631 *Qty: 12 Bolt $0.90
Location: 30 Prev | Next Part: 10519601 *Qty: 12 Washer Superseded
Location: 31 Prev | Next Part: 110860 *Qty: 12 Plug for bush on manifolds Call
Location: 32 Prev | Next Part: 105863 *Qty: 2 Buffer for silencers $25.35
Location: 33 Prev | Next Part: 105864 *Qty: 4 Shim $1.78
Location: 34 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded

* Quantity shown indicates the number of pieces used in the diagram.
