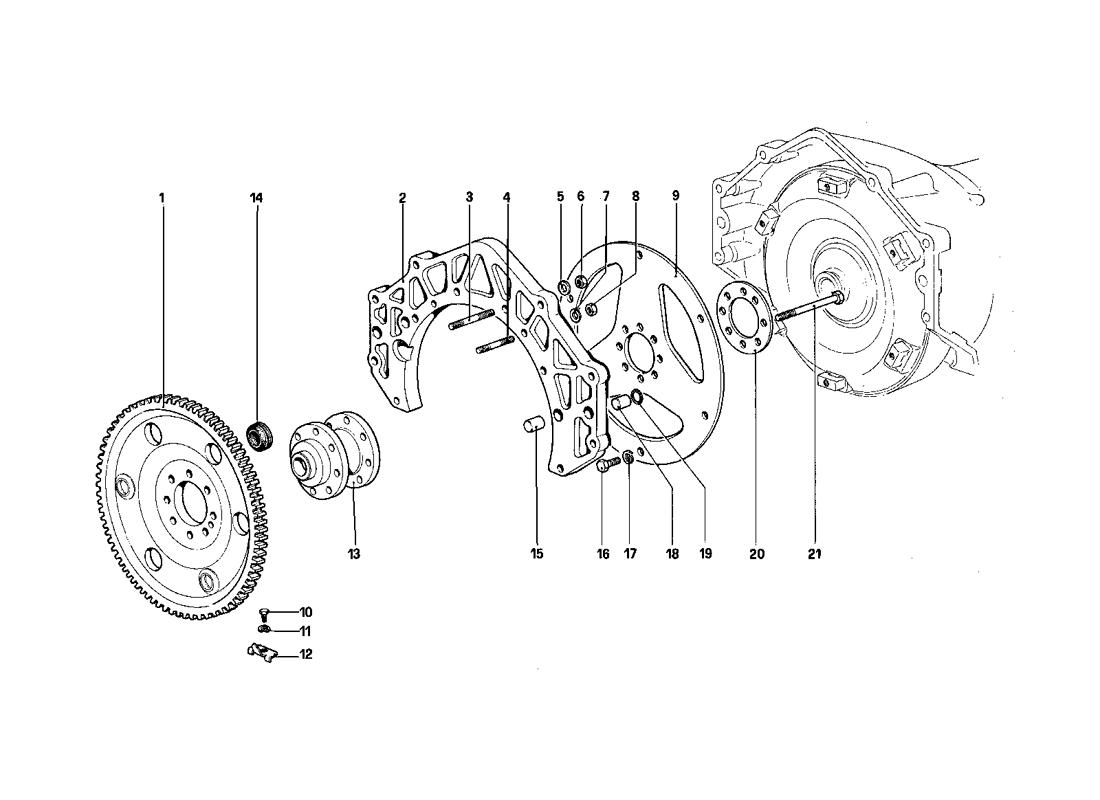

ENGINE FLYWHEEL AND CLUTCH HOUSING SPACER - 412 A.

Go to Split View

ENGINE FLYWHEEL AND CLUTCH HOUSING SPACER - 412 A.

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 126199 *Qty: 1 Flywheel
Not for CH
$1,428.71
Location: 1 Prev | Next Part: 129006 *Qty: 1 Flywheel
For CH
$1,902.84
Location: 2 Prev | Next Part: 121052 *Qty: 1 Flange between engine and gearbox Call
Location: 3 Prev | Next Part: 13646621 *Qty: 2 Stud Call
Location: 4 Prev | Next Part: 13143621 *Qty: 6 Stud Call
Location: 5 Prev | Next Part: 12601471 *Qty: 2 Washer Superseded
Location: 6 Prev | Next Part: 12164711 *Qty: 2 Nut Superseded
Location: 7 Prev | Next Part: 12601371 *Qty: 6 Spring washer Superseded
Location: 8 Prev | Next Part: 16100811 *Qty: 6 Nut Superseded
Location: 9 Prev | Next Part: 111175 *Qty: 1 Flange $723.33
Location: 10 Prev | Next Part: 10977521 *Qty: 1 Bolt $0.90
Location: 11 Prev | Next Part: 12574121 *Qty: 1 Spring washer Superseded
Location: 12 Prev | Next Part: 126206 *Qty: 1 Reference plate $23.33
Location: 13 Prev | Next Part: 127896 *Qty: 1 Flywheel hub $625.97
Location: 14 Prev | Next Part: 111540 *Qty: 3 Vibration-damping stopper $55.98
Location: 15 Prev | Next Part: 10839910 *Qty: 2 Reference dowel $1.42
Location: 16 Prev | Next Part: 114202 *Qty: 6 Bolt. securing flange $11.08
Location: 17 Prev | Next Part: 106853 *Qty: 2 Centering dowel Superseded
Location: 18 Prev | Next Part: 109000 *Qty: 2 Sealing ring $12.44
Location: 19 Prev | Next Part: 13400875 *Qty: 2 Sealing ring $1.42
Location: 20 Prev | Next Part: 108662 *Qty: 1 Locking plate $20.04
Location: 21 Prev | Next Part: 111180 *Qty: 8 Bolt $17.43

* Quantity shown indicates the number of pieces used in the diagram.
