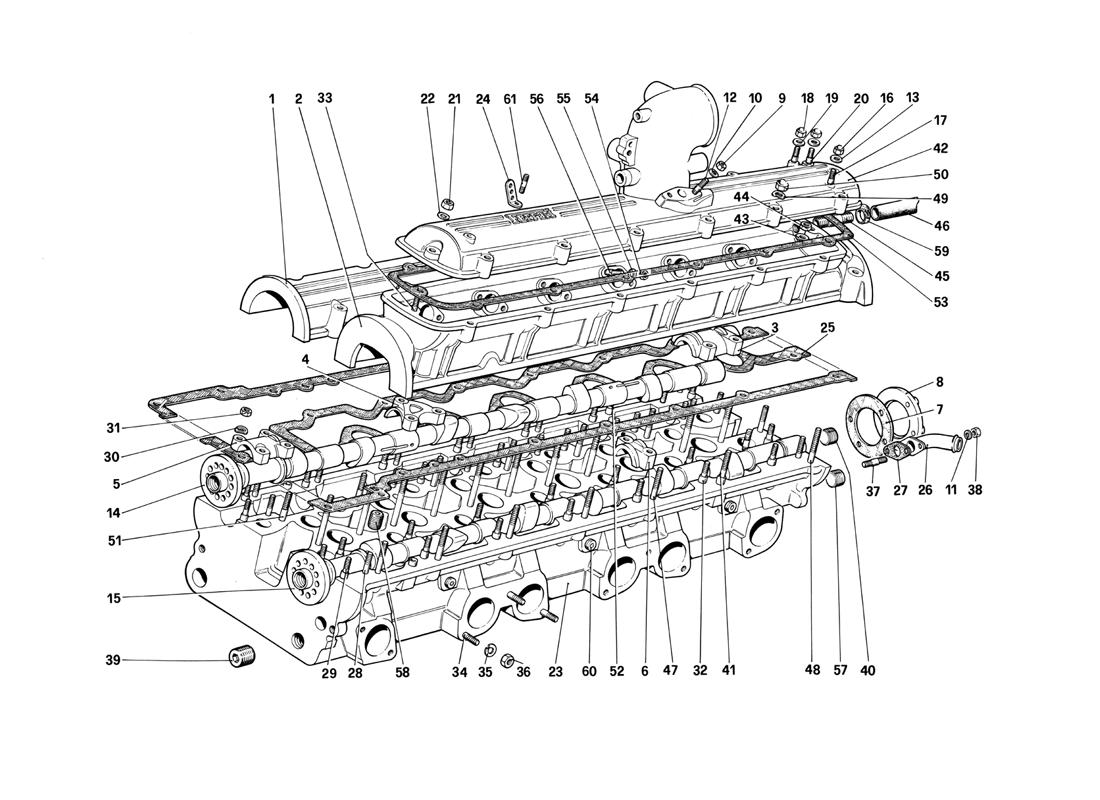

CYLINDER HEAD (LEFT)

Go to Split View

CYLINDER HEAD (LEFT)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 125155 *Qty: 1 Inner cover for L.H. head $736.92
Location: 1 Prev | Next Part: 127894 *Qty: 1 Outer cover for L.H. head complete $1,941.34
Location: 2 Prev | Next Part: 127895 *Qty: 1 Outer cover
With assembly no. 127894
Call
Location: 3 Prev | Next Part: 100231 *Qty: 2 Rear cap
With cylinder head no. 126511
Call
Location: 3 Prev | Next Part: 125437 *Qty: 2 Rear cap
With cylinder head no. 125278 and 127959
Call
Location: 4 Prev | Next Part: 100226 *Qty: 5 Intermediate cap
With cylinder head no. 126512
Call
Location: 4 Prev | Next Part: 125432 *Qty: 5 Intermediate cap Call
Location: 5 Prev | Next Part: 125436 *Qty: 2 Front cap Call
Location: 5 Prev | Next Part: 100230 *Qty: 2 Front cap
With cylinder head no. 126513
Call
Location: 6 Prev | Next Part: 125433 *Qty: 5 Intermediate cap Call
Location: 6 Prev | Next Part: 100227 *Qty: 5 Intermediate cap
With cylinder head no. 126514
Call
Location: 7 Prev | Next Part: 113510 *Qty: 1 Gasket Superseded
Location: 8 Prev | Next Part: 113509 *Qty: 1 Rear cover $85.35
Location: 9 Prev | Next Part: 101239 *Qty: 2 Nut $1.78
Location: 10 Prev | Next Part: 10519401 *Qty: 1 Washer Superseded
Location: 11 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 12 Prev | Next Part: 13540721 *Qty: 2 Stud Superseded
Location: 13 Prev | Next Part: 12643701 *Qty: 2 Washer Superseded
Location: 14 Prev | Next Part: 126454 *Qty: 1 Left intake camshaft complete
Not for CH - Up to engine no. 127
$1,769.28
Location: 14 Prev | Next Part: 129229 *Qty: 1 Left intake camshaft complete
For CH - From engine no. 128
$1,583.63
Location: 14 Prev | Next Part: 129213 *Qty: 1 Left intake camshaft complete
Not for CH - From engine no. 128
$1,874.56
Location: 14 Prev | Next Part: 129311 *Qty: 1 Left intake camshaft complete
For CH - Up to engine no.127
$1,379.89
Location: 15 Prev | Next Part: 113959 *Qty: 1 Left exhaust camshaft complete
Up to engine no.127
$1,684.38
Location: 15 Prev | Next Part: 129217 *Qty: 1 Left exhaust camshaft complete
From engine no. 128
$1,874.56
Location: 16 Prev | Next Part: 101239 *Qty: 1 Nut $1.78
Location: 17 Prev | Next Part: 11500511 *Qty: 1 Stud $0.90
Location: 18 Prev | Next Part: 101239 *Qty: 2 Nut $1.78
Location: 19 Prev | Next Part: 12601271 *Qty: 2 Washer Superseded
Location: 20 Prev | Next Part: 11500021 *Qty: 2 Stud Superseded
Location: 21 Prev | Next Part: 101239 *Qty: 14 Nut $1.78
Location: 22 Prev | Next Part: 12601271 *Qty: 14 Washer Superseded
Location: 23 Prev | Next Part: 126509 *Qty: 1 Left cylinder head
With assembly no. 126511
Call
Location: 23 Prev | Next Part: 125278 *Qty: 1 Left cylinder head
With assembly no. 125153
Call
Location: 23 Prev | Next Part: 126925 *Qty: 1 Left cylinder head
With assembly no. 127959
Call
Location: 23 Prev | Next Part: 126511 *Qty: 1 Left cylinder head. complete
Up to engine no. 127
$12,604.53
Location: 23 Prev | Next Part: 125153 *Qty: 1 Left cylinder head. complete
From engine no. 128
$12,465.29
Location: 23 Prev | Next Part: 127959 *Qty: 1 Left cylinder head. complete
For CH
$12,744.90
Location: 24 Prev | Next Part: 127532 *Qty: 2 Bracket $17.89
Location: 25 Prev | Next Part: 113568 *Qty: 1 Gasket Superseded
Location: 26 Prev | Next Part: 127972 *Qty: 1 Union for water plug of heater $22.64
Location: 27 Prev | Next Part: 104291 *Qty: 1 Gasket for cock $2.37
Location: 28 Prev | Next Part: 102735 *Qty: 37 Stud $23.76
Location: 29 Prev | Next Part: 104188 *Qty: 4 Stud $7.00
Location: 30 Prev | Next Part: 11197773 *Qty: 41 Washer Superseded
Location: 31 Prev | Next Part: 15896211 *Qty: 41 Nut Superseded
Location: 32 Prev | Next Part: 102725 *Qty: 28 Centering dowel $0.90
Location: 33 Prev | Next Part: 11500821 *Qty: 12 Stud Superseded
Location: 34 Prev | Next Part: 13543321 *Qty: 20 Stud securing manifolds Superseded
Location: 35 Prev | Next Part: 106852 *Qty: 20 Washer
Only for 105938
Superseded
Location: 36 Prev | Next Part: 105938 *Qty: 20 Nut
As option to no. 124525
Superseded
Location: 37 Prev | Next Part: 11500221 *Qty: 2 Stud for union $0.90
Location: 38 Prev | Next Part: 12574211 *Qty: 2 Nut Superseded
Location: 39 Prev | Next Part: 14325240 *Qty: 1 Plug $4.75
Location: 40 Prev | Next Part: 10269750 *Qty: 2 Plug $2.01
Location: 41 Prev | Next Part: 13542021 *Qty: 1 Long stud on dowel $1.05
Location: 42 Prev | Next Part: 126546 *Qty: 1 Upper cover with complete throttle body
Not for CH
$2,250.37
Location: 42 Prev | Next Part: 128341 *Qty: 1 Upper cover with complete throttle body
For CH
$2,123.59
Location: 43 Prev | Next Part: 10297760 *Qty: 6 Washer $0.90
Location: 44 Prev | Next Part: 12574211 *Qty: 6 Nut Superseded
Location: 45 Prev | Next Part: 100610 *Qty: 1 Sleeve $63.16
Location: 46 Prev | Next Part: 110747 *Qty: 1 Tube connecting intake manifold to vacuum serve check valve
For R.H.D. use no. 110748
$43.25
Location: 47 Prev | Next Part: 13541921 *Qty: 18 Stud. securing cover Superseded
Location: 48 Prev | Next Part: 13541721 *Qty: 2 Stud Superseded
Location: 49 Prev | Next Part: 12601271 *Qty: 28 Washer Superseded
Location: 50 Prev | Next Part: 101239 *Qty: 28 Nut $1.78
Location: 51 Prev | Next Part: 104185 *Qty: 13 Stud for inner cover $25.81
Location: 52 Prev | Next Part: 102935 *Qty: 1 Stud on dowel $1.91
Location: 53 Prev | Next Part: 113572 *Qty: 1 Gasket Superseded
Location: 54 Prev | Next Part: 15896221 *Qty: 12 Nut Superseded
Location: 55 Prev | Next Part: 11197771 *Qty: 12 Washer Superseded
Location: 56 Prev | Next Part: 11499921 *Qty: 12 Stud Superseded
Location: 57 Prev | Next Part: 14325240 *Qty: 2 Plug $4.75
Location: 58 Prev | Next Part: 14325040 *Qty: 1 Plug $4.32
Location: 59 Prev | Next Part: 12179990 *Qty: 1 Clamp Superseded
Location: 60 Prev | Next Part: 10269550 *Qty: 6 Plug. oil ducts for R.H. and L.H. $0.90
Location: 61 Prev | Next Part: 11501021 *Qty: 2 Stud $0.90

* Quantity shown indicates the number of pieces used in the diagram.
