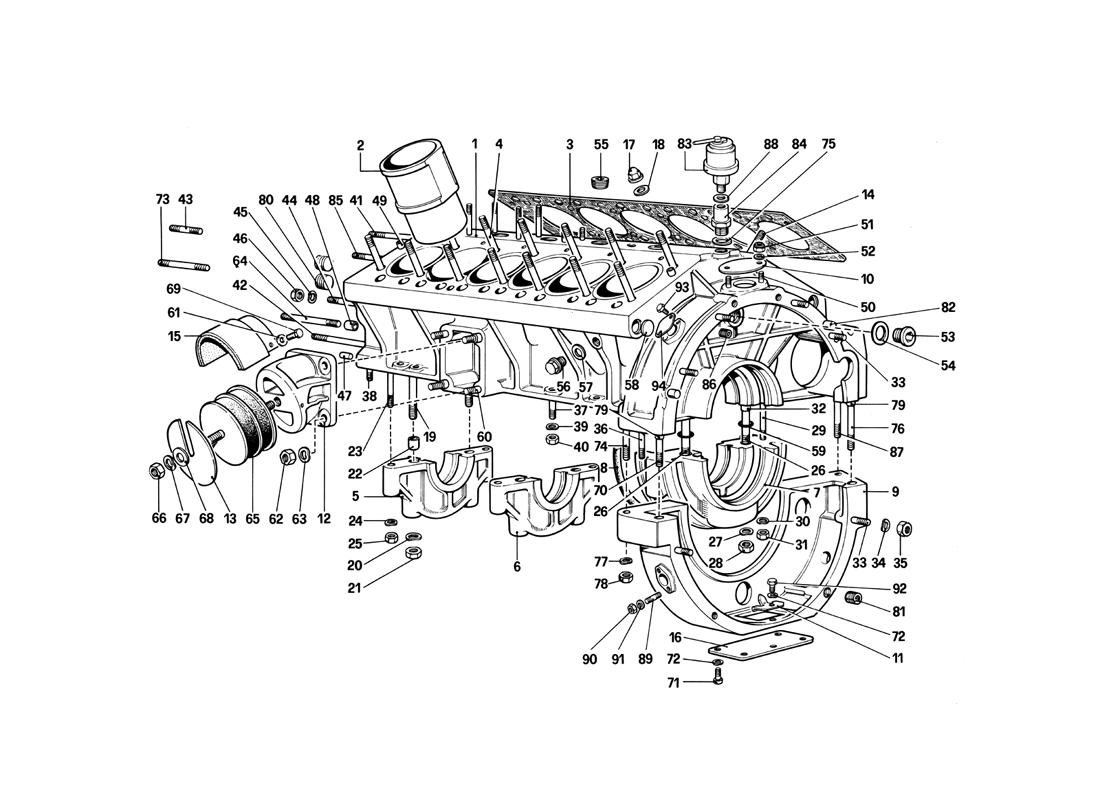

CRANKCASE

Go to Split View

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: - *Qty: 1 Set of Gaskets Call
Location: 1 Prev | Next Part: 126077 *Qty: 1 Crankcase
With unit no. 126078
Call
Location: 1 Prev | Next Part: 126078 *Qty: 1 Crankcase complete $12,912.04
Location: 2 Prev | Next Part: 126515 *Qty: 12 Cylinder barrel $446.67
Location: 3 Prev | Next Part: 100096 *Qty: 2 Gasket Superseded
Location: 4 Prev | Next Part: 100098 *Qty: 27 Stud securing heads $38.86
Location: 5 Prev | Next Part: 108829 *Qty: 1 Front support
With complete crankcase
Call
Location: 6 Prev | Next Part: 108827 *Qty: 5 Intermediate support
With complete crankcase
Call
Location: 7 Prev | Next Part: 108828 *Qty: 1 Rear support
With complete crankcase
Call
Location: 8 Prev | Next Part: 100055 *Qty: 1 Gasket $67.13
Location: 9 Prev | Next Part: 126079 *Qty: 1 Flange for clutch Call
Location: 9 Prev | Next Part: 126529 *Qty: 1 Flange for clutch complete Call
Location: 10 Prev | Next Part: 102902 *Qty: 1 Inspection cover $14.65
Location: 11 Prev | Next Part: 126206 *Qty: 1 Timing reference bracket $24.06
Location: 12 Prev | Next Part: 105263 *Qty: 2 Support for crankcase $198.68
Location: 13 Prev | Next Part: 100084 *Qty: 4 Shim for buffer $37.50
Location: 14 Prev | Next Part: 100099 *Qty: 1 Stud. securing head $26.15
Location: 15 Prev | Next Part: 105266 *Qty: 2 Guard for buffer $116.50
Location: 16 Prev | Next Part: 100183 *Qty: 1 Plate on rear flange $13.55
Location: 17 Prev | Next Part: 100101 *Qty: 28 Nut. securing heads $75.08
Location: 18 Prev | Next Part: 100100 *Qty: 28 Washer $2.11
Location: 19 Prev | Next Part: 100012 *Qty: 12 Long stud $15.64
Location: 20 Prev | Next Part: 11198673 *Qty: 12 Washer $1.08
Location: 21 Prev | Next Part: 16101521 *Qty: 12 Nut $0.90
Location: 22 Prev | Next Part: 100013 *Qty: 12 Dowel $3.07
Location: 23 Prev | Next Part: 103183 *Qty: 12 Short stud $11.20
Location: 24 Prev | Next Part: 103180 *Qty: 12 Washer $0.90
Location: 25 Prev | Next Part: 103181 *Qty: 12 Nut $0.90
Location: 26 Prev | Next Part: 104170 *Qty: 2 Long stud $19.14
Location: 27 Prev | Next Part: 12601571 *Qty: 2 Washer $0.90
Location: 28 Prev | Next Part: 16101521 *Qty: 2 Nut $0.90
Location: 29 Prev | Next Part: 103179 *Qty: 2 Short stud $10.27
Location: 30 Prev | Next Part: 103180 *Qty: 2 Washer $0.90
Location: 31 Prev | Next Part: 103181 *Qty: 2 Nut $0.90
Location: 32 Prev | Next Part: 100013 *Qty: 2 Dowel $3.07
Location: 33 Prev | Next Part: 13543921 *Qty: 6 Stud
For 412 M
$1.00
Location: 34 Prev | Next Part: 11198071 *Qty: 6 Washer
For 412 M
Superseded
Location: 35 Prev | Next Part: 16100821 *Qty: 6 Nut $3.57
Location: 36 Prev | Next Part: 100020 *Qty: 2 Stud. securing sump $18.45
Location: 37 Prev | Next Part: 13517321 *Qty: 10 Mean stud Superseded
Location: 38 Prev | Next Part: 13516821 *Qty: 2 Stud $1.10
Location: 39 Prev | Next Part: 11198071 *Qty: 14 Washer Superseded
Location: 40 Prev | Next Part: 16100821 *Qty: 14 Nut $3.57
Location: 41 Prev | Next Part: 100036 *Qty: 2 Stud $13.07
Location: 42 Prev | Next Part: 100037 *Qty: 1 Stud $24.98
Location: 43 Prev | Next Part: 13517421 *Qty: 1 Stud $41.97
Location: 44 Prev | Next Part: 100038 *Qty: 1 Stud $24.98
Location: 45 Prev | Next Part: 11198071 *Qty: 6 Washer Superseded
Location: 46 Prev | Next Part: 16100821 *Qty: 5 Nut $3.57
Location: 46 Prev | Next Part: 101240 *Qty: 1 Selflocking nut Superseded
Location: 47 Prev | Next Part: 100040 *Qty: 1 Dowel $1.90
Location: 48 Prev | Next Part: 100041 *Qty: 1 Dowel $9.60
Location: 49 Prev | Next Part: 100097 *Qty: 4 Dowel $11.72
Location: 50 Prev | Next Part: 11500021 *Qty: 2 Stud Superseded
Location: 51 Prev | Next Part: 101239 *Qty: 2 Nut $1.97
Location: 52 Prev | Next Part: 10414170 *Qty: 1 Washer Call
Location: 53 Prev | Next Part: 10275040 *Qty: 1 Plug Superseded
Location: 54 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 55 Prev | Next Part: 14325540 *Qty: 2 Conical plug $12.51
Location: 56 Prev | Next Part: 10300740 *Qty: 2 Water drain plug $16.59
Location: 57 Prev | Next Part: 10257060 *Qty: 2 Gasket $0.90
Location: 58 Prev | Next Part: 10158801 *Qty: 4 Expansion plug $1.85
Location: 59 Prev | Next Part: 100015 *Qty: 2 Seal ring $1.55
Location: 60 Prev | Next Part: 13449521 *Qty: 8 Stud Call
Location: 61 Prev | Next Part: 12601171 *Qty: 4 Washer Superseded
Location: 62 Prev | Next Part: 12164721 *Qty: 8 Nut Superseded
Location: 63 Prev | Next Part: 11198371 *Qty: 8 Washer $0.90
Location: 64 Prev | Next Part: 100036 *Qty: 2 Stud $13.07
Location: 65 Prev | Next Part: 104956 *Qty: 2 Buffer for engine Superseded
Location: 66 Prev | Next Part: 12164721 *Qty: 2 Nut Superseded
Location: 67 Prev | Next Part: 106853 *Qty: 2 Washer Superseded
Location: 68 Prev | Next Part: 100086 *Qty: 2 Washer Superseded
Location: 69 Prev | Next Part: 10977611 *Qty: 4 Screw. hexagonal head Superseded
Location: 70 Prev | Next Part: 102810 *Qty: 1 Stud $13.81
Location: 71 Prev | Next Part: 100184 *Qty: 4 Screw $0.90
Location: 72 Prev | Next Part: 12544171 *Qty: 5 Washer Superseded
Location: 73 Prev | Next Part: 100039 *Qty: 1 Stud $21.94
Location: 74 Prev | Next Part: 102810 *Qty: 1 Stud $13.81
Location: 75 Prev | Next Part: 10257060 *Qty: 2 Gasket $0.90
Location: 76 Prev | Next Part: 13450621 *Qty: 1 Stud $3.62
Location: 77 Prev | Next Part: 11198371 *Qty: 4 Washer $0.90
Location: 78 Prev | Next Part: 12164721 *Qty: 4 Nut Superseded
Location: 79 Prev | Next Part: 100052 *Qty: 2 Dowel $4.55
Location: 80 Prev | Next Part: 10268450 *Qty: 2 Plug $2.95
Location: 81 Prev | Next Part: 13525870 *Qty: 2 Heli-coil $3.53
Location: 82 Prev | Next Part: 10839910 *Qty: 2 Reference dowel $1.47
Location: 83 Prev | Next Part: 122592 *Qty: 1 Sender $179.60
Location: 84 Prev | Next Part: 118261 *Qty: 1 Union for sender $178.27
Location: 85 Prev | Next Part: 104187 *Qty: 1 Stud $9.82
Location: 86 Prev | Next Part: 10268350 *Qty: 2 Plug $9.31
Location: 87 Prev | Next Part: 104186 *Qty: 1 Stud $16.81
Location: 88 Prev | Next Part: 10259960 *Qty: 1 Gasket $0.90
Location: 89 Prev | Next Part: 13539021 *Qty: 4 Stud Superseded
Location: 90 Prev | Next Part: 15896411 *Qty: 4 Nut Superseded
Location: 91 Prev | Next Part: 106849 *Qty: 4 Washer Superseded
Location: 92 Prev | Next Part: 10977521 *Qty: 1 Screw $0.90
Location: 93 Prev | Next Part: 10977521 *Qty: 4 Screw $0.90
Location: 94 Prev | Next Part: 128439 *Qty: 1 Cover $50.42
Location: 94 Prev | Next Part: 128440 *Qty: 1 Cover $50.42

* Quantity shown indicates the number of pieces used in the diagram.
