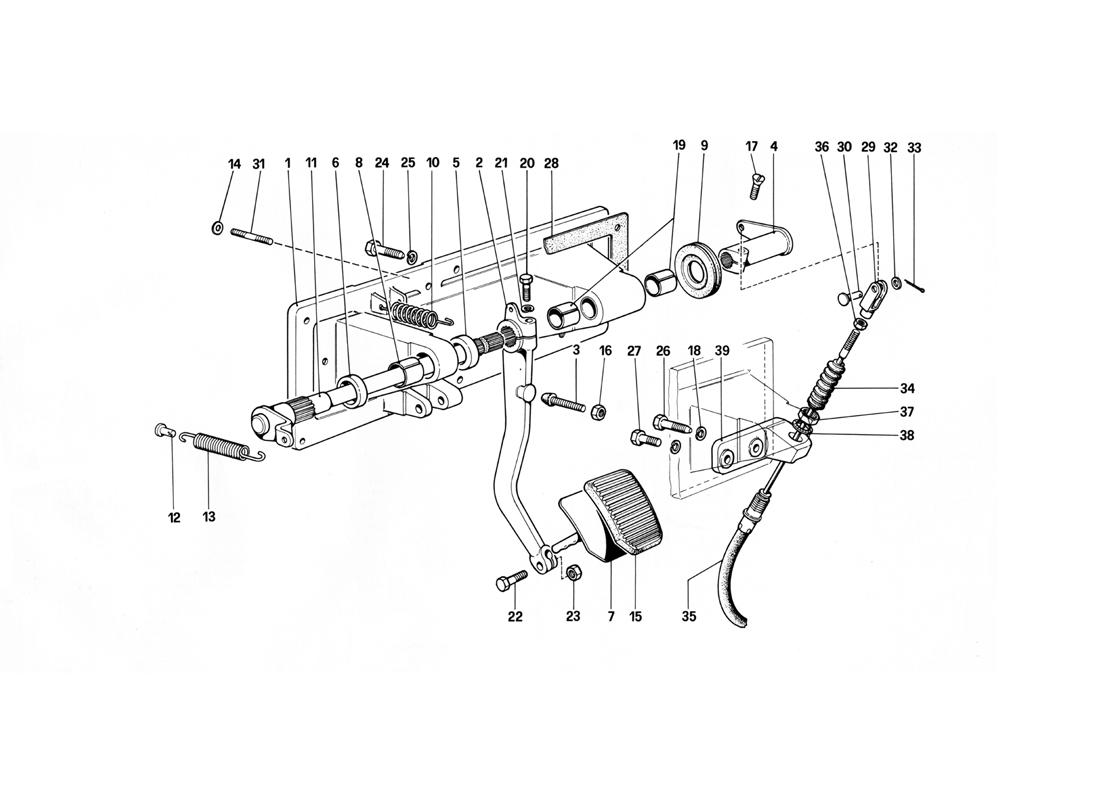

CLUTCH RELEASE CONTROL - 412 M. LHD

Go to Split View

CLUTCH RELEASE CONTROL - 412 M. LHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 117176 *Qty: 1 Support for pedal $1,615.32
Location: 2 Prev | Next Part: 101303 *Qty: 1 Clutch lever $407.51
Location: 3 Prev | Next Part: 101317 *Qty: 1 Adjuster $16.84
Location: 4 Prev | Next Part: 109395 *Qty: 1 Outer lever assembly $333.94
Location: 5 Prev | Next Part: 105257 *Qty: 1 Spacer $21.94
Location: 6 Prev | Next Part: 101313 *Qty: 1 Spacer $34.89
Location: 7 Prev | Next Part: 101302 *Qty: 1 Clutch pedal $102.21
Location: 8 Prev | Next Part: 101314 *Qty: 1 Bush $5.31
Location: 9 Prev | Next Part: 101325 *Qty: 1 Gasket Call
Location: 10 Prev | Next Part: 106344 *Qty: 1 Spring $5.87
Location: 11 Prev | Next Part: 117177 *Qty: 1 Clutch shaft and helper lever $396.19
Location: 12 Prev | Next Part: 104896 *Qty: 1 Pin $36.22
Location: 13 Prev | Next Part: 104895 *Qty: 1 Spring $9.14
Location: 14 Prev | Next Part: 107835 *Qty: 2 Washer $10.18
Location: 15 Prev | Next Part: 101307 *Qty: 1 Pedal cover $30.30
Location: 16 Prev | Next Part: 16100821 *Qty: 1 Nut $3.46
Location: 17 Prev | Next Part: 109396 *Qty: 1 Screw $1.25
Location: 18 Prev | Next Part: 12601371 *Qty: 2 Washer Superseded
Location: 19 Prev | Next Part: 100787 *Qty: 2 Bush $6.68
Location: 20 Prev | Next Part: 16043821 *Qty: 1 Bolt Superseded
Location: 21 Prev | Next Part: 10516677 *Qty: 1 Washer Superseded
Location: 22 Prev | Next Part: 101308 *Qty: 1 Bolt $10.86
Location: 23 Prev | Next Part: 101309 *Qty: 1 Nut Call
Location: 24 Prev | Next Part: 16135921 *Qty: 5 Bolt $3.74
Location: 25 Prev | Next Part: 12601371 *Qty: 5 Washer Superseded
Location: 26 Prev | Next Part: 16136221 *Qty: 1 Long bolt $0.90
Location: 27 Prev | Next Part: 16043821 *Qty: 1 Short bolt Superseded
Location: 28 Prev | Next Part: 100975 *Qty: 1 Gasket $30.81
Location: 29 Prev | Next Part: 108575 *Qty: 1 Fork $79.37
Location: 30 Prev | Next Part: 103218 *Qty: 1 Pin for fork $37.10
Location: 31 Prev | Next Part: 13449521 *Qty: 2 Stud. securing metering device support Call
Location: 32 Prev | Next Part: 13550221 *Qty: 1 Washer $0.90
Location: 33 Prev | Next Part: 10734104 *Qty: 1 Split pin Call
Location: 34 Prev | Next Part: 100858 *Qty: 1 Protective bellows Call
Location: 35 Prev | Next Part: 110020 *Qty: 1 Flexible for clutch control $67.40
Location: 36 Prev | Next Part: 100861 *Qty: 1 Locknut $0.90
Location: 37 Prev | Next Part: 100867 *Qty: 2 Nut Superseded
Location: 38 Prev | Next Part: 12605971 *Qty: 2 Washer $0.90
Location: 39 Prev | Next Part: 100966 *Qty: 1 Support for sheath $143.36

* Quantity shown indicates the number of pieces used in the diagram.
