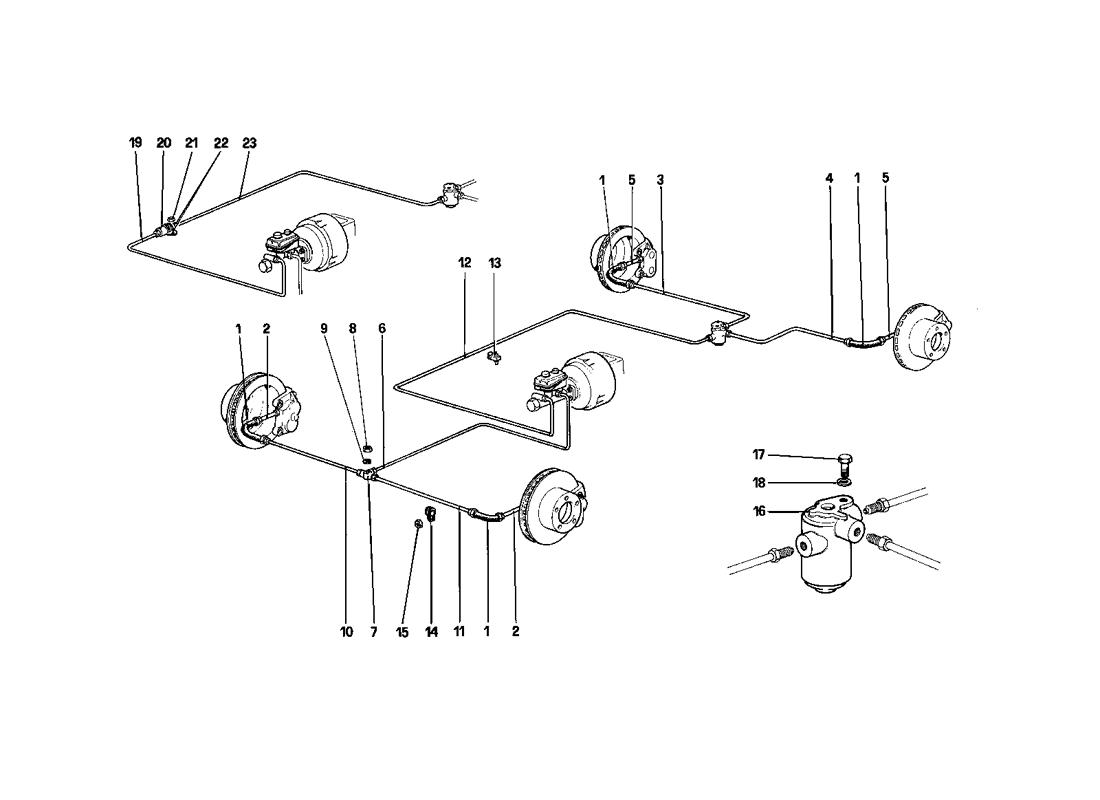

BRAKES SYSTEM

Go to Split View

BRAKES SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 116373 *Qty: 4 Hose Superseded
Location: 2 Prev | Next Part: 101395 *Qty: 2 Pipe from hose to front caliper Superseded
Location: 3 Prev | Next Part: 101407 *Qty: 1 Pipe from pressure regulator to right hose $12.44
Location: 4 Prev | Next Part: 107366 *Qty: 1 Pipe from pressure regulator to left hose $12.02
Location: 5 Prev | Next Part: 106671 *Qty: 2 Pipe from hose to rear caliper Superseded
Location: 6 Prev | Next Part: 101397 *Qty: 1 Pipe from pump to 3 way
For RHD use no. 125760
$13.13
Location: 7 Prev | Next Part: 101394 *Qty: 1 3 way union Call
Location: 8 Prev | Next Part: 12574211 *Qty: 1 Selflocking nut Superseded
Location: 9 Prev | Next Part: 12639701 *Qty: 1 Washer Call
Location: 10 Prev | Next Part: 106670 *Qty: 1 Pipe from 3 way union to right hose $13.80
Location: 11 Prev | Next Part: 105856 *Qty: 1 Pipe from 3 way union to left hose Call
Location: 12 Prev | Next Part: 119093 *Qty: 1 Pipe from pump to pressure regulator $29.44
Location: 13 Prev | Next Part: 128354 *Qty: 2 Clip $0.90
Location: 14 Prev | Next Part: 10440890 *Qty: 2 Clamp $0.90
Location: 15 Prev | Next Part: 12574211 *Qty: 2 Selflocking nut Superseded
Location: 16 Prev | Next Part: 110833 *Qty: 1 Pressure regulator $630.96
Location: 17 Prev | Next Part: 16043021 *Qty: 1 Screw $0.90
Location: 18 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 19 Prev | Next Part: 129861 *Qty: 1 Pipe from pump to 2 way union - For RHD $13.60
Location: 20 Prev | Next Part: 127505 *Qty: 1 2 way union - For RHD $10.97
Location: 21 Prev | Next Part: 12574211 *Qty: 1 Nut - For RHD Superseded
Location: 22 Prev | Next Part: 10441490 *Qty: 1 Bracket - For RHD $0.90
Location: 23 Prev | Next Part: 101408 *Qty: 1 Pipe from 2 way to pressure regulator - For RHD $57.96

* Quantity shown indicates the number of pieces used in the diagram.
