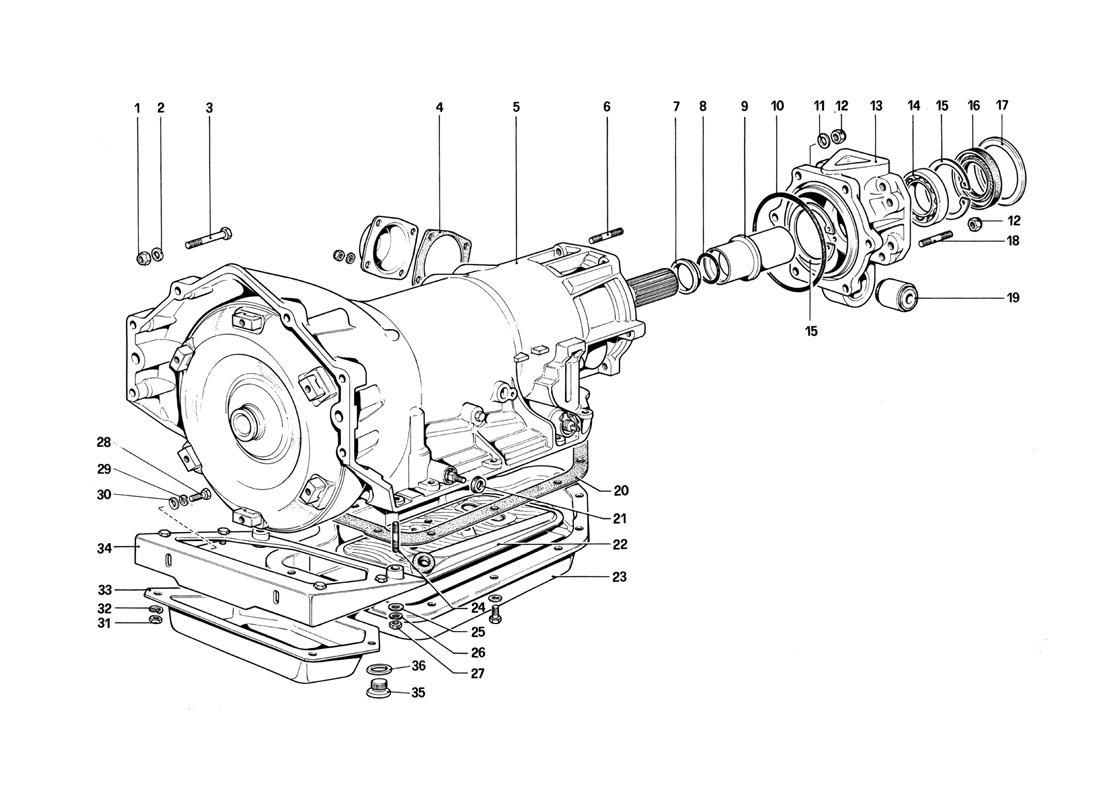

AUTOMATIC TRANSMISSION - 412 A.

Go to Split View

AUTOMATIC TRANSMISSION - 412 A.

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 12174521 *Qty: 6 Nut Call
Location: 2 Prev | Next Part: 12601471 *Qty: 12 Washer Superseded
Location: 3 Prev | Next Part: 15888721 *Qty: 6 Bolt $2.85
Location: 4 Prev | Next Part: 111684 *Qty: 1 Gasket for lateral cap $20.54
Location: 5 Prev | Next Part: 119604 *Qty: 1 Automatic transmission complete $16,754.32
Location: 6 Prev | Next Part: 100472 *Qty: 6 Stud $15.88
Location: 7 Prev | Next Part: 110999 *Qty: 1 Spacer $36.66
Location: 8 Prev | Next Part: 111000 *Qty: 1 Sealing ring $1.51
Location: 9 Prev | Next Part: 119226 *Qty: 1 Sleeve for bearing $189.34
Location: 10 Prev | Next Part: 109197 *Qty: 1 Sealing ring $9.34
Location: 11 Prev | Next Part: 12638601 *Qty: 6 Washer $0.90
Location: 12 Prev | Next Part: 13598021 *Qty: 14 Nut $4.65
Location: 13 Prev | Next Part: 109001 *Qty: 1 Transmission rear cover $895.35
Location: 14 Prev | Next Part: 109075 *Qty: 1 Bearing $15.88
Location: 15 Prev | Next Part: 11061675 *Qty: 2 Seeger $1.36
Location: 16 Prev | Next Part: 109076 *Qty: 1 Sealing ring $13.07
Location: 17 Prev | Next Part: 109077 *Qty: 1 Spacer $68.18
Location: 18 Prev | Next Part: 13546331 *Qty: 8 Stud Superseded
Location: 19 Prev | Next Part: 105634 *Qty: 1 Estenblock $113.49
Location: 20 Prev | Next Part: 111683 *Qty: 1 Gasket $29.21
Location: 21 Prev | Next Part: 109273 *Qty: 1 Gasket $5.37
Location: 22 Prev | Next Part: 111682 *Qty: 1 Oil filter for automatic $42.78
Location: 23 Prev | Next Part: 124001 *Qty: 1 Oil sump $710.91
Location: 24 Prev | Next Part: 13543721 *Qty: 2 Stud $0.90
Location: 25 Prev | Next Part: 12646701 *Qty: 2 Washer Superseded
Location: 26 Prev | Next Part: 106852 *Qty: 2 Spring washer Superseded
Location: 27 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 28 Prev | Next Part: 16043421 *Qty: 2 Bolt Superseded
Location: 29 Prev | Next Part: 106852 *Qty: 2 Spring washer Superseded
Location: 30 Prev | Next Part: 12646701 *Qty: 2 Washer Superseded
Location: 31 Prev | Next Part: 16100811 *Qty: 4 Nut Superseded
Location: 32 Prev | Next Part: 106852 *Qty: 4 Spring washer Superseded
Location: 33 Prev | Next Part: 126470 *Qty: 1 Lower housing. protecting automatic transmission $80.54
Location: 34 Prev | Next Part: 126216 *Qty: 1 Stiffening plate. securing automatic transmission $168.80
Location: 35 Prev | Next Part: 10275040 *Qty: 1 Plug Superseded
Location: 36 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded

* Quantity shown indicates the number of pieces used in the diagram.
