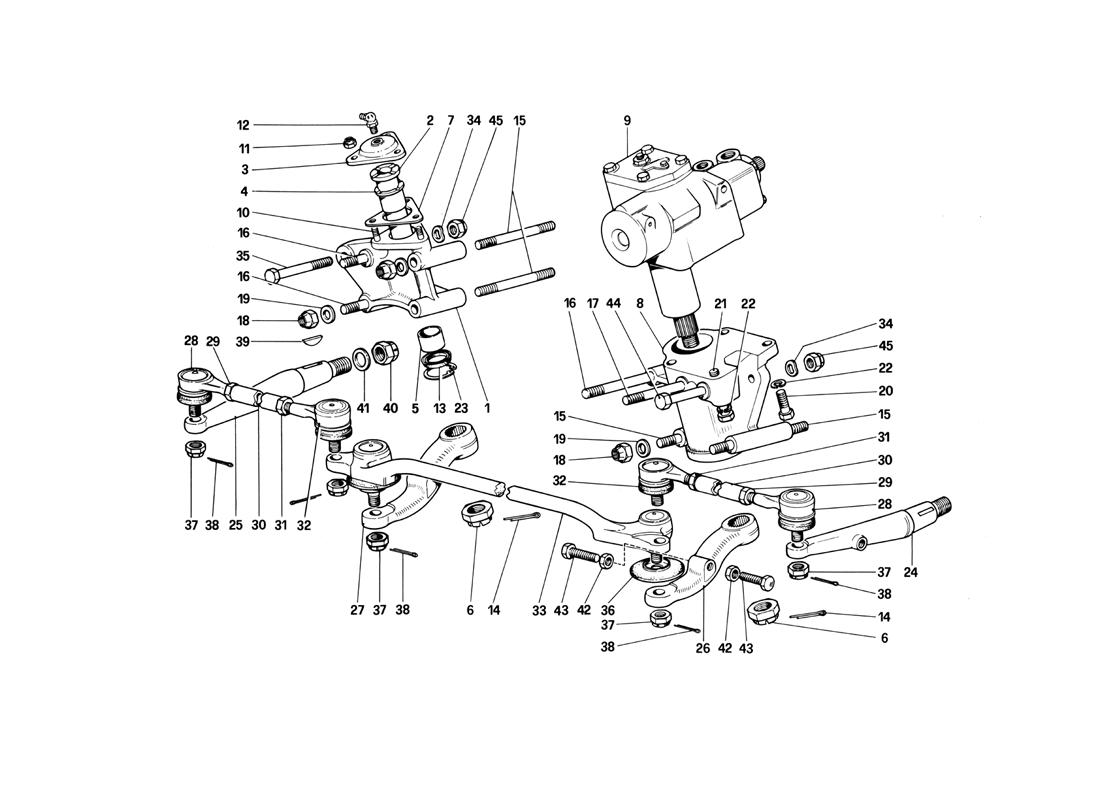

STEERING LINKAGE

Go to Split View

STEERING LINKAGE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 101120 *Qty: 1 Supporto perno per leva di rinvio
Non vale per GD
$795.76
Location: 1 Prev | Next Part: 104112 *Qty: 1 Supporto perno per leva di rinvio
Vale per GD
$947.47
Location: 2 Prev | Next Part: 101127 *Qty: 1 Perno per leva di rinvio Call
Location: 3 Prev | Next Part: 101128 *Qty: 1 Coperchio $159.38
Location: 4 Prev | Next Part: 101129 *Qty: 1 Boccola superiore Call
Location: 5 Prev | Next Part: 101130 *Qty: 1 Boccola inferiore $96.67
Location: 6 Prev | Next Part: 101147 *Qty: 2 Dado coronato $23.62
Location: 7 Prev | Next Part: 101134 *Qty: 1 Distanziale $11.32
Location: 8 Prev | Next Part: 104111 *Qty: 1 Supporto scatola guida per GD $787.85
Location: 8 Prev | Next Part: 101133 *Qty: 1 Supporto scatola guida per GS $853.52
Location: 9 Prev | Next Part: 103645 *Qty: 1 Scatola guida per GD $3,948.32
Location: 9 Prev | Next Part: 101112 *Qty: 1 Scatola guida per GS Call
Location: 10 Prev | Next Part: 13516621 *Qty: 3 THREADED STUD $0.90
Location: 11 Prev | Next Part: 101139 *Qty: 3 Dado $0.90
Location: 12 Prev | Next Part: 101140 *Qty: 1 Ingrassatore $3.17
Location: 13 Prev | Next Part: 101141 *Qty: 1 Anello di tenuta $22.66
Location: 14 Prev | Next Part: 10735001 *Qty: 2 Copiglia $1.40
Location: 15 Prev | Next Part: 101144 *Qty: 4 THREADED STUD $24.24
Location: 16 Prev | Next Part: 101143 *Qty: 3 THREADED STUD $23.09
Location: 17 Prev | Next Part: 101116 *Qty: 1 THREADED STUD $18.12
Location: 18 Prev | Next Part: 101146 *Qty: 8 Dado $7.04
Location: 19 Prev | Next Part: 10730821 *Qty: 8 Rondella
Per 400 automatic q = 4
Superseded
Location: 20 Prev | Next Part: 101117 *Qty: 2 Bullone corto $19.25
Location: 21 Prev | Next Part: 101118 *Qty: 2 Bullone lungo $24.24
Location: 22 Prev | Next Part: 10517070 *Qty: 4 Rosetta Superseded
Location: 23 Prev | Next Part: 101142 *Qty: 1 Anello interno $2.96
Location: 24 Prev | Next Part: 101149 *Qty: 1 Leva sul fuso a snodo sinistro $449.40
Location: 25 Prev | Next Part: 101150 *Qty: 1 Leva sul fuso a snodo destro $449.40
Location: 26 Prev | Next Part: 101123 *Qty: 1 Leva sulla scatola guida $321.48
Location: 27 Prev | Next Part: 101122 *Qty: 1 Leva sul rinvio $342.97
Location: 28 Prev | Next Part: 101155 *Qty: 2 Perno sferico laterale Superseded
Location: 29 Prev | Next Part: 101156 *Qty: 2 Dado ? 16 x 1 destro $19.21
Location: 30 Prev | Next Part: 101157 *Qty: 2 Tirante laterale $88.07
Location: 31 Prev | Next Part: 101158 *Qty: 2 Dado ? 16 x 1 sinistro $8.44
Location: 32 Prev | Next Part: 101159 *Qty: 2 Perno sferico passo sinistro $157.44
Location: 33 Prev | Next Part: 104865 *Qty: 1 Assieme perno sferico su leva guida e rinvio Call
Location: 34 Prev | Next Part: 12601571 *Qty: 2 Rondella $0.90
Location: 35 Prev | Next Part: 15541621 *Qty: 1 Bullone $33.70
Location: 36 Prev | Next Part: 101168 *Qty: 2 Gommino $16.15
Location: 37 Prev | Next Part: 10793421 *Qty: 6 Dado $2.96
Location: 38 Prev | Next Part: 10734600 *Qty: 6 Copiglia $0.90
Location: 39 Prev | Next Part: 10206420 *Qty: 2 Chiavetta $1.48
Location: 40 Prev | Next Part: 12575121 *Qty: 2 Dado autobloccante $2.96
Location: 41 Prev | Next Part: 10731101 *Qty: 2 Rondella $1.72
Location: 42 Prev | Next Part: 12164721 *Qty: 2 Dado registro sterzo Superseded
Location: 43 Prev | Next Part: 101151 *Qty: 2 Bullone registrazione arresto fermata $4.75
Location: 44 Prev | Next Part: 15541721 *Qty: 1 Bullone $1.12
Location: 45 Prev | Next Part: 16105121 *Qty: 2 Dado Superseded

* Quantity shown indicates the number of pieces used in the diagram.
