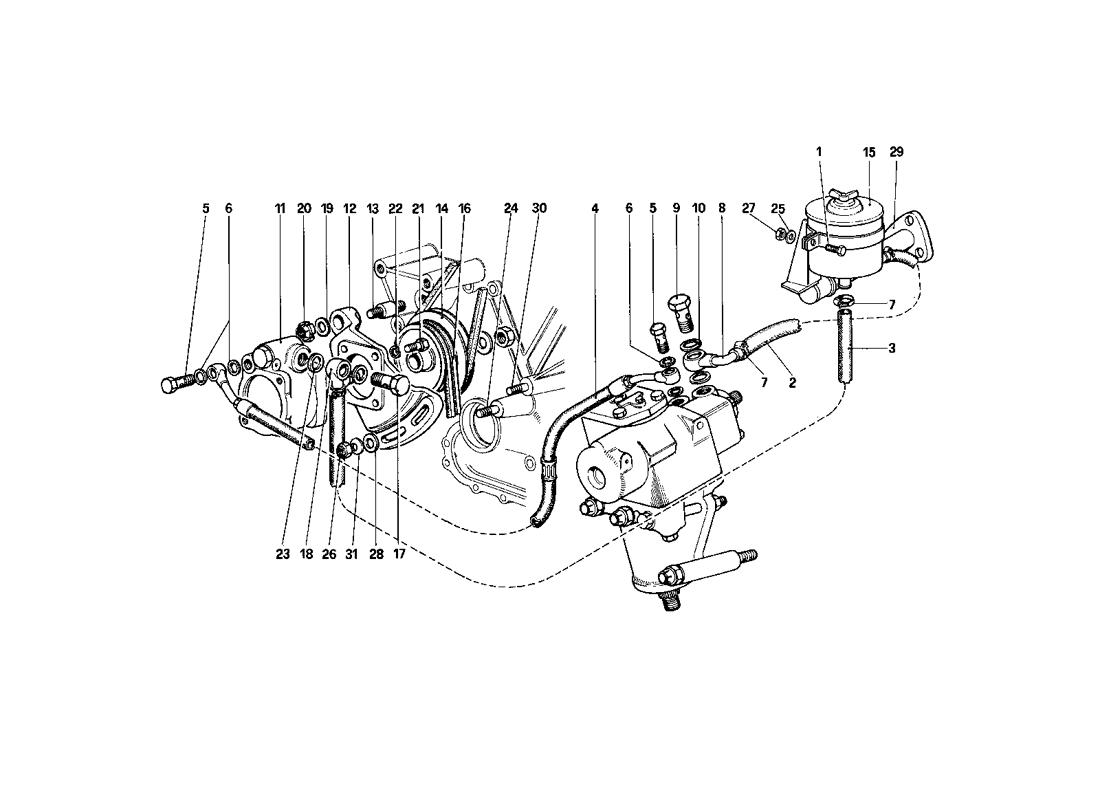

HYDRAULIC STEERING SYSTEM

Go to Split View

HYDRAULIC STEERING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 16843421 *Qty: 1 Bullone Call
Location: 2 Prev | Next Part: 113315 *Qty: 1 Tubo dalla scatola guida a! serbatoio $4.90
Location: 3 Prev | Next Part: 105846 *Qty: 1 Tubo collegamento pompa guida al serbatoio
Non vale per GD Non vale per GD
$45.29
Location: 4 Prev | Next Part: 101170 *Qty: 1 Tubo dalla pompa alla scatola guida $298.18
Location: 5 Prev | Next Part: 103402 *Qty: 2 Bocchettone per tubo mandata olio dalla $47.81
Location: 6 Prev | Next Part: 10280060 *Qty: 4 pompa alia scatola guida Guarnizione $0.90
Location: 7 Prev | Next Part: 12179590 *Qty: 4 Fascetta Superseded
Location: 8 Prev | Next Part: 113314 *Qty: 1 Tubo con orientabile $45.07
Location: 9 Prev | Next Part: 102632 *Qty: 1 Bocchettone $59.52
Location: 10 Prev | Next Part: 10257060 *Qty: 2 Guarnizione $0.90
Location: 11 Prev | Next Part: 100513 *Qty: 1 Pompa guida idraulica completa di dado Call
Location: 12 Prev | Next Part: 100515 *Qty: 1 rondella e linguetta Supporto pompa scatola guida idraulica $386.38
Location: 13 Prev | Next Part: 100518 *Qty: 1 Perno per supporto $101.34
Location: 14 Prev | Next Part: 100514 *Qty: 1 Puleggia sulla pompa $393.39
Location: 15 Prev | Next Part: 100517 *Qty: 1 Serbatoio per pompa guida idraulica
Non vale per GD
$455.27
Location: 16 Prev | Next Part: 100516 *Qty: 2 Cinghia comando pompa guida idraulica $38.68
Location: 17 Prev | Next Part: 100508 *Qty: 1 Bocchettone $87.08
Location: 18 Prev | Next Part: 102629 *Qty: 1 Orientabile (per GS)
In alternativa n. 104805
$24.26
Location: 19 Prev | Next Part: 12646901 *Qty: 1 Rondella $1.11
Location: 20 Prev | Next Part: 101242 *Qty: 1 Ghiera $4.55
Location: 21 Prev | Next Part: 16043821 *Qty: 4 Bullone Superseded
Location: 22 Prev | Next Part: 11198073 *Qty: 4 Rondella $0.90
Location: 23 Prev | Next Part: 10259960 *Qty: 2 Guarnizione $0.90
Location: 24 Prev | Next Part: 13449821 *Qty: 1 Prigioniero fissaggio supporto $1.10
Location: 25 Prev | Next Part: 106852 *Qty: 1 Rondella Superseded
Location: 26 Prev | Next Part: 12574521 *Qty: 2 Dado $0.90
Location: 27 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 28 Prev | Next Part: 13550421 *Qty: 2 Rondella $0.90
Location: 29 Prev | Next Part: 113900 *Qty: 1 Supporto serbatoio e generatore
Non vale per GD
$506.64
Location: 30 Prev | Next Part: 13450121 *Qty: 1 THREADED STUD Superseded
Location: 31 Prev | Next Part: 10413770 *Qty: 2 Rondella $0.90

* Quantity shown indicates the number of pieces used in the diagram.
