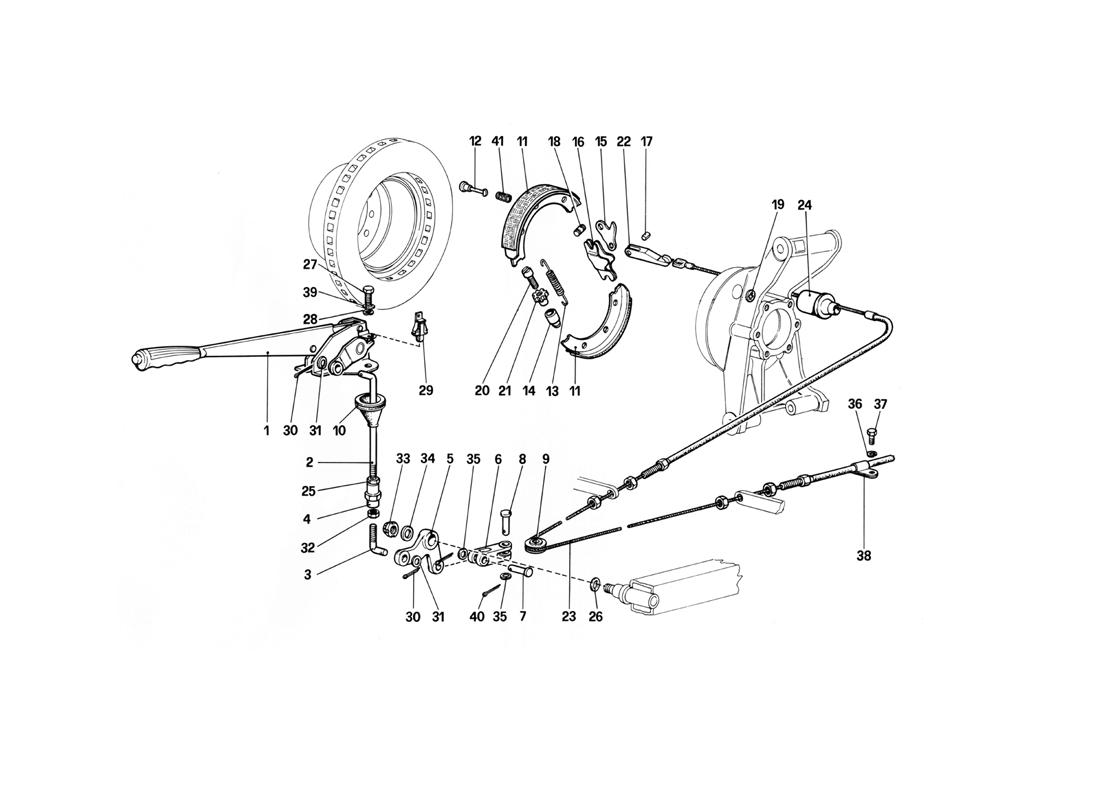

HAND-BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 110071 *Qty: 1 Assieme leva comando freno a mano $531.34
Location: 2 Prev | Next Part: 105291 *Qty: 1 Tirante superiore $18.12
Location: 3 Prev | Next Part: 101190 *Qty: 1 Tirante inferiore $33.05
Location: 4 Prev | Next Part: 101192 *Qty: 1 Registro per tiranti $52.97
Location: 5 Prev | Next Part: 101193 *Qty: 1 Leva di rinvio $278.47
Location: 6 Prev | Next Part: 101194 *Qty: 1 Forcellino $187.46
Location: 7 Prev | Next Part: 101195 *Qty: 1 Perno per forcellino Call
Location: 8 Prev | Next Part: 101196 *Qty: 1 Perno per forcellino $48.45
Location: 9 Prev | Next Part: 101197 *Qty: 1 Carrucola $38.26
Location: 10 Prev | Next Part: 101187 *Qty: 1 Soffietto $38.54
Location: 11 Prev | Next Part: 101270 *Qty: 4 Ceppo freno Superseded
Location: 12 Prev | Next Part: 101275 *Qty: 4 Perno fissaggio molla $18.56
Location: 13 Prev | Next Part: 101276 *Qty: 4 Molla richiamo ceppi $14.02
Location: 14 Prev | Next Part: 101279 *Qty: 2 Sede per vite $12.98
Location: 15 Prev | Next Part: 101280 *Qty: 2 Leva di comando interna $29.70
Location: 16 Prev | Next Part: 101281 *Qty: 2 Leva di comando esterna $7.00
Location: 17 Prev | Next Part: 101282 *Qty: 2 Perno $1.32
Location: 18 Prev | Next Part: 101283 *Qty: 2 Perno per snodo $3.71
Location: 19 Prev | Next Part: 101284 *Qty: 4 Piattello per molla Call
Location: 20 Prev | Next Part: 101285 *Qty: 2 Perno filettato $8.02
Location: 21 Prev | Next Part: 101286 *Qty: 2 Dado per vite $15.26
Location: 22 Prev | Next Part: 105270 *Qty: 2 Forcellino comando leva interna $52.16
Location: 23 Prev | Next Part: 106823 *Qty: 1 Fune complete per comando freno $134.95
Location: 24 Prev | Next Part: 106824 *Qty: 2 Coperchio tubo arresto guaina $133.58
Location: 25 Prev | Next Part: 16102911 *Qty: 1 Dado
Filetto Sx.
Superseded
Location: 26 Prev | Next Part: 100853 *Qty: 1 Rondella $16.29
Location: 27 Prev | Next Part: 16043221 *Qty: 3 Bullone $0.90
Location: 28 Prev | Next Part: 10516677 *Qty: 3 Rondella Superseded
Location: 29 Prev | Next Part: 105949 *Qty: 1 Interruttoreperspia $34.41
Location: 30 Prev | Next Part: 10734301 *Qty: 2 Copiglia $0.90
Location: 31 Prev | Next Part: 12625221 *Qty: 2 Rondella Superseded
Location: 32 Prev | Next Part: 16102321 *Qty: 1 Dado $0.90
Location: 33 Prev | Next Part: 100865 *Qty: 1 Ghiera $13.59
Location: 34 Prev | Next Part: 10730921 *Qty: 1 Rondella $0.90
Location: 35 Prev | Next Part: 10519601 *Qty: 2 Rosetta di rasamento Superseded
Location: 36 Prev | Next Part: 12601271 *Qty: 2 Rondella Superseded
Location: 37 Prev | Next Part: 101205 *Qty: 2 Bullone $0.90
Location: 38 Prev | Next Part: 103529 *Qty: 2 Fascetta per guaina $4.32
Location: 39 Prev | Next Part: 10519621 *Qty: 3 Rondella $0.90
Location: 40 Prev | Next Part: 10734201 *Qty: 2 Copiglia Call
Location: 41 Prev | Next Part: 101277 *Qty: 4 Molla $0.90

* Quantity shown indicates the number of pieces used in the diagram.
