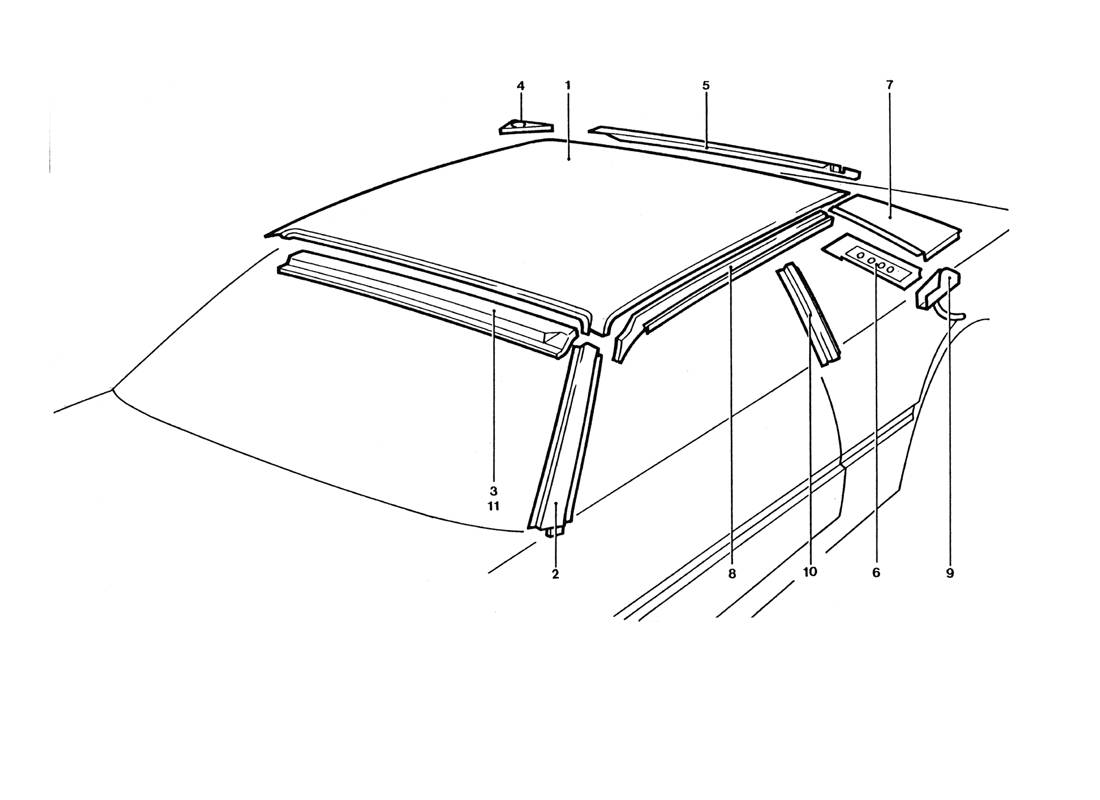

GRUPPO OSSATURA RIVESTIMENTO TETTO

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 255-14-002 *Qty: 1 Covering
Rivestimento
Call
Location: 2 Prev | Next Part: 255-14-040 *Qty: 1 Pillar
Montantino Ds.
Call
Location: 2 Prev | Next Part: 255-14-041 *Qty: 1 Pillar
Montantino Sn.
Call
Location: 3 Prev | Next Part: 258-14-060 *Qty: 1 Crossrail
TraversaG.D.
Call
Location: 3 Prev | Next Part: 257-14-060 *Qty: 1 Crossrail
Traversa G.S.
Call
Location: 3 Prev | Next Part: 256-14-060 *Qty: 1 Crossrail
Traversa G.D.
Call
Location: 3 Prev | Next Part: 255-14-060 *Qty: 1 Crossrail
Traversa G.S.
Call
Location: 4 Prev | Next Part: 255-14-090 *Qty: 4 Corner
Cantonale
Call
Location: 5 Prev | Next Part: 255-14-106 *Qty: 1 Crossrail
Traversa
Call
Location: 6 Prev | Next Part: 255-14-135 *Qty: 1 Pillar
Montante Sn.
Call
Location: 6 Prev | Next Part: 256-15-134 *Qty: 1 Pillar
Montante Ds.
Call
Location: 6 Prev | Next Part: 256-15-135 *Qty: 1 Pillar
Montante Sn.
Call
Location: 6 Prev | Next Part: 255-14-134 *Qty: 1 Pillar
Montante Ds.
Call
Location: 7 Prev | Next Part: 255-14-144 *Qty: 1 Covering
Rivestimento Ds.
Call
Location: 7 Prev | Next Part: 255-14-145 *Qty: 1 Covering
Rivestimento Sn.
Call
Location: 8 Prev | Next Part: 255-14-150 *Qty: 1 Side rail
Longherina Ds. G.D.
Call
Location: 8 Prev | Next Part: 255-14-151 *Qty: 1 Side rail
Longherina Sn. G.S.
Call
Location: 8 Prev | Next Part: 257-14-150 *Qty: 1 Side rail
Longherina Ds. G.S.
Call
Location: 8 Prev | Next Part: 258-14-151 *Qty: 1 Side rail
Longherina Sn. G.D.
Call
Location: 9 Prev | Next Part: 255-14-251 *Qty: 1 Spout
Vaschetta Sn.
Call
Location: 9 Prev | Next Part: 255-14-250 *Qty: 1 Spout
Vaschetta Ds.
Call
Location: 10 Prev | Next Part: 256-15-020 *Qty: 1 Pillar
Montante Ds.
Call
Location: 10 Prev | Next Part: 256-15-021 *Qty: 1 Pillar
Montante Sn.
Call
Location: 11 Prev | Next Part: 257-14-060 *Qty: 1 Crossrail
Traversa G.S.
Call
Location: 11 Prev | Next Part: 258-14-060 *Qty: 1 Crossrail
Traversa G.D.
Call

* Quantity shown indicates the number of pieces used in the diagram.
