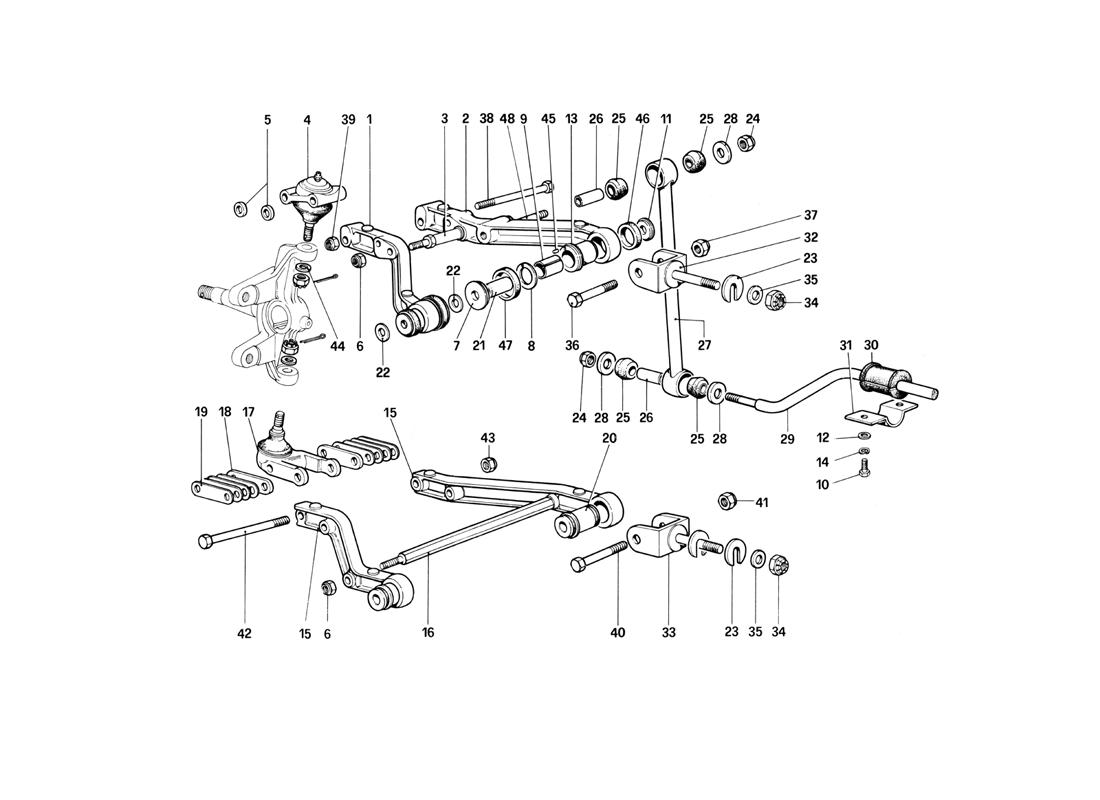

FRONT SUSPENSION - WISHBONES

Go to Split View

FRONT SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100991 *Qty: 1 Braccio posteriore Dx. $610.14
Location: 1 Prev | Next Part: 100994 *Qty: 1 Braccio posteriore Sx. $610.14
Location: 2 Prev | Next Part: 100992 *Qty: 1 Braccio anteriore Dx. $594.28
Location: 2 Prev | Next Part: 100993 *Qty: 1 Braccio anteriore Sx. $521.83
Location: 3 Prev | Next Part: 117615 *Qty: 2 Distanziale per leve superiori $76.97
Location: 4 Prev | Next Part: 101441 *Qty: 2 Giunto sferico
Dopo esaurimento vale n. 116280
Superseded
Location: 5 Prev | Next Part: 101001 *Qty: 4 Distanziale $25.58
Location: 6 Prev | Next Part: 12557621 *Qty: 8 Dado Superseded
Location: 7 Prev | Next Part: 109901 *Qty: 4 Rondelladi rasamento $71.98
Location: 8 Prev | Next Part: 101009 *Qty: 4 Rondella di rasamento $13.09
Location: 9 Prev | Next Part: 101010 *Qty: 4 Boccola per supporto leve $7.22
Location: 10 Prev | Next Part: 106002 *Qty: 4 Bullone f issaggio staffa $1.26
Location: 11 Prev | Next Part: 105443 *Qty: 4 Rondella tenuta boccole $17.43
Location: 12 Prev | Next Part: 12625221 *Qty: 4 Rondella Superseded
Location: 13 Prev | Next Part: 105446 *Qty: 4 Boccola ester na leva superiore $58.41
Location: 14 Prev | Next Part: 10516671 *Qty: 4 Rondella Superseded
Location: 15 Prev | Next Part: 100995 *Qty: 4 Braccio leva $541.08
Location: 16 Prev | Next Part: 101020 *Qty: 2 Distanziale per leve inferiori $230.92
Location: 17 Prev | Next Part: 101442 *Qty: 2 Giunto sferico
Dopo esaurimento vale n. 1 14462
Superseded
Location: 18 Prev | Next Part: 101021 *Qty: 4 Piastrina $6.33
Location: 19 Prev | Next Part: 101022 *Qty: 16 Piastrina per registrazione chasse $1.91
Location: 20 Prev | Next Part: 111617 *Qty: 4 Flanbloc per leve inferior! sospensioni Superseded
Location: 21 Prev | Next Part: 109904 *Qty: 4 Distanziale $141.06
Location: 22 Prev | Next Part: 113330 *Qty: 4 Idem sp. 2.6 mm.
Di eventuate montaggio
Call
Location: 22 Prev | Next Part: 113329 *Qty: 4 Idem sp. 2.8 mm.
Di eventuate montaggio
$7.24
Location: 22 Prev | Next Part: 113328 *Qty: 4 Idem sp. 3 mm.
Di eventuate montaggio
Call
Location: 22 Prev | Next Part: 113327 *Qty: 4 Idem sp. 3.2 mm.
Di eventuate montaggio
Call
Location: 22 Prev | Next Part: 113326 *Qty: 4 Idem sp. 3.4 mm.
Di eventuate montaggio
$8.16
Location: 22 Prev | Next Part: 113325 *Qty: 4 Idem sp. 3.6 mm.
Di eventuate montaggio
Call
Location: 22 Prev | Next Part: 113324 *Qty: 4 Idem sp. 3.8 mm.
Di eventuate montaggio
Call
Location: 22 Prev | Next Part: 113333 *Qty: 4 Idemsp. 2 mm.
Di eventuate montaggio
Call
Location: 22 Prev | Next Part: 101004 *Qty: 4 Rondelta di rasamento Call
Location: 22 Prev | Next Part: 113332 *Qty: 4 Idem sp. 2.2 mm.
Di eventuate montaggio
Call
Location: 22 Prev | Next Part: 113331 *Qty: 4 Idem sp. 2.4 mm.
Di eventuate montaggio
Call
Location: 23 Prev | Next Part: 107338 *Qty: 10 Idem sp. 1.5 mm.
Di eventuate montaggio
$2.00
Location: 23 Prev | Next Part: 107339 *Qty: 10 Idem sp. 2 mm.
Di eventuate montaggio
$2.00
Location: 23 Prev | Next Part: 107341 *Qty: 10 Idem sp. 3 mm.
Di eventuate montaggio
$2.00
Location: 23 Prev | Next Part: 107342 *Qty: 10 Idem sp. 3.25 mm.
Di eventuate montaggio
$1.18
Location: 23 Prev | Next Part: 101039 *Qty: 10 Idemsp. 1 mm.
Di eventuate montaggio
$2.00
Location: 23 Prev | Next Part: 107340 *Qty: 10 Rondella di rasamento sp. 2.5 mm. $2.00
Location: 24 Prev | Next Part: 16105121 *Qty: 4 Dado Superseded
Location: 25 Prev | Next Part: 100984 *Qty: 8 Gommino per brtcottino $15.95
Location: 26 Prev | Next Part: 100985 *Qty: 4 Distanziale $27.55
Location: 27 Prev | Next Part: 100986 *Qty: 2 Biscottino per barra stabilizzatrice $187.46
Location: 28 Prev | Next Part: 105334 *Qty: 6 Rondella $38.14
Location: 29 Prev | Next Part: 101046 *Qty: 1 Barra stabilizzatrice $1,088.96
Location: 30 Prev | Next Part: 108744 *Qty: 2 Gommino tenuta barra $23.60
Location: 31 Prev | Next Part: 101050 *Qty: 2 Staffa inf eriore tenuta barra $9.82
Location: 32 Prev | Next Part: 101002 *Qty: 2 Forcetla attacco leva at tetaio $238.85
Location: 33 Prev | Next Part: 101035 *Qty: 4 Forcella attacco leva al telaio $192.66
Location: 34 Prev | Next Part: 101040 *Qty: 6 Dado fissaggio forcelle $4.42
Location: 35 Prev | Next Part: 101041 *Qty: 6 Rondella $0.90
Location: 36 Prev | Next Part: 15541121 *Qty: 2 Bullone $4.90
Location: 37 Prev | Next Part: 16105121 *Qty: 2 Dado Superseded
Location: 38 Prev | Next Part: 101443 *Qty: 4 Bullone fissaggio giunto sferico Superseded
Location: 39 Prev | Next Part: 12575621 *Qty: 4 Dado Superseded
Location: 40 Prev | Next Part: 15541321 *Qty: 4 Bullone fissaggio leva inferiore $1.34
Location: 41 Prev | Next Part: 16105121 *Qty: 4 Dado Superseded
Location: 42 Prev | Next Part: 101444 *Qty: 2 Bullone fissaggio giunto $46.18
Location: 43 Prev | Next Part: 12575621 *Qty: 2 Dado Superseded
Location: 44 Prev | Next Part: 101445 *Qty: 4 Rondella $0.90
Location: 45 Prev | Next Part: 100796 *Qty: 4 Grano centraggio $5.53
Location: 46 Prev | Next Part: 105343 *Qty: 4 Gommino parapolvere piccolo $14.54
Location: 47 Prev | Next Part: 105342 *Qty: 4 Gommino parapolvere grande $12.64
Location: 48 Prev | Next Part: 100979 *Qty: 2 THREADED STUD $104.14

* Quantity shown indicates the number of pieces used in the diagram.
