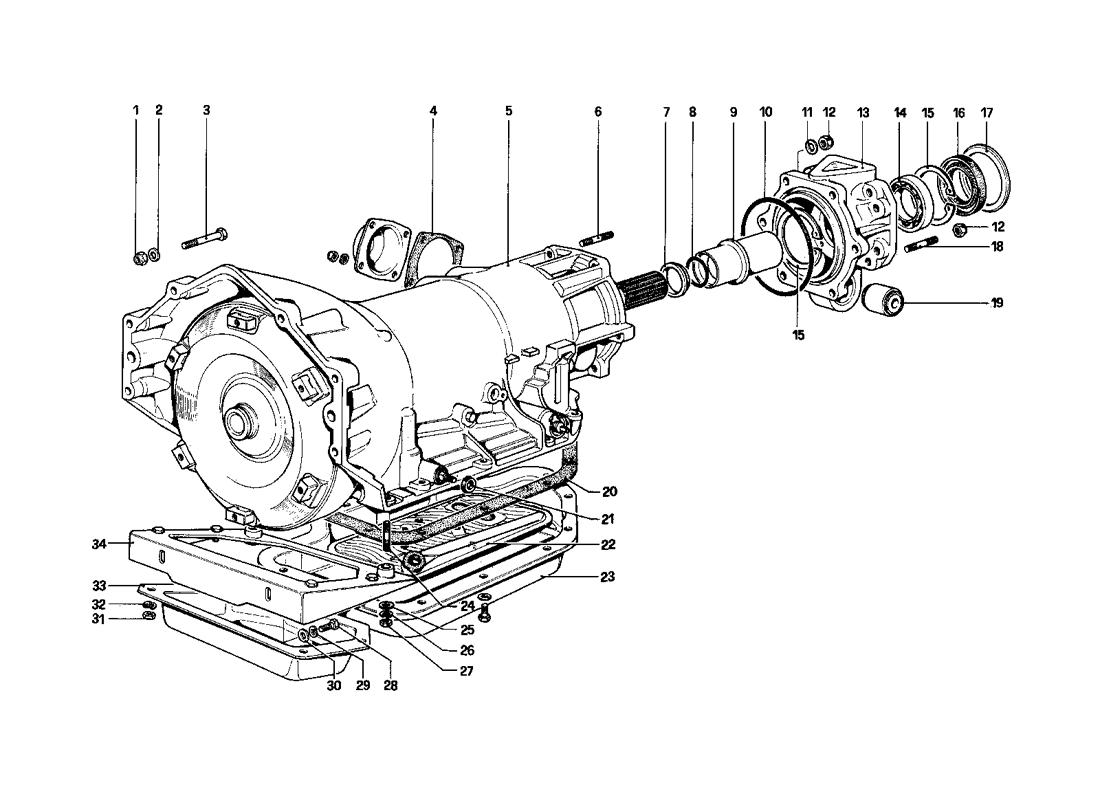

AUTOMATIC TRANSMISSION (400 AUTOMATIC)

Go to Split View

AUTOMATIC TRANSMISSION (400 AUTOMATIC)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 12574521 *Qty: 6 Dado $0.90
Location: 2 Prev | Next Part: 12601471 *Qty: 12 Rondella Superseded
Location: 3 Prev | Next Part: 15888731 *Qty: 6 Bullone Call
Location: 4 Prev | Next Part: 111684 *Qty: 1 Guarnizione coperchietto laterale $20.54
Location: 5 Prev | Next Part: 116311 *Qty: 1 Cambio automatico complete di coppa Call
Location: 6 Prev | Next Part: 100472 *Qty: 6 THREADED STUD $15.88
Location: 7 Prev | Next Part: 110999 *Qty: 1 Distanziale $36.66
Location: 8 Prev | Next Part: 111000 *Qty: 1 Anello di tenuta $1.51
Location: 9 Prev | Next Part: 119226 *Qty: 1 Manicotto per cuscinetto $189.34
Location: 10 Prev | Next Part: 109197 *Qty: 1 Anello di tenuta $9.34
Location: 11 Prev | Next Part: 12638601 *Qty: 6 Rondella $0.90
Location: 12 Prev | Next Part: 13598021 *Qty: 14 Dado $4.65
Location: 13 Prev | Next Part: 109001 *Qty: 1 Coperchio posteriore cambio $895.35
Location: 14 Prev | Next Part: 109075 *Qty: 1 Cuscinetto $15.88
Location: 15 Prev | Next Part: 11061675 *Qty: 2 Seeger $1.36
Location: 16 Prev | Next Part: 109076 *Qty: 1 Anello di tenuta $13.07
Location: 17 Prev | Next Part: 109077 *Qty: 1 Distanziale $68.18
Location: 18 Prev | Next Part: 13546331 *Qty: 8 THREADED STUD Superseded
Location: 19 Prev | Next Part: 105634 *Qty: 1 Esten block $113.49
Location: 20 Prev | Next Part: 111683 *Qty: 1 Guatnizione coppa $29.21
Location: 21 Prev | Next Part: 109273 *Qty: 1 Guarnizione $5.37
Location: 22 Prev | Next Part: 111682 *Qty: 1 Filtro olio cambio automatico $42.78
Location: 23 Prev | Next Part: 111686 *Qty: 1 Coppa olio Call
Location: 24 Prev | Next Part: 13543721 *Qty: 2 THREADED STUD $0.90
Location: 25 Prev | Next Part: 12646701 *Qty: 2 Rondella Superseded
Location: 26 Prev | Next Part: 106852 *Qty: 2 Rondella elastica Superseded
Location: 27 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 28 Prev | Next Part: 16043421 *Qty: 2 Bullone Superseded
Location: 29 Prev | Next Part: 106852 *Qty: 2 Rondella elastica Superseded
Location: 30 Prev | Next Part: 12646701 *Qty: 2 Rondella Superseded
Location: 31 Prev | Next Part: 16100811 *Qty: 4 Dado Superseded
Location: 32 Prev | Next Part: 106852 *Qty: 4 Rondella elastica Superseded
Location: 33 Prev | Next Part: 109946 *Qty: 1 Coppa inferiore riparo cambio automatico $80.32
Location: 34 Prev | Next Part: 109947 *Qty: 1 Piastra di rinforzo fissaggio cambio automatico $478.61

* Quantity shown indicates the number of pieces used in the diagram.
