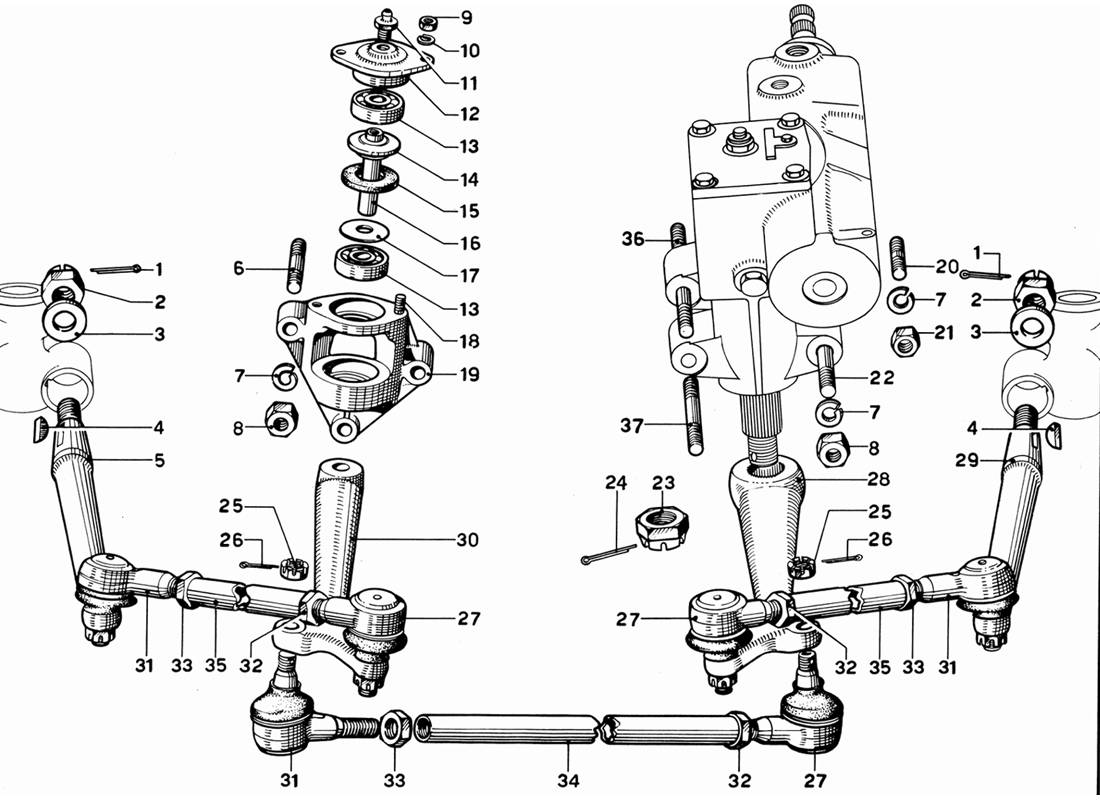

STEERING LINKAGE

Go to Split View

STEERING LINKAGE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: C 1 *Qty: 2 Split Pin Call
Location: 2 Prev | Next Part: 94313 *Qty: 2 Nut Call
Location: 3 Prev | Next Part: 94314 *Qty: 2 Washer $4.52
Location: 4 Prev | Next Part: 94629 *Qty: 2 KEY Superseded
Location: 5 Prev | Next Part: 76338 *Qty: 1 LEVER $306.76
Location: 6 Prev | Next Part: P 1 *Qty: 3 THREADED STUD Call
Location: 7 Prev | Next Part: REG 10 *Qty: 7 Washer Call
Location: 8 Prev | Next Part: 10x1.5 UNI *Qty: 6 Nut Call
Location: 9 Prev | Next Part: 6x1UNI 558 *Qty: 2 Nut Call
Location: 10 Prev | Next Part: REG 6 *Qty: 2 Washer Call
Location: 11 Prev | Next Part: TWO B FIG *Qty: 1 Ingrassatore per perno leva rinvio Call
Location: 12 Prev | Next Part: 76379 *Qty: 1 Coperchietto Call
Location: 13 Prev | Next Part: 92855 *Qty: 2 Bearing Call
Location: 14 Prev | Next Part: 76319 *Qty: 1 Spacer Call
Location: 15 Prev | Next Part: 76321 *Qty: 1 Gasket or Seal Call
Location: 16 Prev | Next Part: 76378 *Qty: 1 Pivot Call
Location: 17 Prev | Next Part: 76217 *Qty: 1 Washer $1.97
Location: 18 Prev | Next Part: P 1 *Qty: 2 THREADED STUD Call
Location: 19 Prev | Next Part: 76377 *Qty: 1 Support Call
Location: 20 Prev | Next Part: P 5 *Qty: 1 THREADED STUD Call
Location: 21 Prev | Next Part: 95199 *Qty: 1 Nut Call
Location: 22 Prev | Next Part: P 5 *Qty: 1 THREADED STUD Call
Location: 23 Prev | Next Part: 75257 *Qty: 1 Nut Superseded
Location: 24 Prev | Next Part: C 1 *Qty: 1 Split Pin Call
Location: 25 Prev | Next Part: DIN. 937 *Qty: 6 Nut Call
Location: 26 Prev | Next Part: C 1 *Qty: 6 Split Pin Call
Location: 27 Prev | Next Part: 76401 *Qty: 3 Spherical Pivot $177.96
Location: 28 Prev | Next Part: 75138 *Qty: 1 LEVER $211.91
Location: 29 Prev | Next Part: 76339 *Qty: 1 LEVER $306.76
Location: 30 Prev | Next Part: 76376 *Qty: 1 LEVER Call
Location: 31 Prev | Next Part: 76402 *Qty: 3 Spherical Pivot $177.96
Location: 32 Prev | Next Part: 94630 *Qty: 3 Nut Superseded
Location: 33 Prev | Next Part: 94631 *Qty: 3 Nut Call
Location: 34 Prev | Next Part: 76312 *Qty: 1 Assieme tirante centrale Call
Location: 35 Prev | Next Part: 76340 *Qty: 2 Assieme tirante laterale Call
Location: 36 Prev | Next Part: P 5 *Qty: 1 THREADED STUD Call
Location: 37 Prev | Next Part: P 5 *Qty: 1 THREADED STUD Call
Location: 38 Prev | Next Part: 76390 *Qty: 1 Assieme supporto leva rinvio Call

* Quantity shown indicates the number of pieces used in the diagram.
