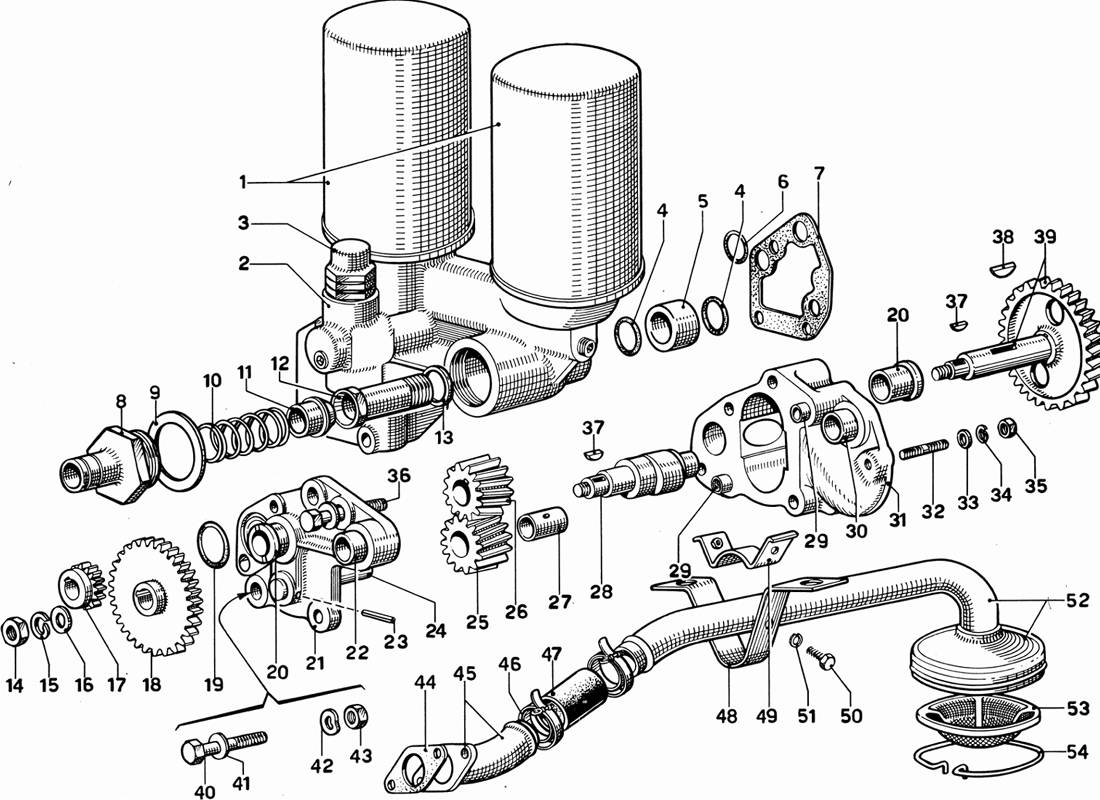

OIL PUMP AND FILTERS

Go to Split View

OIL PUMP AND FILTERS

Location Part # Quantity* Description Price Add To Cart
1 100325 2 Oil filter, valvola by pass- Superseded
2 240224 1 Base per filtro Unavailable
3 37024000 1 Valvola regolazione pressio ne olio Unavailable
4 3081 2 Seal $37.76
5 240129 1 Spacer Unavailable
6 2081 1 Seal $54.06
7 240131 1 Gasket or Seal Unavailable
8 22919 1 Cover $91.00
9 94983 1 GASKET $3.08
10 22915 1 Spring $11.90
11 22918 1 Valvola by pass $124.68
12 220021 1 Colonnetta $261.87
13 94702 1 GASKET Superseded
14 1 D 8UNI21 1 Nut Unavailable
15 8R4 1 Washer Unavailable
16 8R2 1 Washer Unavailable
17 34405 1 DRIVING GEAR Unavailable
18 34406 1 DRIVEN GEAR Unavailable
19 132 1 Seal Unavailable
20 240286 2 Bussola alberino comando Unavailable
21 240285 1 Cover Unavailable
22 34368 1 Bussola per alberino Unavailable
23 2,5 x 20 1 Pin Unavailable
24 240291 1 Pivot Unavailable
25 240293 1 DRIVEN GEAR Unavailable
26 240290 1 DRIVING GEAR Unavailable
27 240292 1 Bussola per ingranaggio Unavailable
28 34407 1 Alberino con camma Unavailable
29 8 GC 1 2 Centering Dowel Unavailable
30 34367 1 Bussola per alberino Unavailable
31 240284 1 Corpo pompa Unavailable
32 P 1 2 THREADED STUD Unavailable
33 8 R 2 2 Washer Unavailable
34 REO8 2 Washer Unavailable
35 8x1UNI5588 2 Nut Unavailable
36 95297 1 Bolt Unavailable
37 L 2 2 Key Unavailable
38 4 x 7,5 1 Key Unavailable
39 240379 1 Complessivo inamovibile in granaggio condotto pom pa olio Unavailable
40 8x55UNI573 1 Bolt Unavailable
41 8 R 2 2 Washer Unavailable
42 REO8 2 Washer Unavailable
43 8x1UNI5588 2 Nut Unavailable
44 240295 1 GASKET Unavailable
45 240297 1 Assieme tubo entrata olio Unavailable
46 18270 2 Jubilee Clip Superseded
47 240299 1 SLEEVE Unavailable
48 240300 2 Bracket Unavailable
49 240301 2 Cavallotto Unavailable
50 5x8UNI5739 4 Bolt Unavailable
51 REG5 4 Washer Unavailable
52 240296 1 Assieme tubo aspirazione olio Unavailable
53 240387 1 Assieme filtro olio Superseded
54 24124 1 Seeger Ring Superseded

* Quantity shown indicates the number of pieces used in the diagram.
