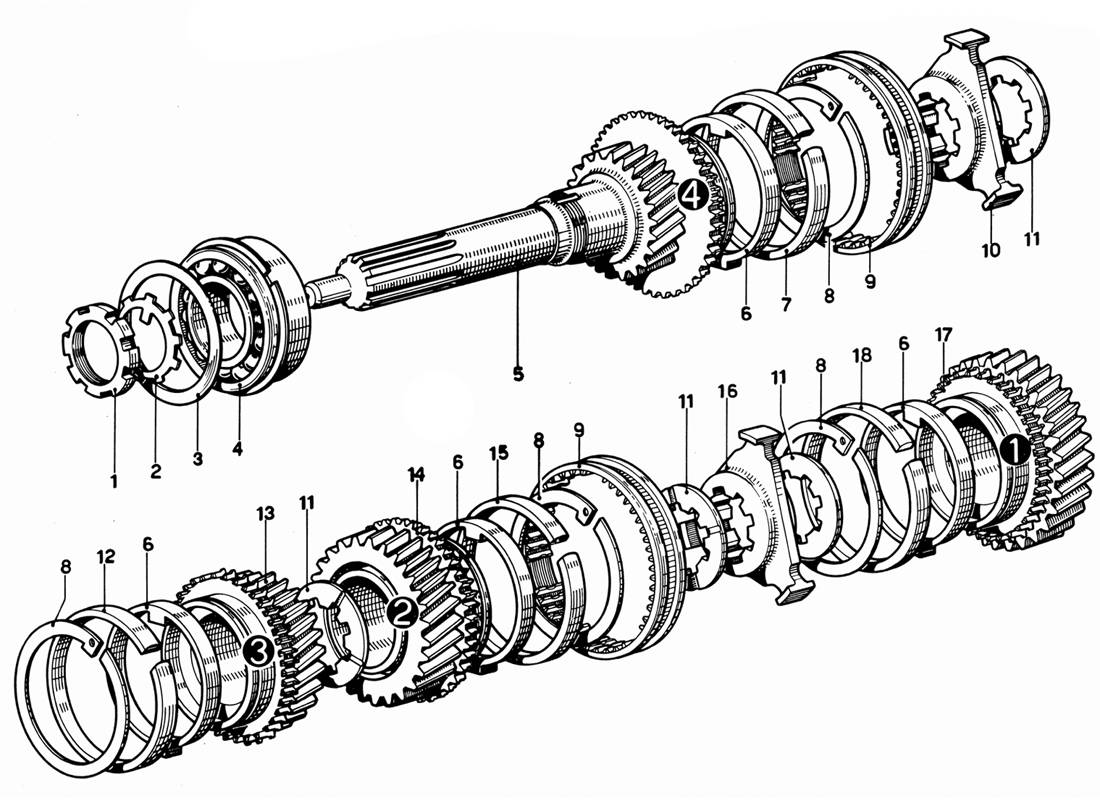

LAY SHAFT

Go to Split View

LAY SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 93330 *Qty: 1 Ghiera per cuscinetto . Call
Location: 2 Prev | Next Part: 93747 *Qty: 1 Washer $66.12
Location: 3 Prev | Next Part: 522666 *Qty: 1 Distanziale per flangia Call
Location: 4 Prev | Next Part: 94874 5 A *Qty: 1 Cuscinetto per albero del rinvio Call
Location: 5 Prev | Next Part: 520802 *Qty: 1 Albero del rinvio Call
Location: 6 Prev | Next Part: 53515 *Qty: 4 Ring Call
Location: 7 Prev | Next Part: 521767 *Qty: 1 Ring $309.64
Location: 8 Prev | Next Part: 53514 *Qty: 4 Ring Call
Location: 9 Prev | Next Part: 522047 *Qty: 1 Manicotto di comando 3 e 4 velocit? $866.29
Location: 10 Prev | Next Part: 521494 *Qty: 1 Nucleo di guida 3 e 4 velocit? Call
Location: 11 Prev | Next Part: 521257 *Qty: 3 Distanziale per 1 2 3 velocit? Call
Location: 12 Prev | Next Part: 251769 *Qty: 1 Ring Call
Location: 13 Prev | Next Part: 522686 *Qty: 1 Assieme ingranaggio 3 velocit? Call
Location: 14 Prev | Next Part: 521333 *Qty: 1 Assieme ingranaggio 2 velocit? Call
Location: 15 Prev | Next Part: 521768 *Qty: 1 Ring Call
Location: 16 Prev | Next Part: 521306 *Qty: 1 Nucleo di guida 1 2 cit?velo Call
Location: 17 Prev | Next Part: 521332 *Qty: 1 Assieme ingranaggio 1 velocit? Call
Location: 18 Prev | Next Part: 521767 *Qty: 1 Ring $309.64
Location: 19 Prev | Next Part: 522844 *Qty: 1 Manicotto di comando per 1 velocit? Call

* Quantity shown indicates the number of pieces used in the diagram.
