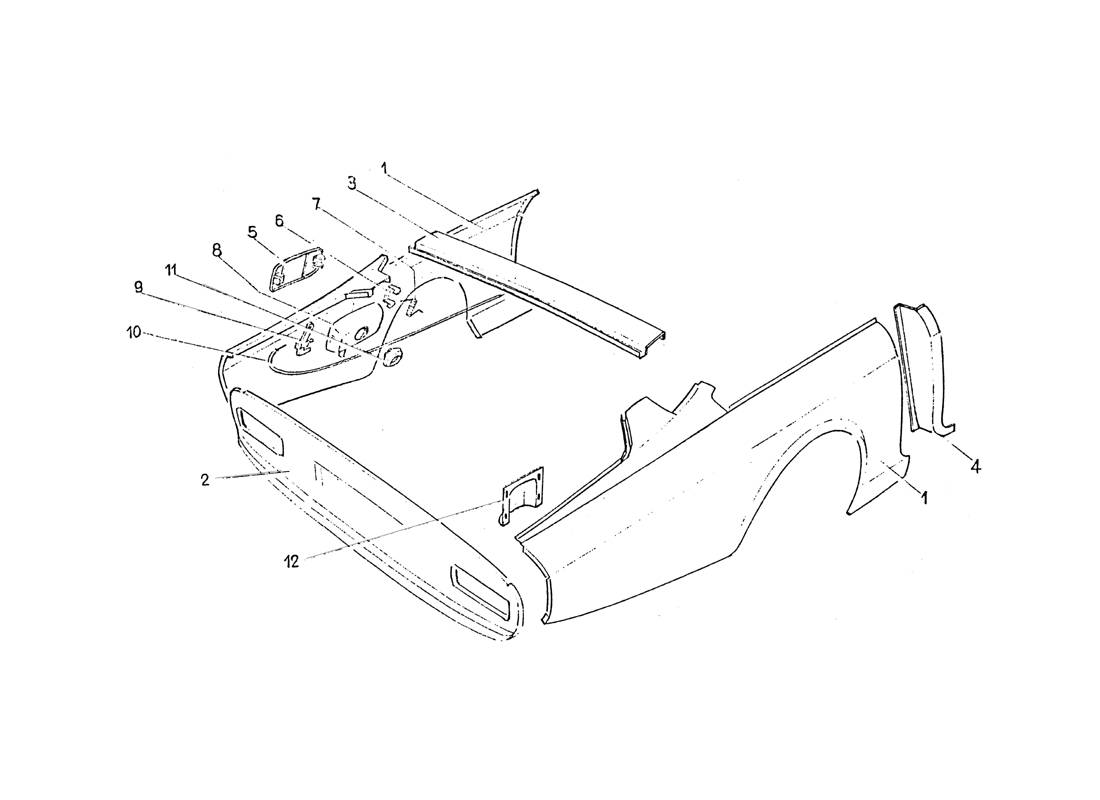

GRUPPO RIVESTIMENTI ESTERNI POSTERIORI SCOCCA

Go to Split View

GRUPPO RIVESTIMENTI ESTERNI POSTERIORI SCOCCA

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 2512000207 *Qty: 1 Rivestimento postor. e tetto cpl.
FVN.200 Comprende voci: 1-2-3 e 1 foglio 5 (14.001)
Call
Location: - Prev | Next Part: 2512000217 *Qty: 1 Rivestimento post.e tetto cpl.
DVN. 201 - come sopra
Call
Location: 1 Prev | Next Part: 2512003107 *Qty: 1 Parafango posteriore S
SOLO EUROPA
Call
Location: 1 Prev | Next Part: 2512003007 *Qty: 1 Parafango posteriore D
SOLO EUROPA
Call
Location: 1 Prev | Next Part: 2512090507 *Qty: 1 Parafango post.S
SOLO U.S.A.
Call
Location: 1 Prev | Next Part: 2512090407 *Qty: 1 Parafango post.D
SOLO U.S.A.
Call
Location: 2 Prev | Next Part: 2512005607 *Qty: 1 Rivestimento contrale posteriore
FVN.200 Intercamb.con.1
Call
Location: 2 Prev | Next Part: 2512005617 *Qty: 1 Rivestimento centr.post.
DVN.201
Call
Location: 3 Prev | Next Part: 2512015207 *Qty: 1 Rivestinsnto corona posteriore Call
Location: 4 Prev | Next Part: 2512017107 *Qty: 1 Lesena piantono posteriore S cpl. Call
Location: 4 Prev | Next Part: 2512017007 *Qty: 1 Lesena piantono posteriore D cpl. Call
Location: 5 Prev | Next Part: 2512050207 *Qty: 1 Sportello per vaschetta carburante cpl. Call
Location: 6 Prev | Next Part: 2512051407 *Qty: 1 Sopporto por attacco cenniera sport.bocch.cpl. Call
Location: 7 Prev | Next Part: 2512052601 *Qty: 1 Spring Call
Location: 8 Prev | Next Part: 2512053007 *Qty: 1 Vaschetta bocchettone carburante cpl. Call
Location: 9 Prev | Next Part: 2512056001 *Qty: 1 Serratura vaschetta carburante Call
Location: 10 Prev | Next Part: 2512059000 *Qty: 1 Cava apertura sportello carburante Call
Location: 11 Prev | Next Part: 2412060000 *Qty: 1 Gueriz.passaggio tubo bocchett.carburante Call
Location: 12 Prev | Next Part: 2519293100 *Qty: 1 Protezione per staffa fiss.tubo scarico S
DVN.201
Call
Location: 12 Prev | Next Part: 2519293000 *Qty: 1 Protezione per staffa fiss.tubo scarico D
DVN.201
Call

* Quantity shown indicates the number of pieces used in the diagram.
