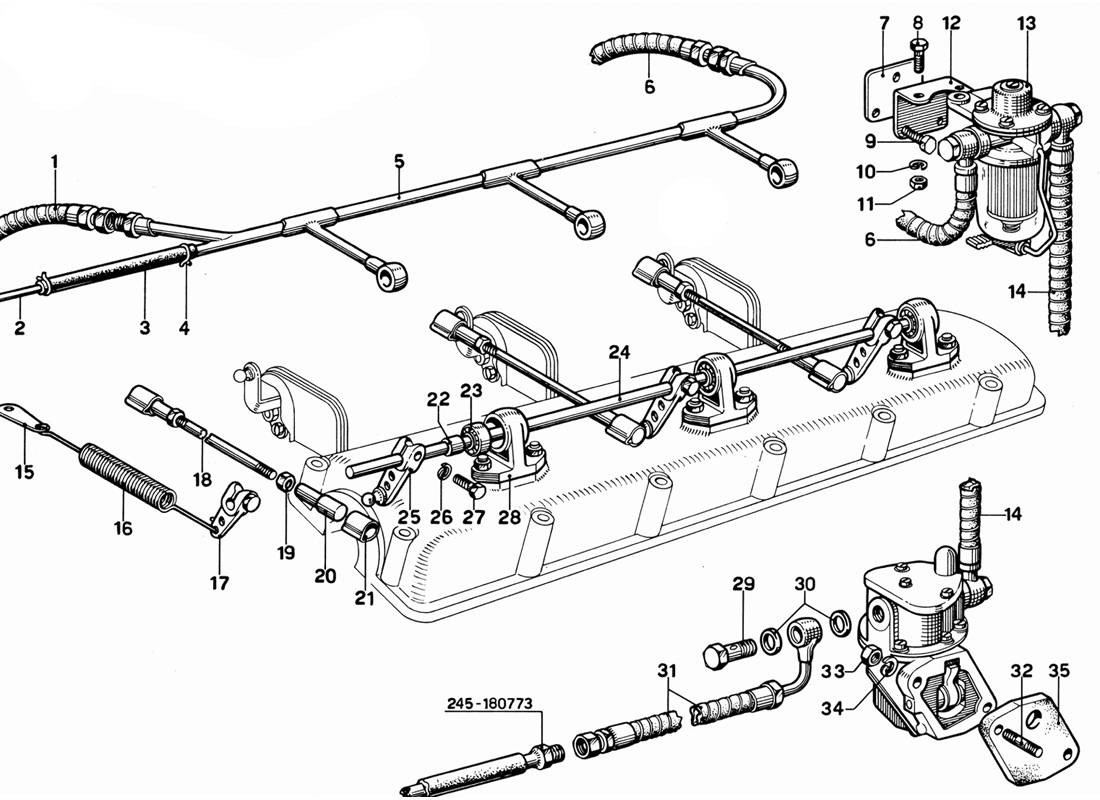

FEEDING AND CONTROLS

Go to Split View

FEEDING AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 19675 *Qty: 1 Assieme flessibile dal tubol alimentazione carburatori al tubo rigido 245-180774 Call
Location: 2 Prev | Next Part: 180775 *Qty: 1 Tubo ritorno carburante dalitubo alimentazione al ser batoio Call
Location: 3 Prev | Next Part: 95018 *Qty: 1 Manicotto gomma carbopress Call
Location: 4 Prev | Next Part: 2/FTipoC *Qty: 2 Spring Call
Location: 5 Prev | Next Part: 19919 *Qty: 1 Tubo alimentazione carbu ratori Call
Location: 6 Prev | Next Part: 19386 *Qty: 1 Complessivo tubo flessibile da filtro regolatore al tubo, alimentazione Call
Location: 7 Prev | Next Part: 34346 *Qty: 1 Contropiastra per filtro Call
Location: 8 Prev | Next Part: 6x14UNI573 *Qty: 3 Bolt Call
Location: 9 Prev | Next Part: 6x16UNI573 *Qty: 2 Bolt Call
Location: 10 Prev | Next Part: REG 6 *Qty: 5 Washer Call
Location: 11 Prev | Next Part: 6x1 UNI *Qty: 5 Nut Call
Location: 12 Prev | Next Part: 34345 *Qty: 1 Support Call
Location: 13 Prev | Next Part: 306402 *Qty: 1 Filtro regolatore Call
Location: 14 Prev | Next Part: 19952 *Qty: 1 Complessivo tubo flessibile dalla pompa meccanica al filtro Call
Location: 15 Prev | Next Part: 19005 *Qty: 1 Attacco per molla Call
Location: 16 Prev | Next Part: 19180 *Qty: 1 Spring Call
Location: 17 Prev | Next Part: 19099 *Qty: 1 LEVER Call
Location: 18 Prev | Next Part: 95231 *Qty: 3 Tie Rod Call
Location: 19 Prev | Next Part: 8x08Úni+55 *Qty: 6 Nut Call
Location: 20 Prev | Next Part: 19828 *Qty: 6 Giunto per tiranti Call
Location: 21 Prev | Next Part: 94321 *Qty: 3 Spring Superseded
Location: 22 Prev | Next Part: 18908 *Qty: 1 Spacer Call
Location: 23 Prev | Next Part: 92766 *Qty: 3 Cuscinetto a sfere Call
Location: 24 Prev | Next Part: 19169 *Qty: 1 Alberino collegamento leve . Call
Location: 25 Prev | Next Part: 19047 *Qty: 3 LEVER Call
Location: 26 Prev | Next Part: REG. 6 *Qty: 3 Washer Call
Location: 27 Prev | Next Part: '6x18UNI57 *Qty: 3 Bolt Call
Location: 28 Prev | Next Part: 18539 *Qty: 3 Support Call
Location: 29 Prev | Next Part: 94660 *Qty: 4 Union Call
Location: 30 Prev | Next Part: 93353 *Qty: 8 Guarnizioni Superseded
Location: 31 Prev | Next Part: 19307 *Qty: 1 Assieme tubo flessibile dal tubo 245/180773 alla pompa meccanica Call
Location: 32 Prev | Next Part: P2 *Qty: 2 THREADED STUD Call
Location: 33 Prev | Next Part: 8 x 1 UNI *Qty: 2 Nut Call
Location: 34 Prev | Next Part: 8R5 *Qty: 2 Washer Call
Location: 35 Prev | Next Part: 34382 *Qty: 1 Spacer Call

* Quantity shown indicates the number of pieces used in the diagram.
