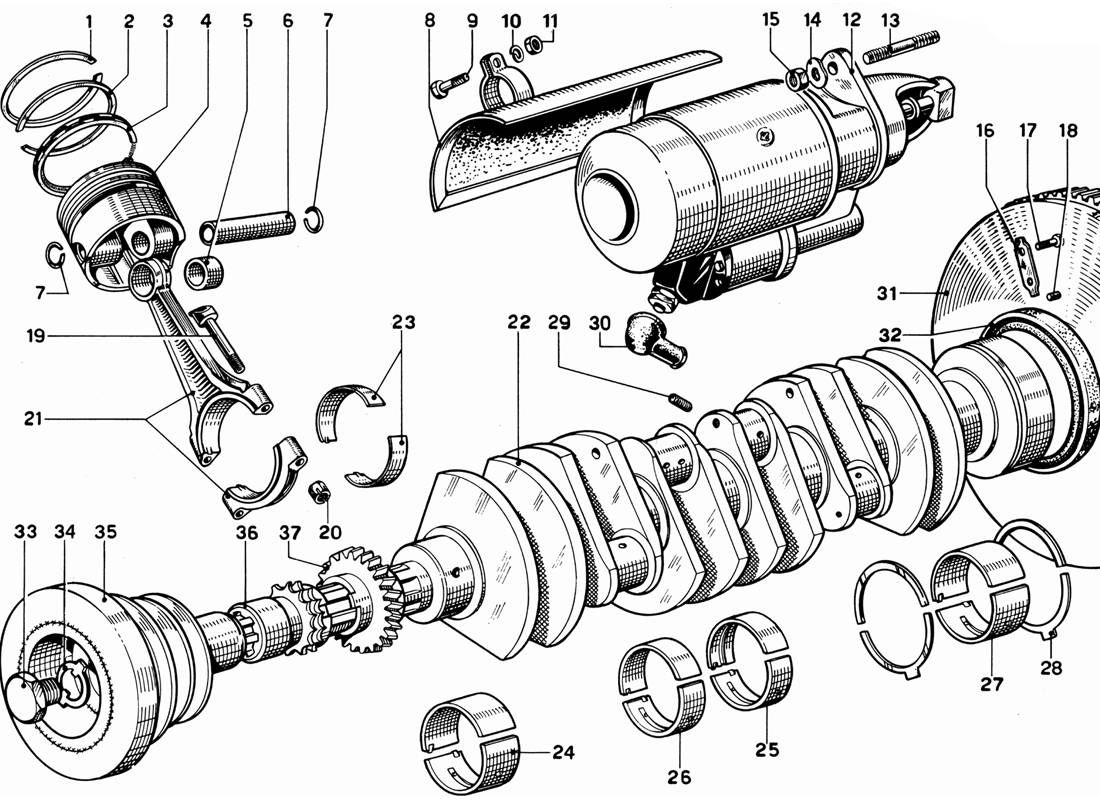

CRANKSHAFT, CONNECTING RODS AND PISTONS

Go to Split View

CRANKSHAFT, CONNECTING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: - *Qty: 12 1? maggiorazione Call
Location: 1 Prev | Next Part: - *Qty: 12 2? maggiorazione Call
Location: 1 Prev | Next Part: - *Qty: 12 F normale Call
Location: 1 Prev | Next Part: 33/1819/00 *Qty: 1 Seal Call
Location: 2 Prev | Next Part: - *Qty: 12 1 maggiorazione Call
Location: 2 Prev | Next Part: - *Qty: 12 2 maggiorazione Call
Location: 2 Prev | Next Part: - *Qty: 12 F normale Call
Location: 2 Prev | Next Part: 35169 *Qty: 12 Sealing Ring Call
Location: 3 Prev | Next Part: - *Qty: 12 1 maggiorazione Call
Location: 3 Prev | Next Part: - *Qty: 12 2 maggiorazione Call
Location: 3 Prev | Next Part: - *Qty: 12 F normale Call
Location: 3 Prev | Next Part: 336420 *Qty: 12 Ring Call
Location: 4 Prev | Next Part: 14940 *Qty: 1 1 maggiorazione (+ 0,15 mm.) - 14.14940/A Call
Location: 4 Prev | Next Part: 14940 *Qty: 1 2 maggiorazione (+ 0,30 mm.) - 14.14940/B Call
Location: 4 Prev | Next Part: 14940 *Qty: 12 Stantuffo 0 normale Call
Location: 5 Prev | Next Part: 14581 *Qty: 12 Bush Call
Location: 6 Prev | Next Part: 14854 *Qty: 12 Spinotto per pistone Superseded
Location: 7 Prev | Next Part: 14594 *Qty: 1 Ring Superseded
Location: 8 Prev | Next Part: 13219 *Qty: 1 Deflettore con fascetta Call
Location: 9 Prev | Next Part: 6 x 20 UNI *Qty: 1 Bolt Call
Location: 10 Prev | Next Part: REG6 *Qty: 1 Washer Call
Location: 11 Prev | Next Part: - *Qty: 1 Nut Call
Location: 12 Prev | Next Part: 13218 *Qty: 1 Motorino di avviamento Superseded
Location: 13 Prev | Next Part: 95203 *Qty: 1 Stud Call
Location: 14 Prev | Next Part: REO 12 *Qty: 2 Washer Call
Location: 15 Prev | Next Part: 95204 *Qty: 2 Nut Call
Location: 16 Prev | Next Part: 12124 *Qty: 4 PLATE Superseded
Location: 17 Prev | Next Part: 94851 *Qty: 41 Bolt Call
Location: 18 Prev | Next Part: 94129 *Qty: 1 Centering Dowel Superseded
Location: 19 Prev | Next Part: 14927 *Qty: 24 Bolt Call
Location: 20 Prev | Next Part: 14795 *Qty: 24 Nut Superseded
Location: 21 Prev | Next Part: 14985 *Qty: 12 Complessivo biella con bulloni, dadi e boccola per spinotto . Superseded
Location: 22 Prev | Next Part: 12513 *Qty: 1 Crankshaft Call
Location: 22 Prev | Next Part: 12513 *Qty: 1 Undersize bearings - 1 Undersize Call
Location: 22 Prev | Next Part: 12513 *Qty: 1 Undersize bearings - 2 Undersize Call
Location: 22 Prev | Next Part: 12513 *Qty: 1 Undersize bearings - 3 Undersize Call
Location: 23 Prev | Next Part: 12513 *Qty: 12 1? Undersize Call
Location: 23 Prev | Next Part: 12513 *Qty: 12 2 Undersize Call
Location: 23 Prev | Next Part: 12513 *Qty: 12 3 Undersize Call
Location: 23 Prev | Next Part: 14447 *Qty: 12 Bearing Shells - 1 Undersize Superseded
Location: 23 Prev | Next Part: 14447 *Qty: 12 Bearing Shells - 2 Undersize Superseded
Location: 23 Prev | Next Part: 14447 *Qty: 12 Bearing Shells - 3 Undersize Superseded
Location: 23 Prev | Next Part: 14447 *Qty: 12 Cuscinetto di biella Superseded
Location: 24 Prev | Next Part: MC1820/4 *Qty: 1 MAIN BEARINGS +30
SOLD AS MAINS SET ONLY
Call
Location: 24 Prev | Next Part: - *Qty: 1 Bearing Shells - 1 Undersize Call
Location: 24 Prev | Next Part: - *Qty: 1 Bearing Shells - 2 Undersize Call
Location: 24 Prev | Next Part: 100035 *Qty: 1 Cuscinetti di banco Call
Location: 24 Prev | Next Part: - *Qty: 1 Cuscinetto anteriore - Semicuscinetto inferiore Call
Location: 24 Prev | Next Part: 100602 *Qty: 1 Cuscinetto anteriore - Semicuscinetto superiore Call
Location: 25 Prev | Next Part: 100618 *Qty: 2 Cuscinetto centrale - Se micuscinetto infer. e superiore Call
Location: 25 Prev | Next Part: 100618 *Qty: 2 MAIN BEARINGS +10 Call
Location: 25 Prev | Next Part: 100618 *Qty: 2 MAIN BEARINGS +20 Call
Location: 25 Prev | Next Part: MC1820/4 *Qty: 2 MAIN BEARINGS +30
SOLD AS MAINS SET ONLY
Call
Location: 26 Prev | Next Part: - *Qty: 4 2 Undersize Call
Location: 26 Prev | Next Part: - *Qty: 4 Bearing Shells - 1 Undersize Call
Location: 26 Prev | Next Part: 100619 *Qty: 4 Cuscinetti intermedi - Semicuscinetto inferiore Call
Location: 26 Prev | Next Part: 100620 *Qty: 4 Cuscinetti intermedi - Semicuscinetto superiore Call
Location: 26 Prev | Next Part: MC1820/4 *Qty: 4 MAIN BEARINGS +30
SOLD AS MAINS SET ONLY
Call
Location: 27 Prev | Next Part: - *Qty: 1 Bearing Shells - 1 Undersize Call
Location: 27 Prev | Next Part: - *Qty: 1 Bearing Shells - 2 Undersize Call
Location: 27 Prev | Next Part: 100603 *Qty: 1 Cuscinetto posteriore - Semicuscinetto inferiore Call
Location: 27 Prev | Next Part: 100037 *Qty: 1 Cuscinetto posteriore - Semicuscinetto superiore $24.24
Location: 27 Prev | Next Part: MC1820/4 *Qty: 1 MAIN BEARINGS +30
SOLD AS MAINS SET ONLY
Call
Location: 28 Prev | Next Part: 10345 *Qty: 2 2 maggiorazione (mm. 0,101) (0,004) Superseded
Location: 28 Prev | Next Part: 10345 *Qty: 2 3 maggiorazione (mm. 0,203) (0,008) Superseded
Location: 28 Prev | Next Part: 10345 *Qty: 2 Ring Superseded
Location: 28 Prev | Next Part: 10345 *Qty: 2 1 maggiorazione (mm. 0,076) (0,003) Superseded
Location: 29 Prev | Next Part: TF 4 *Qty: 12 Tappo filettato Call
Location: 30 Prev | Next Part: 13195 *Qty: 1 Coprimorsetto Superseded
Location: 31 Prev | Next Part: 12600 *Qty: 1 Assieme volano motore Call
Location: 32 Prev | Next Part: 100 x 120 *Qty: 1 Seal Call
Location: 33 Prev | Next Part: 12157 *Qty: 1 Screw Call
Location: 34 Prev | Next Part: 92987 *Qty: 1 PLATE Call
Location: 35 Prev | Next Part: 95840038 *Qty: 1 Smorzatore torsionale con pulegge $15.86
Location: 36 Prev | Next Part: 12560 *Qty: 1 Pignone per catena Call
Location: 37 Prev | Next Part: 12331 *Qty: 1 Ingranaggio Call

* Quantity shown indicates the number of pieces used in the diagram.
