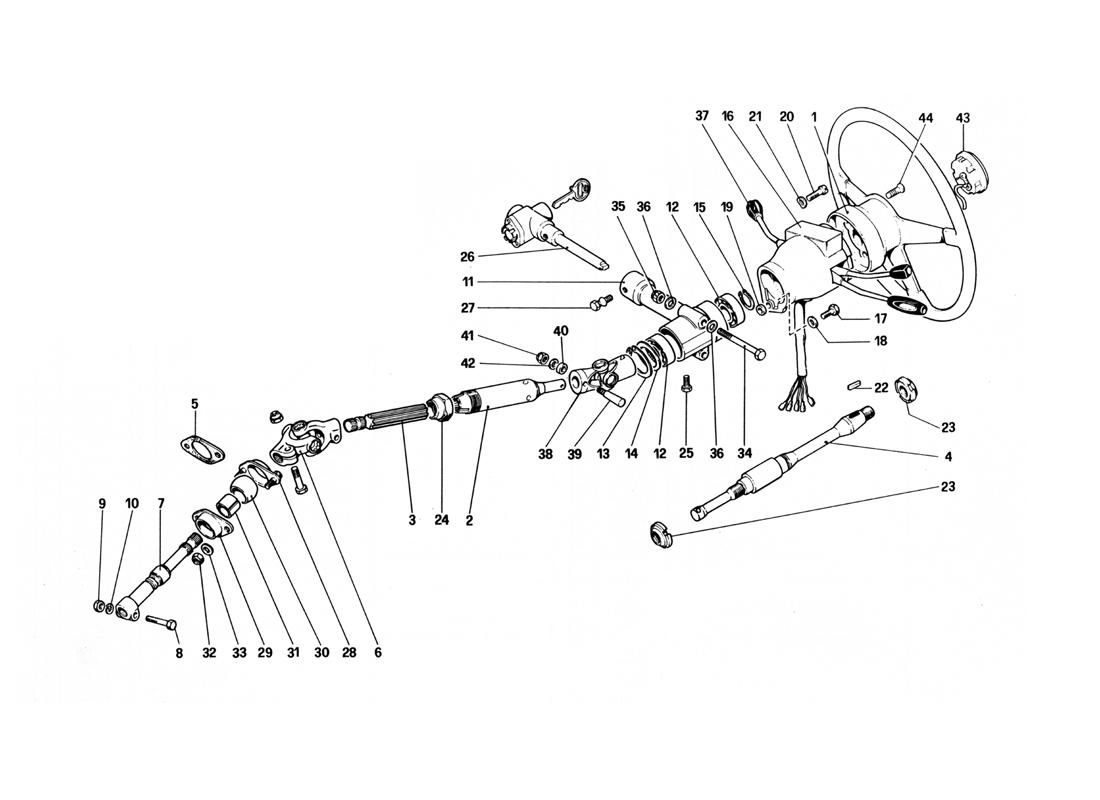

STEERING COLUMN

STEERING COLUMN

Location Part # Quantity* Description Price Add To Cart
1 116603 1 Assieme volante guida Unavailable
2 117379 1 Tubo guida $653.40
3 108557 1 Albero guida $234.38
4 108413 1 Albero superiore $497.17
5 109173 1 Guarnizione Unavailable
6 108362 1 Giunto cardanico Superseded
7 107308 1 Estensione del pignone scatola guida completo Unavailable
8 103371 1 Bullone Superseded
9 103373 1 Dado Superseded
10 103372 1 Rondella Superseded
11 106611 1 Supporto piantone guida antifurto $947.22
12 101104 2 Cuscinetto $16.46
13 11060576 1 Anetlo seeger $1.81
14 107490 1 Rondella di rasamento - spessore mm. 0.2 $12.89
14 107489 1 Rondella di rasamento - spessore mm. 0.3 $12.89
14 107488 1 Rondella di rasamento - spessore mm. 0.4 $3.13
14 101101 1 Rondella di rasamento - spessore mm. 0.5 $1.68
15 11067376 1 Anello seeger $1.68
16 117631 1 Cannotto porta commutatori Superseded
17 111883 1 Bullone fissaggio cannotto Unavailable
18 12601271 1 Rondella Superseded
19 12639701 1 Distanziale Unavailable
20 10389901 2 Vite fissaggio commutatore Unavailable
21 12541670 2 Rondella elastica $1.24
22 101106 1 Chiavetta $7.39
23 106610 2 Ghiera $84.65
24 106870 1 Dado registro $16.42
25 10979421 1 Bullone fissaggio rivestimento Unavailable
26 106614 1 Antifurto Superseded
27 106615 1 Bullone fissaggio antifurto Superseded
28 105667 1 Flangia articolazione sferica superiore $34.67
29 103292 1 Flangia per articolazione sferica inferiore $14.11
30 103297 1 Sfera per articolazione $61.37
31 103370 1 Boccola sulla sfera Unavailable
32 16104121 2 Dado Superseded
33 10519601 2 Rondella Superseded
34 103576 2 Bullone $20.26
35 16104421 2 Dado Superseded
36 10519601 4 Rondella Superseded
37 118123 1 Deviosgancio Unavailable
38 112572 1 Giunto cardanico Unavailable
39 112573 2 Spina conica $55.05
40 112571 2 Distanziale $9.60
41 12574221 2 Dado Superseded
42 10519401 2 Rondella Superseded
43 116086 1 Contenitore e clacson Unavailable
44 116599 6 Vite fissaggio volante $1.79

* Quantity shown indicates the number of pieces used in the diagram.
