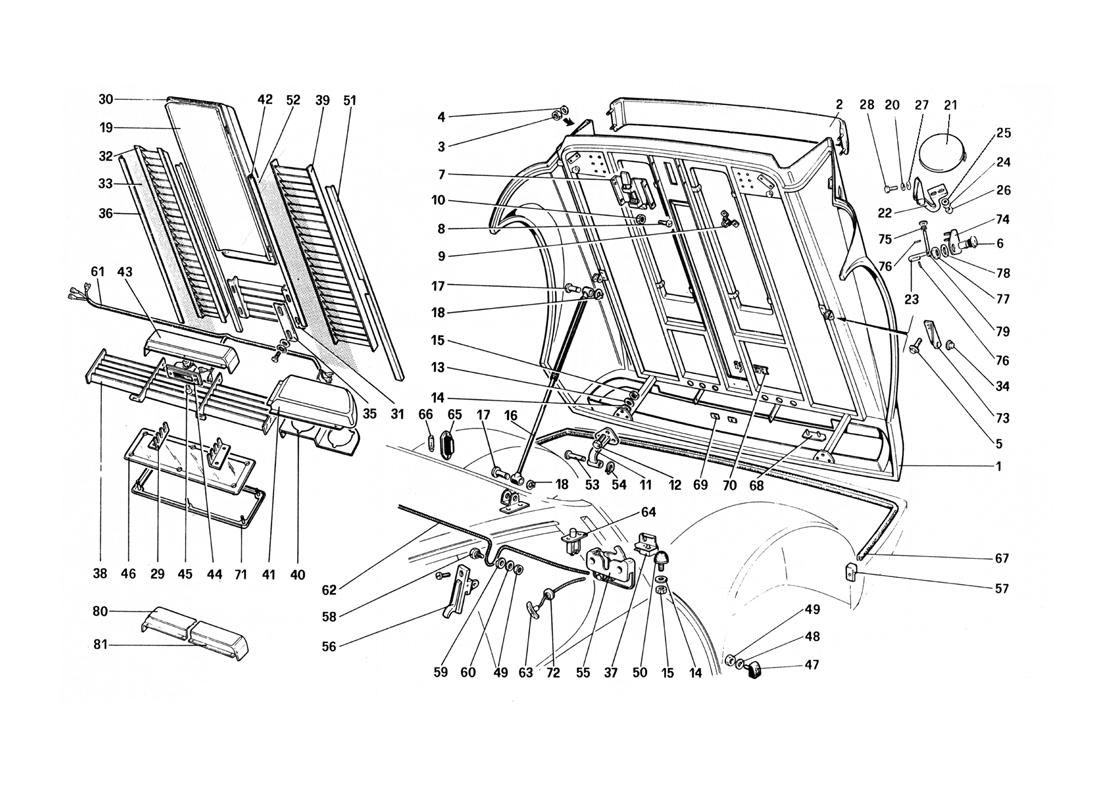

REAR BONNET

Go to Split View

REAR BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60819800 *Qty: 1 Cofano motore $8,493.50
Location: 2 Prev | Next Part: 50048701 *Qty: 1 Alettone Superseded
Location: 2 Prev | Next Part: 50131705 *Qty: 1 Alettone $623.36
Location: 3 Prev | Next Part: 16104111 *Qty: 4 Dado Superseded
Location: 4 Prev | Next Part: 12646701 *Qty: 4 Rondella Superseded
Location: 5 Prev | Next Part: 13836371 *Qty: 4 Vite $1.70
Location: 6 Prev | Next Part: 60953300 *Qty: 1 Serratura sportello benzina Call
Location: 7 Prev | Next Part: 50150408 *Qty: 1 Serratura di sicurezza $457.60
Location: 8 Prev | Next Part: 10977511 *Qty: 4 Vite $0.90
Location: 9 Prev | Next Part: 60509600 *Qty: 2 Gancio per serratura Call
Location: 10 Prev | Next Part: 12574111 *Qty: 4 Dado Superseded
Location: 11 Prev | Next Part: 50367200 *Qty: 2 Cerniera $146.15
Location: 12 Prev | Next Part: 16043211 *Qty: 6 Vite $0.90
Location: 13 Prev | Next Part: 10519621 *Qty: 6 Rondella $0.90
Location: 14 Prev | Next Part: 11196070 *Qty: 8 Rondella elastica Call
Location: 15 Prev | Next Part: 16100811 *Qty: 8 Dado Superseded
Location: 16 Prev | Next Part: 60853900 *Qty: 2 Ammortizzatore $90.05
Location: 16 Prev | Next Part: 61035800 *Qty: 2 Ammortizzatore $64.47
Location: 17 Prev | Next Part: 60599500 *Qty: 4 Perno $18.25
Location: 18 Prev | Next Part: 11087876 *Qty: 4 Seeger $0.90
Location: 19 Prev | Next Part: 60977900 *Qty: 2 Pannello fono assorbente Call
Location: 20 Prev | Next Part: 10519302 *Qty: 2 Rondella $1.84
Location: 21 Prev | Next Part: 60947700 *Qty: 1 Coperchio bocchettone benzina $92.21
Location: 21 Prev | Next Part: 60771900 *Qty: 1 Coperchio bocchettone benzina $75.64
Location: 22 Prev | Next Part: 60948100 *Qty: 1 Cerniera completa Call
Location: 22 Prev | Next Part: 60771800 *Qty: 1 Cerniera completa $87.55
Location: 23 Prev | Next Part: 60953400 *Qty: 1 Perno su blocchetto $25.91
Location: 24 Prev | Next Part: 10519202 *Qty: 2 Rondella $0.90
Location: 25 Prev | Next Part: 10615270 *Qty: 2 Rondella elastica $0.90
Location: 26 Prev | Next Part: 10794011 *Qty: 2 Dado $0.90
Location: 27 Prev | Next Part: 10615370 *Qty: 2 Rondella $0.90
Location: 28 Prev | Next Part: 10978011 *Qty: 1 Vite $0.90
Location: 28 Prev | Next Part: 10977611 *Qty: 2 Vite Superseded
Location: 29 Prev | Next Part: 50331305 *Qty: 1 Staff a Sx^ fissaggio protezione $35.02
Location: 29 Prev | Next Part: 50331206 *Qty: 1 Staffa Dx. fissaggio protezione $35.02
Location: 29 Prev | Next Part: 61063900 *Qty: 1 Staffa Dx. tjssaggio piastra $34.78
Location: 29 Prev | Next Part: 61064100 *Qty: 1 Staffa Sx. fissaggio piastra $34.78
Location: 30 Prev | Next Part: 50301100 *Qty: 2 Coperchio $1,019.71
Location: 31 Prev | Next Part: 50006709 *Qty: 1 GrigliaSx. $1,200.03
Location: 31 Prev | Next Part: 50006600 *Qty: 1 Griglia Dx. $1,019.10
Location: 32 Prev | Next Part: 60819200 *Qty: 1 Griglia centrale $1,291.10
Location: 33 Prev | Next Part: 60891700 *Qty: 1 Rete per griglia centrale $67.94
Location: 34 Prev | Next Part: 13832101 *Qty: 4 Dado $0.90
Location: 35 Prev | Next Part: 61004800 *Qty: 2 Angolare Dx. fissacjgio rete post. $12.15
Location: 35 Prev | Next Part: 61004700 *Qty: 2 Angolare Sx. fissaggio rete post. $12.15
Location: 36 Prev | Next Part: 60980400 *Qty: 1 Angolare Dx. $15.17
Location: 36 Prev | Next Part: 60980500 *Qty: 1 Angolare Sx. $19.85
Location: 37 Prev | Next Part: 60528700 *Qty: 1 Comando spia cofano aperto Superseded
Location: 38 Prev | Next Part: 61064300 *Qty: 1 Griglia post. Call
Location: 38 Prev | Next Part: 50310408 *Qty: 1 Griglia post. $1,610.94
Location: 39 Prev | Next Part: 60819300 *Qty: 1 Griglia post. Dx. $1,214.03
Location: 39 Prev | Next Part: 60819400 *Qty: 1 Griglia post. Sx. $1,214.03
Location: 40 Prev | Next Part: 50307404 *Qty: 1 Protezione Sx. fanali $625.69
Location: 40 Prev | Next Part: 50307305 *Qty: 1 Protnzione Dx. fanali $625.69
Location: 41 Prev | Next Part: 50331909 *Qty: 1 Protezione termica Sx. fanali Call
Location: 41 Prev | Next Part: 50331800 *Qty: 1 Protezione termica Dx. fanali $347.87
Location: 42 Prev | Next Part: 60980700 *Qty: 1 Angolare Dx. interno griglia laterale $16.81
Location: 42 Prev | Next Part: 60980900 *Qty: 1 Angolare Sx. interno griglia laterale $7.46
Location: 43 Prev | Next Part: 50332006 *Qty: 1 Protezione fanali targa $412.52
Location: 44 Prev | Next Part: 50020700 *Qty: 2 Fanale targa $32.92
Location: 45 Prev | Next Part: 20083002 *Qty: 2 Lampada $1.57
Location: 46 Prev | Next Part: 61063800 *Qty: 1 Piastra per targa $54.86
Location: 46 Prev | Next Part: 50330802 *Qty: 1 Protezione targa $130.05
Location: 47 Prev | Next Part: 50042803 *Qty: 2 Tassello in gomma $18.45
Location: 48 Prev | Next Part: 12642801 *Qty: 2 Rondella $0.90
Location: 49 Prev | Next Part: 10794011 *Qty: 3 Dado $0.90
Location: 50 Prev | Next Part: 50051606 *Qty: 2 Tampone Call
Location: 51 Prev | Next Part: 60980600 *Qty: 1 Angolare est. Dx. griglia laterale $88.02
Location: 51 Prev | Next Part: 60980800 *Qty: 1 Angolare est. Sx. griglia laterale $88.95
Location: 52 Prev | Next Part: 60891800 *Qty: 1 Rete griglia Dx. $60.47
Location: 52 Prev | Next Part: 60891900 *Qty: 1 Rete griglia Sx. $60.47
Location: 53 Prev | Next Part: 50025105 *Qty: 2 Perno $49.97
Location: 54 Prev | Next Part: 11065675 *Qty: 2 Seeger Superseded
Location: 55 Prev | Next Part: 60277407 *Qty: 2 Serratura Call
Location: 56 Prev | Next Part: 50036508 *Qty: 1 Maniglia Call
Location: 57 Prev | Next Part: 50371103 *Qty: 2 Terminale per guarnizione Call
Location: 58 Prev | Next Part: 50093509 *Qty: 1 Perno $8.87
Location: 59 Prev | Next Part: 50093400 *Qty: 1 Boccola $3.97
Location: 60 Prev | Next Part: 11196270 *Qty: 1 Rondella Call
Location: 61 Prev | Next Part: 60885900 *Qty: 1 Cavo collegamento fanali Call
Location: 62 Prev | Next Part: 60509000 *Qty: 1 Cavo $18.45
Location: 63 Prev | Next Part: 60509300 *Qty: 2 Cavo emergenza $26.39
Location: 64 Prev | Next Part: 20069605 *Qty: 1 Pulsante per plafoniera Superseded
Location: 65 Prev | Next Part: 50018803 *Qty: 2 Plafoniera $233.24
Location: 66 Prev | Next Part: 20083101 *Qty: 2 Lampada $2.20
Location: 67 Prev | Next Part: 50156207 *Qty: 1 Guarnizione $52.16
Location: 68 Prev | Next Part: 61023500 *Qty: 1 Fregio 512 BBi $88.02
Location: 68 Prev | Next Part: 60878600 *Qty: 1 Fregio 512 BBi Superseded
Location: 69 Prev | Next Part: 20043204 *Qty: 5 Molletta Call
Location: 70 Prev | Next Part: 60307006 *Qty: 1 Fregio Ferrari Superseded
Location: 71 Prev | Next Part: 60096401 *Qty: 1 Portatarga post. (solo Italia) Superseded
Location: 72 Prev | Next Part: 60509200 *Qty: 1 Sede maniglia emergenza $8.93
Location: 73 Prev | Next Part: 61035500 *Qty: 1 Piastra Dx. fiss. ammortizzatore $13.31
Location: 73 Prev | Next Part: 61035400 *Qty: 1 Piastra Sx. fiss. ammortizzatore $13.31
Location: 74 Prev | Next Part: 60954000 *Qty: 1 Sostegno blocchetto $44.83
Location: 75 Prev | Next Part: 60953900 *Qty: 1 Molla $8.18
Location: 76 Prev | Next Part: 14158570 *Qty: 2 Spina $0.90
Location: 77 Prev | Next Part: 20063202 *Qty: 1 Ghiera $10.27
Location: 78 Prev | Next Part: 20035804 *Qty: 1 Spessore $4.21
Location: 79 Prev | Next Part: 60953600 *Qty: 1 Perno di chiusura $36.89
Location: 80 Prev | Next Part: 61064400 *Qty: 1 Protezione Dx. fanali targa $189.58
Location: 81 Prev | Next Part: 61064500 *Qty: 1 Protezione Sx. fanali targa Superseded

* Quantity shown indicates the number of pieces used in the diagram.
