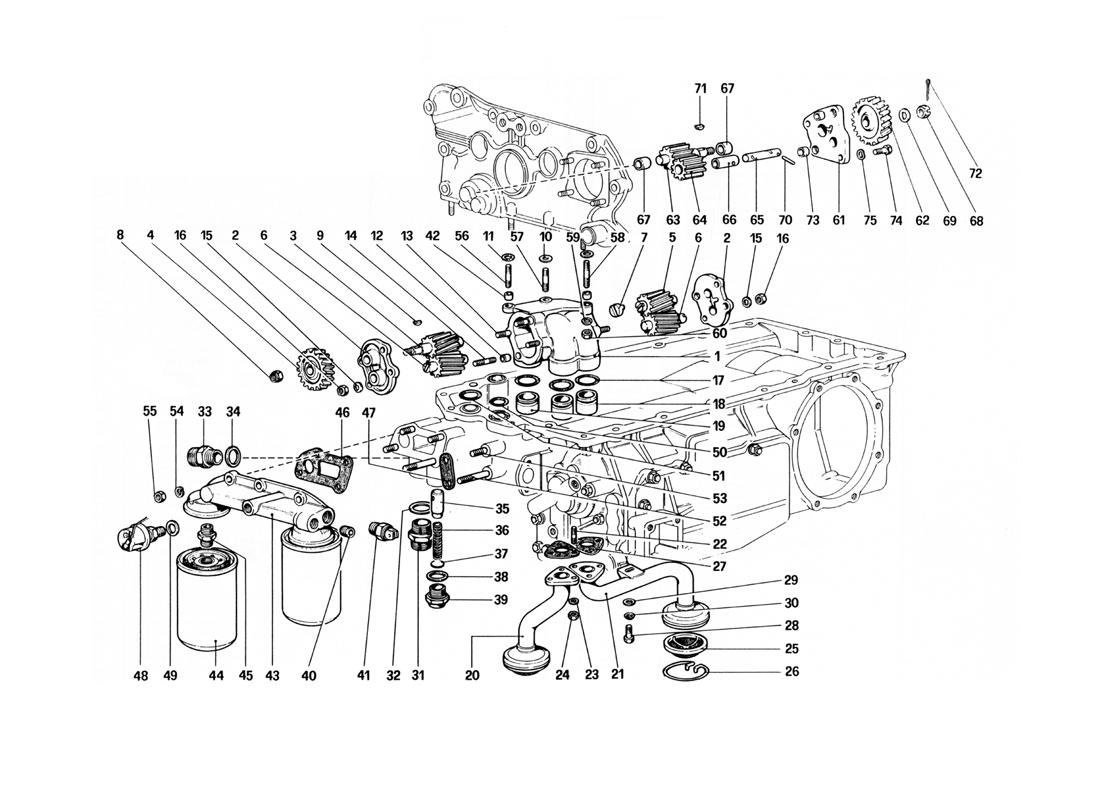

LUBRICATION - OIL PUMPS AND FILTERS

Go to Split View

LUBRICATION - OIL PUMPS AND FILTERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 111306 *Qty: 1 Corpo pompa recupero olio completa $888.61
Location: 1 Prev | Next Part: 109499 *Qty: 1 Pompa recupero olio Call
Location: 2 Prev | Next Part: 109505 *Qty: 2 Coperchio pompa $221.63
Location: 3 Prev | Next Part: 116057 *Qty: 1 Ingranaggio conduttore anteriore $1,532.71
Location: 4 Prev | Next Part: 117829 *Qty: 2 Ingrannaggio esterno $638.42
Location: 5 Prev | Next Part: 116056 *Qty: 2 Ingranaggio conduttore posteriore $68.05
Location: 6 Prev | Next Part: 116056 *Qty: 2 Ingranaggio condotto $68.05
Location: 7 Prev | Next Part: 109309 *Qty: 1 Giunto di trascinamento $16.77
Location: 8 Prev | Next Part: 104011 *Qty: 1 Dado autobloccante $12.55
Location: 9 Prev | Next Part: 10205620 *Qty: 1 Linguetta $0.90
Location: 10 Prev | Next Part: 109511 *Qty: 1 Idem spessore mm. 0.98 $2.97
Location: 10 Prev | Next Part: 109509 *Qty: 1 Idem spessore mm. 1.02 $2.97
Location: 10 Prev | Next Part: 109508 *Qty: 1 Idem spessore mm. 1.04 $2.97
Location: 10 Prev | Next Part: 109507 *Qty: 1 Idem spessore mm. 1.06 $2.97
Location: 10 Prev | Next Part: 111280 *Qty: 1 Idem spessore mm. 1.15 $2.71
Location: 10 Prev | Next Part: 111281 *Qty: 1 Idem spessore mm. 1.20 $2.71
Location: 10 Prev | Next Part: 111279 *Qty: 1 Idem spessore mm. 1.10 $2.71
Location: 10 Prev | Next Part: 109510 *Qty: 1 Rondello rasamento spess. mm. 1 $3.39
Location: 10 Prev | Next Part: 109513 *Qty: 1 Idem spessore mm. 0.94 $2.97
Location: 10 Prev | Next Part: 109512 *Qty: 1 Idem spessore mm. 0.96 $2.97
Location: 11 Prev | Next Part: 109519 *Qty: 2 Idem spessore mm. 0.96 $2.97
Location: 11 Prev | Next Part: 109518 *Qty: 2 Idem spessore mm. 0.98 $2.97
Location: 11 Prev | Next Part: 109515 *Qty: 2 Idem spessore mm. 1 .04 $2.97
Location: 11 Prev | Next Part: 109516 *Qty: 2 Idem spessore mm. 1.02 $2.97
Location: 11 Prev | Next Part: 109514 *Qty: 2 Idem spessore mm. 1.06 $2.97
Location: 11 Prev | Next Part: 111282 *Qty: 2 Idem spessore mm. 1.10 $2.71
Location: 11 Prev | Next Part: 111284 *Qty: 2 Idem spessore mm. 1.20 $2.71
Location: 11 Prev | Next Part: 109517 *Qty: 2 Rondella rasamento spess. mm. 1 $1.42
Location: 11 Prev | Next Part: 111283 *Qty: 2 . Idem spessore mm. 1.15 $2.71
Location: 11 Prev | Next Part: 109520 *Qty: 2 Idem spessore mm. 0.94 $2.97
Location: 12 Prev | Next Part: 102725 *Qty: 4 Grano $0.90
Location: 13 Prev | Next Part: 13540820 *Qty: 4 THREADED STUD Superseded
Location: 14 Prev | Next Part: 11500321 *Qty: 4 THREADED STUD $0.90
Location: 15 Prev | Next Part: 11197771 *Qty: 8 Rondella Superseded
Location: 16 Prev | Next Part: 15896221 *Qty: 8 Dado Superseded
Location: 17 Prev | Next Part: 105556 *Qty: 3 Anello di tenuta $4.69
Location: 18 Prev | Next Part: 110006 *Qty: 2 Bussola $47.33
Location: 19 Prev | Next Part: 110007 *Qty: 1 Bussola $52.76
Location: 20 Prev | Next Part: 109532 *Qty: 1 Pescante anteriore $145.79
Location: 21 Prev | Next Part: 109534 *Qty: 1 Pescante posteriore $97.12
Location: 22 Prev | Next Part: 13540921 *Qty: 6 THREADED STUD $0.90
Location: 23 Prev | Next Part: 11197771 *Qty: 6 Rondella Superseded
Location: 24 Prev | Next Part: 15896221 *Qty: 6 Dado Superseded
Location: 25 Prev | Next Part: 100332 *Qty: 2 Filtro $14.41
Location: 26 Prev | Next Part: 103944 *Qty: 2 Anello di tenuta $128.16
Location: 27 Prev | Next Part: 109530 *Qty: 2 Guamizione Superseded
Location: 28 Prev | Next Part: 16043311 *Qty: 1 Bullone $1.83
Location: 29 Prev | Next Part: 12646700 *Qty: 1 Rondella piana Call
Location: 30 Prev | Next Part: 11198071 *Qty: 1 Rondella Superseded
Location: 31 Prev | Next Part: 110203 *Qty: 1 Raccordo $123.96
Location: 32 Prev | Next Part: 10303460 *Qty: 1 Guamizione Superseded
Location: 33 Prev | Next Part: 109371 *Qty: 1 Raccordo $233.25
Location: 34 Prev | Next Part: 10264660 *Qty: 1 Guamizione $6.08
Location: 35 Prev | Next Part: 110948 *Qty: 1 Pistoncino Superseded
Location: 36 Prev | Next Part: 106900 *Qty: 1 Molla $4.41
Location: 37 Prev | Next Part: 106238 *Qty: 1 Distanziate $1.88
Location: 38 Prev | Next Part: 10264660 *Qty: 1 Guamizione $6.08
Location: 39 Prev | Next Part: 106237 *Qty: 1 Tappo $69.92
Location: 40 Prev | Next Part: 10269850 *Qty: 1 Tappo $2.90
Location: 41 Prev | Next Part: 110664 *Qty: 1 Interruttore pressione olio $125.50
Location: 42 Prev | Next Part: 102704 *Qty: 2 Grano $2.18
Location: 43 Prev | Next Part: 117652 *Qty: 1 Supporto filtii $426.74
Location: 44 Prev | Next Part: 100325 *Qty: 2 Cartuccia per filtro senza valvola by-pass Superseded
Location: 44 Prev | Next Part: 191993 *Qty: 2 Cartuccia per filtro senza valvola by-pass
Fiamm Filter
$34.95
Location: 45 Prev | Next Part: 100327 *Qty: 2 Raccordo $26.49
Location: 46 Prev | Next Part: 106733 *Qty: 1 Guamizione Superseded
Location: 47 Prev | Next Part: 102887 *Qty: 1 Guamizione Superseded
Location: 48 Prev | Next Part: 118000 *Qty: 1 Trasmettitore elettrico di pressione 12V (0 ? 12 Kg. /cm?) Superseded
Location: 49 Prev | Next Part: 10257060 *Qty: 1 Guamizione $0.90
Location: 50 Prev | Next Part: 103020 *Qty: 1 Anello di tenuta $3.29
Location: 51 Prev | Next Part: 103021 *Qty: 1 Anello di tenuta $2.81
Location: 52 Prev | Next Part: 13543921 *Qty: 2 THREADED STUD $1.00
Location: 53 Prev | Next Part: 13543521 *Qty: 4 THREADED STUD Superseded
Location: 54 Prev | Next Part: 12601371 *Qty: 6 Rondella Superseded
Location: 55 Prev | Next Part: 16100821 *Qty: 6 Dado $0.90
Location: 56 Prev | Next Part: 13517021 *Qty: 1 THREADED STUD Call
Location: 57 Prev | Next Part: 13516821 *Qty: 1 THREADED STUD $1.10
Location: 58 Prev | Next Part: 13517221 *Qty: 1 THREADED STUD Superseded
Location: 59 Prev | Next Part: 11198071 *Qty: 3 Rondella Superseded
Location: 60 Prev | Next Part: 16100821 *Qty: 3 Dado $0.90
Location: 61 Prev | Next Part: 102326 *Qty: 1 Coperchio pompa olio $750.50
Location: 62 Prev | Next Part: 117658 *Qty: 1 Ingranaggio comando pompa $968.97
Location: 63 Prev | Next Part: 109954 *Qty: 1 Ingranaggio conduttore $1,079.46
Location: 64 Prev | Next Part: 109955 *Qty: 1 Ingranaggio condotto Call
Location: 65 Prev | Next Part: 102772 *Qty: 1 Alberino per ingranaggio condotto Call
Location: 66 Prev | Next Part: 102771 *Qty: 1 Boccola Call
Location: 67 Prev | Next Part: 102770 *Qty: 2 Bpccola $23.34
Location: 68 Prev | Next Part: 102900 *Qty: 1 Dado $9.67
Location: 69 Prev | Next Part: 102901 *Qty: 1 Rondella $0.90
Location: 70 Prev | Next Part: 14161970 *Qty: 1 Spina elastica Call
Location: 71 Prev | Next Part: 10205620 *Qty: 1 Lincjuetta $0.90
Location: 72 Prev | Next Part: 10734301 *Qty: 1 Coplglia $0.90
Location: 73 Prev | Next Part: 102032 *Qty: 2 Grano di centraggio $4.92
Location: 74 Prev | Next Part: 16043621 *Qty: 4 Bullone $0.90
Location: 75 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded

* Quantity shown indicates the number of pieces used in the diagram.
