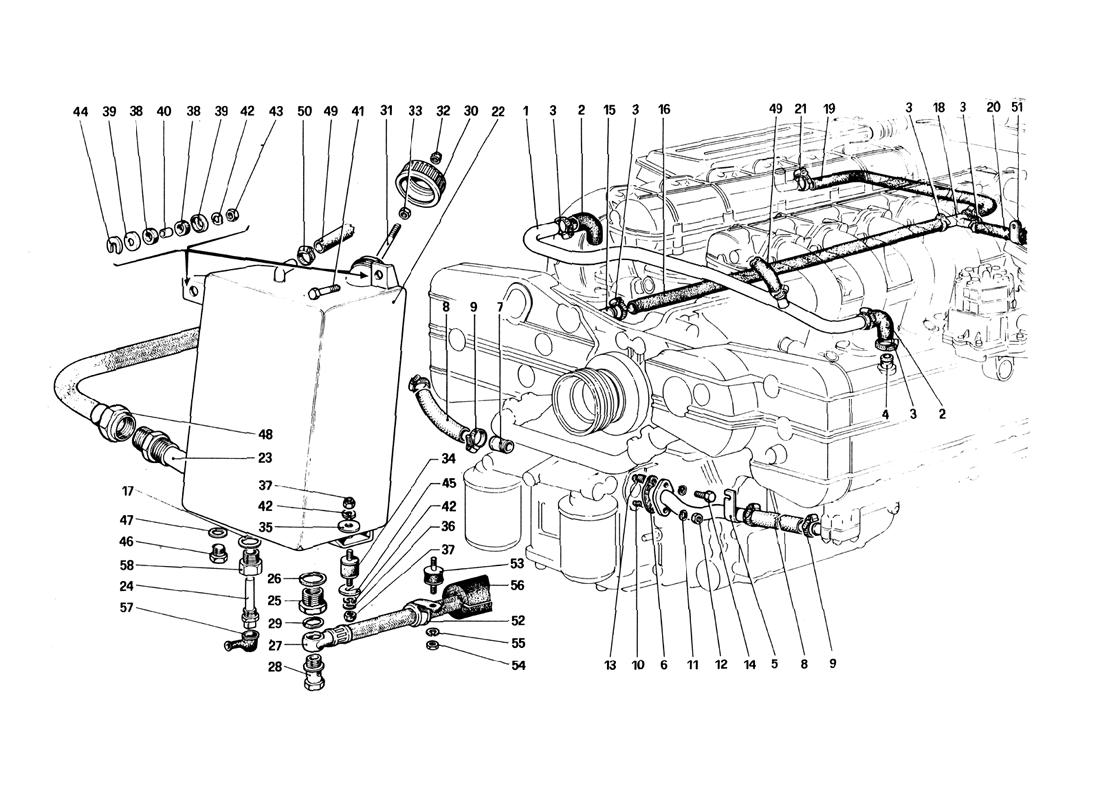

LUBRICATION - BLOW-BY AND OIL RESERVOIR

Go to Split View

LUBRICATION - BLOW-BY AND OIL RESERVOIR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 118264 *Qty: 1 Tubo complete per sfiato blow-by Call
Location: 2 Prev | Next Part: 104873 *Qty: 2 Manicotto $38.65
Location: 3 Prev | Next Part: 105622 *Qty: 6 Fascetta $4.66
Location: 4 Prev | Next Part: 102705 *Qty: 2 Raccordo per sfiatosui coperchi teste $33.98
Location: 5 Prev | Next Part: 109770 *Qty: 1 Tubo scarico olio testa Sx. $249.81
Location: 6 Prev | Next Part: 104558 *Qty: 1 Guarnizione Superseded
Location: 7 Prev | Next Part: 104561 *Qty: 1 Raccordo $11.20
Location: 8 Prev | Next Part: 104562 *Qty: 2 Tubo gomma Superseded
Location: 9 Prev | Next Part: 105622 *Qty: 4 Fascetta $4.66
Location: 10 Prev | Next Part: 11500221 *Qty: 1 THREADED STUD $0.90
Location: 11 Prev | Next Part: 106850 *Qty: 2 Rondella Superseded
Location: 12 Prev | Next Part: 15896221 *Qty: 2 Dado Superseded
Location: 13 Prev | Next Part: 13525570 *Qty: 1 Heli - coil $3.37
Location: 14 Prev | Next Part: 10902321 *Qty: 1 Vite Superseded
Location: 15 Prev | Next Part: 105195 *Qty: 1 Raccordo sul basamento $116.77
Location: 16 Prev | Next Part: 118229 *Qty: 1 Tubo Call
Location: 17 Prev | Next Part: 10257060 *Qty: 1 Guarnizione $0.90
Location: 18 Prev | Next Part: 109887 *Qty: 1 Raccordo a 3vie $314.32
Location: 19 Prev | Next Part: 118230 *Qty: 1 Tubo colleg. 3 vie alia presa aria Dx. Call
Location: 20 Prev | Next Part: 118231 *Qty: 1 Tubo colleg. 3 vie alia presa aria Sx. Call
Location: 21 Prev | Next Part: 105622 *Qty: 4 Fascetta $4.66
Location: 22 Prev | Next Part: 110644 *Qty: 1 Serbatoio olio Call
Location: 23 Prev | Next Part: 110665 *Qty: 1 Assieme filtro olio $283.01
Location: 24 Prev | Next Part: 107576 *Qty: 1 Termistore olio $139.53
Location: 25 Prev | Next Part: 109721 *Qty: 1 Boccola $81.01
Location: 26 Prev | Next Part: 10265060 *Qty: 1 Guarnizione $0.90
Location: 27 Prev | Next Part: 118004 *Qty: 1 Tubo dalla pompa di recupero al serbatoio Call
Location: 28 Prev | Next Part: 109694 *Qty: 1 Bocchettone $116.98
Location: 29 Prev | Next Part: 10264660 *Qty: 2 Guarnizione $6.08
Location: 30 Prev | Next Part: 109719 *Qty: 1 Tappo Superseded
Location: 31 Prev | Next Part: 110754 *Qty: 1 Asta livello olio $82.89
Location: 32 Prev | Next Part: 100044 *Qty: 1 Dado cieco $0.90
Location: 33 Prev | Next Part: 1589621 *Qty: 1 Dado Call
Location: 34 Prev | Next Part: 101495 *Qty: 1 Supporto antivibrante $16.14
Location: 35 Prev | Next Part: 12646201 *Qty: 1 Rondella $0.90
Location: 36 Prev | Next Part: 10519601 *Qty: 1 Rondella Superseded
Location: 37 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 38 Prev | Next Part: 107978 *Qty: 4 Tassello elastico $1.50
Location: 39 Prev | Next Part: 107979 *Qty: 4 Scodellino $0.90
Location: 40 Prev | Next Part: 107980 *Qty: 2 Boccola distanziale $7.88
Location: 41 Prev | Next Part: 16043921 *Qty: 1 Vite $0.90
Location: 42 Prev | Next Part: 106852 *Qty: 4 Rondella Superseded
Location: 43 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 44 Prev | Next Part: 106470 *Qty: 1 Rondella rasamento spess. mm. 1 $10.14
Location: 44 Prev | Next Part: 106471 *Qty: 1 Rondella rasamento spess. mm. 2 $11.11
Location: 44 Prev | Next Part: 106472 *Qty: 1 Rondella rasamento spess. mm. 3 $13.03
Location: 45 Prev | Next Part: 107338 *Qty: 1 Rondella rasamento spess. mm. 1.5 $2.00
Location: 45 Prev | Next Part: 107339 *Qty: 1 Rondella rasamento spess. mm. 2 $2.00
Location: 45 Prev | Next Part: 107340 *Qty: 1 Rondella rasamento spess. mm. 2.5 $2.00
Location: 45 Prev | Next Part: 107341 *Qty: 1 Rondella rasamento spess. mm. 3 $2.00
Location: 45 Prev | Next Part: 107342 *Qty: 1 Rondella rasamento spess. mm. 3.25 $1.22
Location: 45 Prev | Next Part: 101039 *Qty: 1 Rondella rasamento spess. mm. 1 $2.00
Location: 46 Prev | Next Part: 10305171 *Qty: 1 Tappo scarico $2.46
Location: 47 Prev | Next Part: 10263460 *Qty: 1 Guarnizione Superseded
Location: 48 Prev | Next Part: 109537 *Qty: 1 Tubo dal serbatoio alia pompa di mandata Call
Location: 49 Prev | Next Part: 110890 *Qty: 1 Tubo colleg. serbatoio olio al tubo blow - by $30.24
Location: 50 Prev | Next Part: 12179990 *Qty: 2 Fascetta Superseded
Location: 51 Prev | Next Part: 10451090 *Qty: 1 Fascetta sostegno tubo alia presa aria Sx. $1.56
Location: 52 Prev | Next Part: 10442190 *Qty: 2 Fascetta sostegno tubo $0.97
Location: 53 Prev | Next Part: 102947 *Qty: 2 Tampone antivibrante $18.79
Location: 54 Prev | Next Part: 15896211 *Qty: 2 Dado Superseded
Location: 55 Prev | Next Part: 106850 *Qty: 2 Rondella Superseded
Location: 56 Prev | Next Part: 110793 *Qty: 1 1Isolante per tubo $15.41
Location: 57 Prev | Next Part: 107003 *Qty: 1 Cappuccetto per termistore $7.12
Location: 58 Prev | Next Part: 112256 *Qty: 1 Raccordo $46.00

* Quantity shown indicates the number of pieces used in the diagram.
