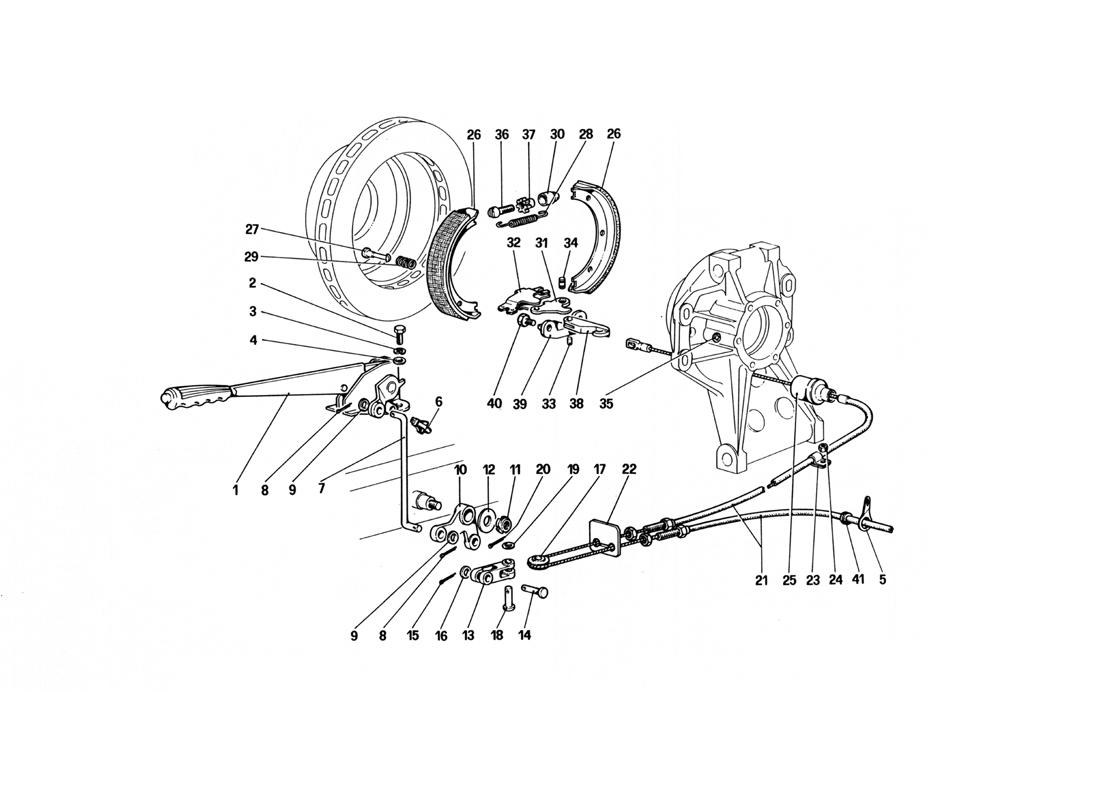

HAND-BRAKE CONTROL

Go to Split View

HAND-BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109661 *Qty: 1 Leva comando freno a mano $414.13
Location: 2 Prev | Next Part: 16043221 *Qty: 3 Bullone $0.90
Location: 3 Prev | Next Part: 106852 *Qty: 3 Rondella Superseded
Location: 4 Prev | Next Part: 10519621 *Qty: 3 Rondella $0.90
Location: 5 Prev | Next Part: 107161 *Qty: 1 Staffa sul motore sostegno guaina $4.66
Location: 6 Prev | Next Part: 105949 *Qty: 1 Interruttore per spia $35.49
Location: 7 Prev | Next Part: 105418 *Qty: 1 Tirante $23.58
Location: 8 Prev | Next Part: 10734301 *Qty: 2 Copiglia $0.90
Location: 9 Prev | Next Part: 12625201 *Qty: 2 Rondella Superseded
Location: 10 Prev | Next Part: 101193 *Qty: 1 Leva di rinvio $287.16
Location: 11 Prev | Next Part: 100865 *Qty: 1 Ghiera $14.00
Location: 12 Prev | Next Part: 100853 *Qty: 1 Rondella $16.81
Location: 13 Prev | Next Part: 101194 *Qty: 1 Forcellino $193.31
Location: 14 Prev | Next Part: 101195 *Qty: 1 Perno Call
Location: 15 Prev | Next Part: 10734301 *Qty: 1 Copiglia $0.90
Location: 16 Prev | Next Part: 10519601 *Qty: 1 Rondella Superseded
Location: 17 Prev | Next Part: 101197 *Qty: 1 Carrucola $39.46
Location: 18 Prev | Next Part: 101196 *Qty: 1 Perno $49.97
Location: 19 Prev | Next Part: 10519601 *Qty: 1 Rondella Superseded
Location: 20 Prev | Next Part: 10734301 *Qty: 1 Copiglia $0.90
Location: 21 Prev | Next Part: 105420 *Qty: 1 Fune completa comando freno $330.55
Location: 22 Prev | Next Part: 105419 *Qty: 1 Piastrina sul registro Call
Location: 23 Prev | Next Part: 103529 *Qty: 3 Fascetta fissaggio fune al motore e al cambio $4.44
Location: 24 Prev | Next Part: 12574211 *Qty: 2 Dado Superseded
Location: 25 Prev | Next Part: 105735 *Qty: 2 Coperchietto protezione forcellino Superseded
Location: 26 Prev | Next Part: 101270 *Qty: 4 Ceppo freno Superseded
Location: 27 Prev | Next Part: 101275 *Qty: 4 Perno fissaggio molla $19.13
Location: 28 Prev | Next Part: 101276 *Qty: 4 Molla richiamo ceppi $14.46
Location: 29 Prev | Next Part: 101277 *Qty: 4 Molla $0.90
Location: 30 Prev | Next Part: 101279 *Qty: 2 Sede per vite di regolazione $13.38
Location: 31 Prev | Next Part: 101280 *Qty: 2 Leva di comando interna $5.09
Location: 32 Prev | Next Part: 101281 *Qty: 2 Leva di comando esterna $7.22
Location: 33 Prev | Next Part: 101282 *Qty: 2 Perno fiss. forcellino alia leva interna $1.36
Location: 34 Prev | Next Part: 101283 *Qty: 2 Perno per snodo $3.82
Location: 35 Prev | Next Part: 101284 *Qty: 4 Piattello per molla Call
Location: 36 Prev | Next Part: 101285 *Qty: 2 Vite $8.27
Location: 37 Prev | Next Part: 101286 *Qty: 2 Dado per vite di regolazione $15.73
Location: 38 Prev | Next Part: 105270 *Qty: 2 Forcellino comando leva interna $53.79
Location: 39 Prev | Next Part: 106243 *Qty: 2 Tassello sul portamozzo Call
Location: 40 Prev | Next Part: 106242 *Qty: 4 Vite fissaggio tassello e appoggio leve comando ceppi freno a mano $4.38
Location: 41 Prev | Next Part: 100286 *Qty: 1 Passafilo Superseded

* Quantity shown indicates the number of pieces used in the diagram.
