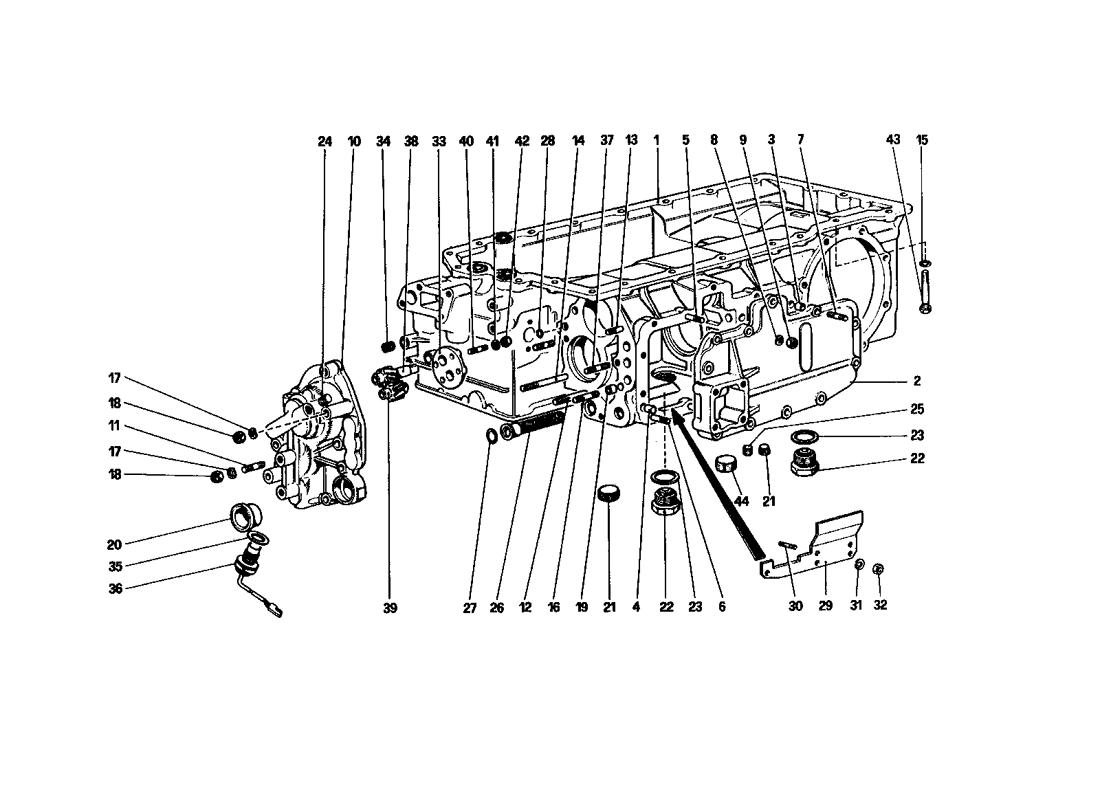

GEARBOX

Go to Split View

GEARBOX

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 119380 *Qty: 1 Cambio complete Call
Location: 1 Prev | Next Part: 117323 *Qty: 1 Scatola cambio Call
Location: 1 Prev | Next Part: 119381 *Qty: 1 Scatola cambio completa $13,720.64
Location: 2 Prev | Next Part: 107450 *Qty: 1 Coperchio laterale scatola cambio Superseded
Location: 3 Prev | Next Part: 100041 *Qty: 1 Grano $9.31
Location: 4 Prev | Next Part: 10839810 *Qty: 1 Grano $0.90
Location: 5 Prev | Next Part: 13543521 *Qty: 6 Prigioniero lungo Superseded
Location: 6 Prev | Next Part: 13543321 *Qty: 5 Prigioniero coi to Superseded
Location: 7 Prev | Next Part: 13543621 *Qty: 1 Prigioniero sul grano Superseded
Location: 8 Prev | Next Part: 12601371 *Qty: 12 Rondella Superseded
Location: 9 Prev | Next Part: 16100821 *Qty: 12 Dado $3.46
Location: 10 Prev | Next Part: 117790 *Qty: 1 Coperchio anteriore Superseded
Location: 11 Prev | Next Part: 13543621 *Qty: 2 Prigioniero per supporto alternatore Superseded
Location: 12 Prev | Next Part: 13544421 *Qty: 1 THREADED STUD $0.90
Location: 13 Prev | Next Part: 13544221 *Qty: 1 THREADED STUD Superseded
Location: 14 Prev | Next Part: 13970921 *Qty: 1 THREADED STUD $0.95
Location: 15 Prev | Next Part: 103039 *Qty: 1 Anello di tenuta $1.15
Location: 16 Prev | Next Part: 13543921 *Qty: 2 Prigioniero sul grano $1.01
Location: 17 Prev | Next Part: 12601371 *Qty: 11 Rondella Superseded
Location: 18 Prev | Next Part: 16100821 *Qty: 11 Dado $3.46
Location: 19 Prev | Next Part: 100041 *Qty: 2 Grano di centraggio $9.31
Location: 20 Prev | Next Part: 103188 *Qty: 1 Bussola sul coperchio uscita asta comando cambio $57.05
Location: 21 Prev | Next Part: 10270050 *Qty: 2 Tappo chiusura foro $2.96
Location: 22 Prev | Next Part: 100826 *Qty: 2 Tappo scarico olio cambio e differenziale $99.50
Location: 23 Prev | Next Part: 10265160 *Qty: 2 Guarnizione $2.17
Location: 24 Prev | Next Part: 10269450 *Qty: 3 Tappo $34.19
Location: 25 Prev | Next Part: 104757 *Qty: 1 Tappo chiusura foro per aste comando cambio $0.93
Location: 26 Prev | Next Part: 109726 *Qty: 1 Filtro olio $226.33
Location: 27 Prev | Next Part: 101033 *Qty: 1 Anello di tenuta $2.11
Location: 28 Prev | Next Part: 101030 *Qty: 1 Anello di tenuta $1.40
Location: 29 Prev | Next Part: 109781 *Qty: 1 Convogliatore olio per 4a e 5a vel. $20.21
Location: 30 Prev | Next Part: 13540721 *Qty: 5 THREADED STUD Superseded
Location: 31 Prev | Next Part: 106850 *Qty: 5 Rondella Superseded
Location: 32 Prev | Next Part: 15896221 *Qty: 5 Dado Superseded
Location: 33 Prev | Next Part: 109717 *Qty: 1 Coperchietto pompa olio $204.14
Location: 34 Prev | Next Part: 13525870 *Qty: 3 Heli-coil $3.43
Location: 35 Prev | Next Part: 10263460 *Qty: 1 Guarnizione Superseded
Location: 36 Prev | Next Part: 116987 *Qty: 1 Generatore di impulsi comando contachilometri $272.49
Location: 37 Prev | Next Part: 13543721 *Qty: 4 THREADED STUD $0.90
Location: 38 Prev | Next Part: 109722 *Qty: 1 Ingranaggio conduttore $395.90
Location: 39 Prev | Next Part: 109723 *Qty: 1 Ingranaggio condotto $611.61
Location: 40 Prev | Next Part: 13540921 *Qty: 4 THREADED STUD Call
Location: 41 Prev | Next Part: 12601271 *Qty: 4 Rondella Superseded
Location: 42 Prev | Next Part: 10725911 *Qty: 4 Dado Superseded
Location: 43 Prev | Next Part: 109997 *Qty: 1 Vite fissaggio scatola cambio at basamento $81.38
Location: 44 Prev | Next Part: 14326050 *Qty: 1 Tappo chiusura foro passaggio rullini $1.72

* Quantity shown indicates the number of pieces used in the diagram.
