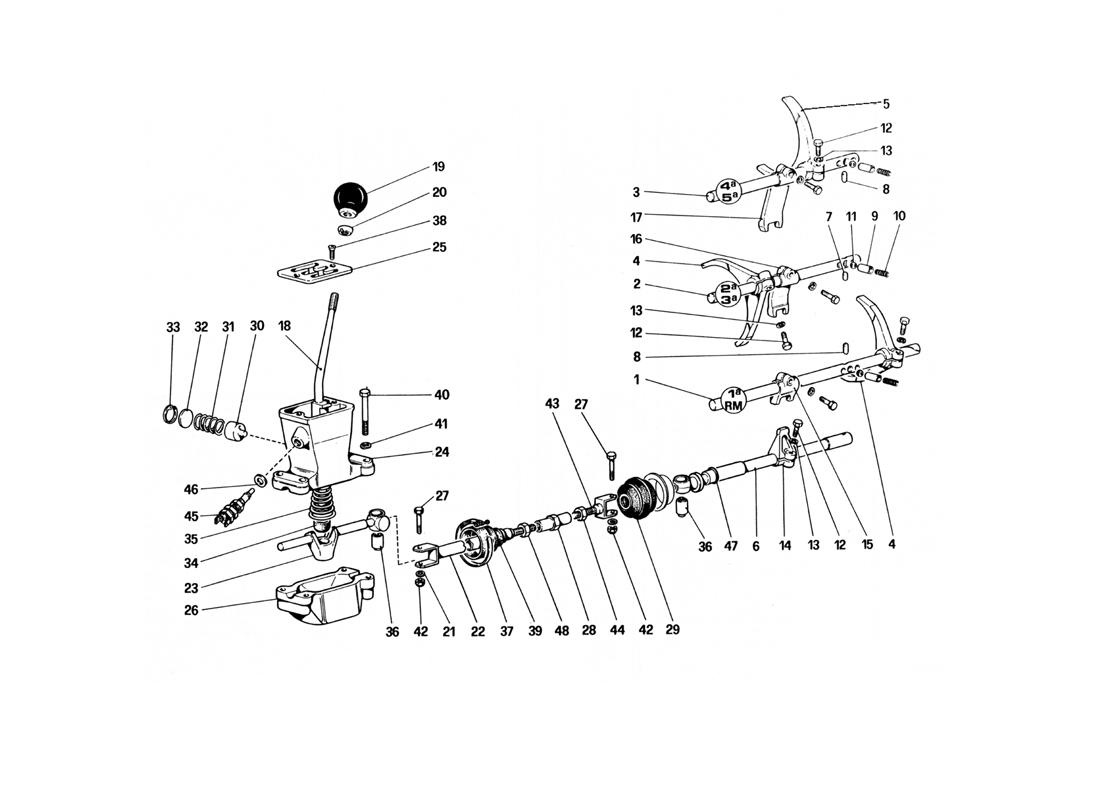

GEARBOX CONTROLS

Go to Split View

GEARBOX CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 107451 *Qty: 1 Asta comando forcella 1? vel. e R.M. $66.39
Location: 2 Prev | Next Part: 107452 *Qty: 1 Asta comando forcella 2? e 3? vel. $63.73
Location: 3 Prev | Next Part: 107453 *Qty: 1 Asta comando forcella 4? e 5? vel. $138.68
Location: 4 Prev | Next Part: 107374 *Qty: 2 Forcella comando innesto 1? 2? 3? velocita e R.M. $129.95
Location: 5 Prev | Next Part: 107375 *Qty: 1 Forcella comando innesto 4? e 5? vel. $1,836.10
Location: 6 Prev | Next Part: 111870 *Qty: 1 Asta comando cambio $96.85
Location: 7 Prev | Next Part: 107454 *Qty: 1 Rullino arresto asta centrale $0.90
Location: 8 Prev | Next Part: 103011 *Qty: 2 Rullino arresto aste laterali $68.28
Location: 9 Prev | Next Part: 100749 *Qty: 3 Bussola per molla $56.84
Location: 10 Prev | Next Part: 100750 *Qty: 3 Molla $1.23
Location: 11 Prev | Next Part: 101612 *Qty: 3 Sfera arresto aste $0.90
Location: 12 Prev | Next Part: 16043521 *Qty: 7 Bullone Superseded
Location: 13 Prev | Next Part: 106852 *Qty: 7 Rondella Superseded
Location: 14 Prev | Next Part: 106217 *Qty: 1 Levetta comando forcellini $192.62
Location: 15 Prev | Next Part: 106221 *Qty: 1 Forcellino comando asta la velocita e R.M. $181.25
Location: 16 Prev | Next Part: 106222 *Qty: 1 Forcellino comando asta 2? e 3? vel. $42.22
Location: 17 Prev | Next Part: 106223 *Qty: 1 Forcellino comando asta 4? e 5? vel. $197.86
Location: 18 Prev | Next Part: 108874 *Qty: 1 Leva comando cambio $396.89
Location: 19 Prev | Next Part: 103301 *Qty: 1 Pomello per leva $251.52
Location: 20 Prev | Next Part: 108010 *Qty: 1 Controdado $33.66
Location: 21 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 22 Prev | Next Part: 107378 *Qty: 1 Barra comando cambio $215.96
Location: 23 Prev | Next Part: 111446 *Qty: 1 Perno con sede snodo $59.03
Location: 24 Prev | Next Part: 105438 *Qty: 1 Gearbox casing Call
Location: 24 Prev | Next Part: 108848 *Qty: 1 Scatola comando cambio completa Superseded
Location: 25 Prev | Next Part: 105439 *Qty: 1 Selettore marce Superseded
Location: 26 Prev | Next Part: 104315 *Qty: 1 Coperchio inferiore Call
Location: 27 Prev | Next Part: 107830 *Qty: 2 Vite $6.03
Location: 28 Prev | Next Part: 103321 *Qty: 1 Tirante per registro $7.84
Location: 29 Prev | Next Part: 106168 *Qty: 1 Soffietto per asta $18.14
Location: 30 Prev | Next Part: 103317 *Qty: 1 Puntalino richiamo leva $16.66
Location: 31 Prev | Next Part: 103318 *Qty: 1 Molla richiamo leva $5.53
Location: 32 Prev | Next Part: 103319 *Qty: 1 Dischetto ritegno molla $25.19
Location: 33 Prev | Next Part: 103326 *Qty: 1 Anello seeger $0.90
Location: 34 Prev | Next Part: 108214 *Qty: 1 Sede sferica per leva Superseded
Location: 35 Prev | Next Part: 108823 *Qty: 1 Molla centrale $2.80
Location: 36 Prev | Next Part: 106814 *Qty: 2 Silentbloc Superseded
Location: 37 Prev | Next Part: 10291490 *Qty: 1 Fascetta $1.94
Location: 38 Prev | Next Part: 101619 *Qty: 2 Vite fissaggio selettore $12.10
Location: 39 Prev | Next Part: 106687 *Qty: 1 Soffietto riparo barra comando cambio $8.59
Location: 40 Prev | Next Part: 16136621 *Qty: 4 Vite $1.94
Location: 41 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded
Location: 42 Prev | Next Part: 101309 *Qty: 2 Dado Call
Location: 43 Prev | Next Part: 106820 *Qty: 1 Forcellino e perno registro $231.00
Location: 44 Prev | Next Part: 10791921 *Qty: 1 Controdado (filetto Sx.) $4.59
Location: 45 Prev | Next Part: 104320 *Qty: 1 Interruttore segnalazione luce R.M. Superseded
Location: 46 Prev | Next Part: 12601571 *Qty: 1 Rondella $0.90
Location: 47 Prev | Next Part: 105140 *Qty: 1 Anello ditenuta $3.86
Location: 48 Prev | Next Part: 10791221 *Qty: 1 Controdado (filetto Dx.) $4.76

* Quantity shown indicates the number of pieces used in the diagram.
