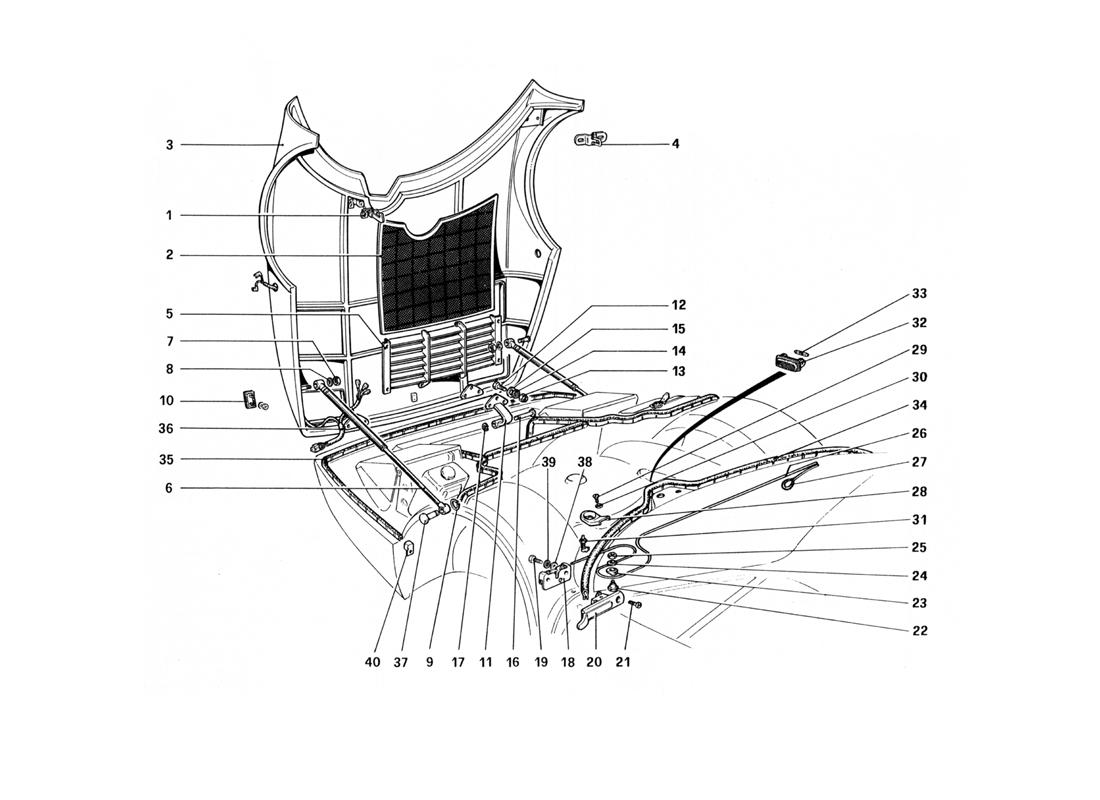

FRONT COMPARTMENT LID

Go to Split View

FRONT COMPARTMENT LID

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60858000 *Qty: 1 Gancio di sicurezza $73.36
Location: 2 Prev | Next Part: 50200807 *Qty: 1 Tappeto cofaho Call
Location: 3 Prev | Next Part: 60949700 *Qty: 1 Cofano ant. per GD $7,758.56
Location: 3 Prev | Next Part: 60852700 *Qty: 1 Cofano ant. per GS Call
Location: 4 Prev | Next Part: 60509600 *Qty: 2 Perno per serritura Call
Location: 5 Prev | Next Part: 50006204 *Qty: 1 Griglia $1,731.36
Location: 6 Prev | Next Part: 60853900 *Qty: 2 Ammortizzatore $87.32
Location: 7 Prev | Next Part: 16104111 *Qty: 2 Dado Superseded
Location: 8 Prev | Next Part: 12625201 *Qty: 2 Rondella Superseded
Location: 9 Prev | Next Part: 11087876 *Qty: 2 Seeger $0.90
Location: 10 Prev | Next Part: 60795400 *Qty: 1 Fregio Ferrari $233.13
Location: 11 Prev | Next Part: 50028202 *Qty: 2 Cerniera $105.05
Location: 12 Prev | Next Part: 16043211 *Qty: 6 Vite $0.90
Location: 13 Prev | Next Part: 16100811 *Qty: 6 Dado Superseded
Location: 14 Prev | Next Part: 10516670 *Qty: 6 Rondella elastica $0.90
Location: 15 Prev | Next Part: 10519621 *Qty: 6 Rondella piana $0.90
Location: 16 Prev | Next Part: 50097707 *Qty: 2 Perno Call
Location: 17 Prev | Next Part: 11065675 *Qty: 2 Seeger Superseded
Location: 18 Prev | Next Part: 60277407 *Qty: 2 Serratura Call
Location: 19 Prev | Next Part: 60895100 *Qty: 4 Vite $1.44
Location: 20 Prev | Next Part: 50036508 *Qty: 1 Maniglia apertura Call
Location: 21 Prev | Next Part: 50208107 *Qty: 2 Vite $0.90
Location: 22 Prev | Next Part: 50093509 *Qty: 1 Perno $8.60
Location: 23 Prev | Next Part: 50093400 *Qty: 1 Qoccola $3.85
Location: 24 Prev | Next Part: 11196270 *Qty: 1 Rondella Call
Location: 25 Prev | Next Part: 10794011 *Qty: 1 Dado $0.90
Location: 26 Prev | Next Part: 50036805 *Qty: 1 Cavo $22.20
Location: 27 Prev | Next Part: 50036904 *Qty: 1 Cavo emergenza $15.12
Location: 28 Prev | Next Part: 50097400 *Qty: 1 Staffa per gancio sicurezza Call
Location: 29 Prev | Next Part: 10979421 *Qty: 2 Vite $0.90
Location: 30 Prev | Next Part: 10615470 *Qty: 2 Rondella Call
Location: 31 Prev | Next Part: 20166807 *Qty: 1 COURTESY LIGHT SWITCH $14.18
Location: 31 Prev | Next Part: 20069704 *Qty: 1 Pulsante plafoniera Superseded
Location: 32 Prev | Next Part: 20144309 *Qty: 1 Plafoniera Call
Location: 33 Prev | Next Part: 50100205 *Qty: 2 Lampada Call
Location: 34 Prev | Next Part: 50044502 *Qty: 1 Guarnizione Call
Location: 35 Prev | Next Part: 50156108 *Qty: 1 Guamizione $122.37
Location: 36 Prev | Next Part: 50324003 *Qty: 1 Cavo collegamento luci ant. Dx. $72.69
Location: 36 Prev | Next Part: 50324102 *Qty: 1 Cavo collegamento luci ant. Sx. $72.69
Location: 37 Prev | Next Part: 60599500 *Qty: 2 Perno $17.71
Location: 38 Prev | Next Part: 10519501 *Qty: 8 Rondella piana $0.90
Location: 39 Prev | Next Part: 10516571 *Qty: 4 Rondella elastica Superseded
Location: 40 Prev | Next Part: 50371103 *Qty: 2 Terminale per guarnizione Call

* Quantity shown indicates the number of pieces used in the diagram.
