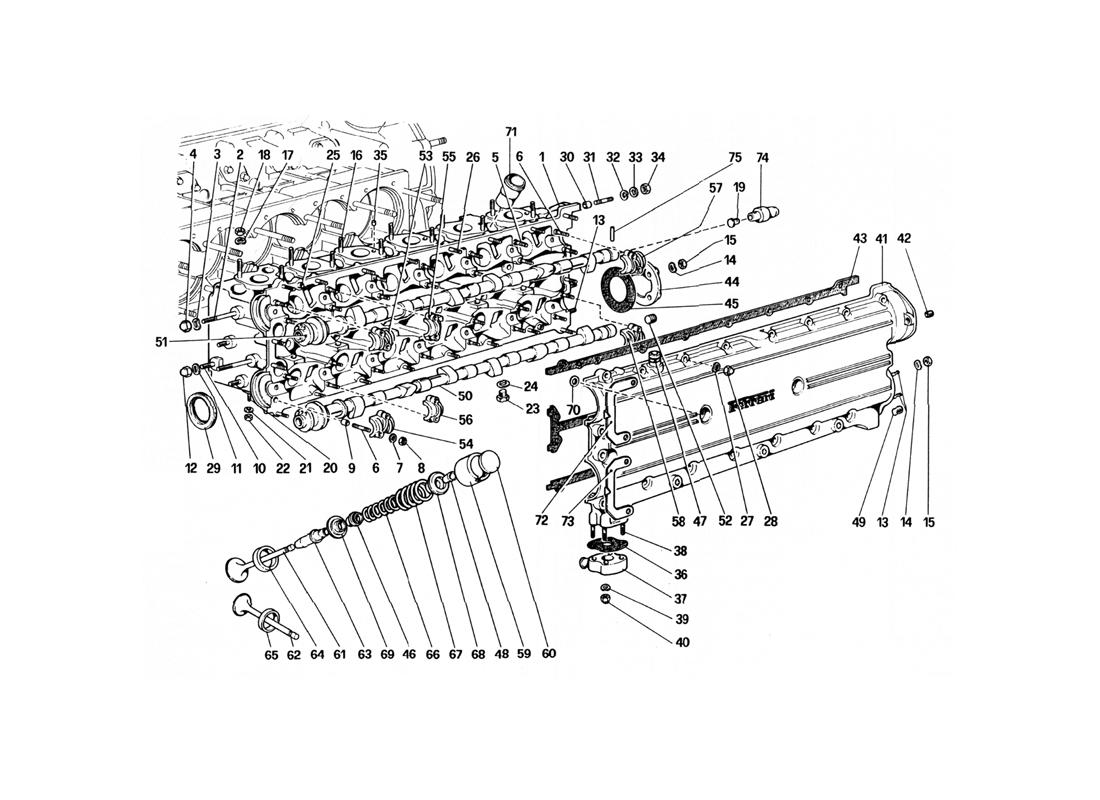

CYLINDER HEAD (LEFT)

Go to Split View

CYLINDER HEAD (LEFT)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 117296 *Qty: 1 Testa cilindri Sx. Call
Location: 1 Prev | Next Part: 117474 *Qty: 1 Testa cilindri Sx. completa $8,296.24
Location: 2 Prev | Next Part: 13518121 *Qty: 2 Prigioniero fiss. carter distribuzione Call
Location: 3 Prev | Next Part: 12601371 *Qty: 2 Rondella Superseded
Location: 4 Prev | Next Part: 101139 *Qty: 2 Dado $0.90
Location: 5 Prev | Next Part: 102735 *Qty: 20 Prigioniero fiss. cappelli intermedi $23.76
Location: 6 Prev | Next Part: 102754 *Qty: 8 Prigioniero fiss. cappelli esterni $6.11
Location: 7 Prev | Next Part: 11197773 *Qty: 28 Rondella Superseded
Location: 8 Prev | Next Part: 15896211 *Qty: 28 Dado Superseded
Location: 9 Prev | Next Part: 102725 *Qty: 28 Grano di centraggio $0.90
Location: 10 Prev | Next Part: 13516821 *Qty: 3 THREADED STUD $1.08
Location: 11 Prev | Next Part: 12601371 *Qty: 3 Rondella Superseded
Location: 12 Prev | Next Part: 101139 *Qty: 3 Dado $0.90
Location: 13 Prev | Next Part: 11500321 *Qty: 4 THREADED STUD $0.90
Location: 14 Prev | Next Part: 12601271 *Qty: 4 Rondella Superseded
Location: 15 Prev | Next Part: 102741 *Qty: 4 Dado $0.90
Location: 16 Prev | Next Part: 13517021 *Qty: 12 Prigioniero corto Call
Location: 17 Prev | Next Part: 11194071 *Qty: 12 Rondella $0.90
Location: 18 Prev | Next Part: 16100811 *Qty: 12 Dado Superseded
Location: 19 Prev | Next Part: 112547 *Qty: 1 Tappo per innesto distributore $22.88
Location: 20 Prev | Next Part: 13543321 *Qty: 10 THREADED STUD Superseded
Location: 21 Prev | Next Part: 106852 *Qty: 10 Rondella Superseded
Location: 22 Prev | Next Part: 105938 *Qty: 10 Dado Superseded
Location: 23 Prev | Next Part: 10300740 *Qty: 1 Tappo scarico acqua $16.09
Location: 24 Prev | Next Part: 10257060 *Qty: 1 Guarnizione $0.90
Location: 25 Prev | Next Part: 102725 *Qty: 2 Grano di centraggio $0.90
Location: 26 Prev | Next Part: 13541321 *Qty: 22 THREADED STUD Superseded
Location: 27 Prev | Next Part: 12601271 *Qty: 18 Rondelta Superseded
Location: 28 Prev | Next Part: 100044 *Qty: 22 Dado $0.90
Location: 29 Prev | Next Part: 105389 *Qty: 2 Anello di tenuta Superseded
Location: 30 Prev | Next Part: 102704 *Qty: 2 Grano di centraggio $2.18
Location: 31 Prev | Next Part: 13517421 *Qty: 2 THREADED STUD $41.97
Location: 32 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 33 Prev | Next Part: 11198071 *Qty: 2 Rondelia Superseded
Location: 34 Prev | Next Part: 16100811 *Qty: 2 Dado Superseded
Location: 35 Prev | Next Part: 100185 *Qty: 4 Grano di centraggio $25.79
Location: 36 Prev | Next Part: 102607 *Qty: 1 Guarnizione Superseded
Location: 37 Prev | Next Part: 104483 *Qty: 1 Bocchettone scarico olio $138.34
Location: 38 Prev | Next Part: 11501021 *Qty: 4 THREADED STUD $0.90
Location: 39 Prev | Next Part: 12601271 *Qty: 4 Rondella Superseded
Location: 40 Prev | Next Part: 15896211 *Qty: 4 Dado Superseded
Location: 41 Prev | Next Part: 103779 *Qty: 1 Coperchio Call
Location: 41 Prev | Next Part: 106555 *Qty: 1 Coperchio testa cilindri completo Call
Location: 42 Prev | Next Part: 13525770 *Qty: 1 Heli - coil $0.90
Location: 43 Prev | Next Part: - *Qty: 1 Cam Cover Gasket Set Call
Location: 43 Prev | Next Part: 106436 *Qty: 1 Guarnizione Superseded
Location: 44 Prev | Next Part: 103796 *Qty: 1 Coperchietto posteriore $405.78
Location: 45 Prev | Next Part: 104694 *Qty: 1 Guarnizione Superseded
Location: 46 Prev | Next Part: 100243 *Qty: 12 Paraolio sulla guida valvola Superseded
Location: 47 Prev | Next Part: 102705 *Qty: 1 Raccordo $32.95
Location: 48 Prev | Next Part: 102862 *Qty: 48 Semicono per scodellino molla valvola $14.04
Location: 49 Prev | Next Part: 10269750 *Qty: 1 Tappo conico per coperchio testa $2.01
Location: 50 Prev | Next Part: 117480 *Qty: 1 Albero distribuzione aspirazione completo $1,396.85
Location: 50 Prev | Next Part: 117479 *Qty: 1 Albero distribuzione scarico completo. $1,396.85
Location: 50 Prev | Next Part: 117322 *Qty: 1 Albeto distribuzione scarico Call
Location: 51 Prev | Next Part: 117321 *Qty: 1 Albero distribuzione aspirazione Sx. Call
Location: 52 Prev | Next Part: 10269750 *Qty: 1 Tappo $2.01
Location: 53 Prev | Next Part: 115468 *Qty: 1 Cappello antei iore Call
Location: 54 Prev | Next Part: 115469 *Qty: 1 Cappello anteriore Call
Location: 55 Prev | Next Part: 116445 *Qty: 5 Cappello intermedio Call
Location: 56 Prev | Next Part: 116446 *Qty: 5 Cappello intermedio Call
Location: 57 Prev | Next Part: 116447 *Qty: 1 Cappello posteriore Call
Location: 58 Prev | Next Part: 116448 *Qty: 1 Cappello posteriore Call
Location: 59 Prev | Next Part: 100232 *Qty: 24 Punteria comando valvola $88.48
Location: 60 Prev | Next Part: 102852 *Qty: 24 Idem spessore mm. 4.45 $11.32
Location: 60 Prev | Next Part: 102841 *Qty: 24 Idem spessore mm. 3.90 Call
Location: 60 Prev | Next Part: 108669 *Qty: 24 Idem spessore mm. 3.35 $10.20
Location: 60 Prev | Next Part: 102853 *Qty: 24 Idem spessore mm. 4.50 $10.20
Location: 60 Prev | Next Part: 116105 *Qty: 24 Idem spessore mm. 3.92 $9.05
Location: 60 Prev | Next Part: 108670 *Qty: 24 Idem spessore mm. 3.40 $10.20
Location: 60 Prev | Next Part: 102854 *Qty: 24 Idem spessore mm. 4.55 $11.32
Location: 60 Prev | Next Part: 116106 *Qty: 24 Idem spessore mm. 3.97 $9.05
Location: 60 Prev | Next Part: 108671 *Qty: 24 Idem spessore mm. 3.45 $10.20
Location: 60 Prev | Next Part: 104347 *Qty: 24 Idem spessore mm. 4.60 $10.41
Location: 60 Prev | Next Part: 102843 *Qty: 24 Idem spessore mm. 4.00 $11.32
Location: 60 Prev | Next Part: 102833 *Qty: 24 Idem spessore mm. 3.50 $11.32
Location: 60 Prev | Next Part: 102848 *Qty: 24 Piattello registrazione valvole spessore mm. 3.95 $11.32
Location: 60 Prev | Next Part: 116107 *Qty: 24 Idem spessore mm. 4.02 $10.65
Location: 60 Prev | Next Part: 102834 *Qty: 24 Idem spessore mm. 3.55 $11.32
Location: 60 Prev | Next Part: 102844 *Qty: 24 Idem spessore mm. 4.05 $11.32
Location: 60 Prev | Next Part: 102835 *Qty: 24 Idem spessore mm. 3.60 Call
Location: 60 Prev | Next Part: 102836 *Qty: 24 Idem spessore mm. 3.65 $10.20
Location: 60 Prev | Next Part: 116108 *Qty: 24 Idem spessore mm. 4.07 $9.05
Location: 60 Prev | Next Part: 116100 *Qty: 24 Idem spessore mm. 3.67 $9.05
Location: 60 Prev | Next Part: 102845 *Qty: 24 Idem spessore mm. 4.10 $10.20
Location: 60 Prev | Next Part: 102837 *Qty: 24 Idem spessore mm. 3.70 $10.20
Location: 60 Prev | Next Part: 116109 *Qty: 24 Idem spessore mm. 4.12 $9.05
Location: 60 Prev | Next Part: 116101 *Qty: 24 Idem spessore mm. 3.72 $11.32
Location: 60 Prev | Next Part: 102846 *Qty: 24 Idem spessore mm. 4.15 $11.32
Location: 60 Prev | Next Part: 102838 *Qty: 24 Idem spessore mm. 3.75 $10.20
Location: 60 Prev | Next Part: 116110 *Qty: 24 Idem spessore mm. 4.17 $10.65
Location: 60 Prev | Next Part: 102847 *Qty: 24 Idem spessore mm. 4.20 $11.32
Location: 60 Prev | Next Part: 116102 *Qty: 24 Idem spessore mm. 3.77 $9.05
Location: 60 Prev | Next Part: 102842 *Qty: 24 Idem spessore mm. 4.25 $11.67
Location: 60 Prev | Next Part: 102839 *Qty: 24 Idem spessore mm. 3.80 $11.32
Location: 60 Prev | Next Part: 102849 *Qty: 24 Idem spessore mm. 4.30 $11.67
Location: 60 Prev | Next Part: 116103 *Qty: 24 Idem spessore mm. 3.82 $9.52
Location: 60 Prev | Next Part: 102850 *Qty: 24 Idem spessore mm. 4.35 $11.67
Location: 60 Prev | Next Part: 102840 *Qty: 24 Idem spessore mm. 3.85 Call
Location: 60 Prev | Next Part: 108667 *Qty: 24 Idem spessore mm. 3.25 $9.29
Location: 60 Prev | Next Part: 102851 *Qty: 24 Idem spessore mm. 4.40 $11.32
Location: 60 Prev | Next Part: 116104 *Qty: 24 Idem spessore mm. 3.87 $9.52
Location: 60 Prev | Next Part: 108668 *Qty: 24 Idem spessore mm. 3.30 $10.20
Location: 61 Prev | Next Part: 102662 *Qty: 12 Valvola di aspirazione $104.38
Location: 62 Prev | Next Part: 106553 *Qty: 12 Valvola di scarico $289.88
Location: 63 Prev | Next Part: 102857 *Qty: 24 Guida valvola $71.98
Location: 63 Prev | Next Part: 107026 *Qty: 24 Guida valvola maggiorata $92.25
Location: 64 Prev | Next Part: 105721 *Qty: 12 Sede valvola aspirazione Superseded
Location: 65 Prev | Next Part: 102859 *Qty: 12 Sede valvola scarico Call
Location: 66 Prev | Next Part: 100239 *Qty: 24 Molla interna richiamo valvola $13.80
Location: 67 Prev | Next Part: 100240 *Qty: 24 Molla esterna richiamo valvola $16.39
Location: 68 Prev | Next Part: 106180 *Qty: 24 Scodellino supei iore tenuta molle $67.28
Location: 69 Prev | Next Part: 106181 *Qty: 24 Scodellino inferiore tenuta molle $40.27
Location: 70 Prev | Next Part: 106437 *Qty: 2 Guarnizioni per borchie Superseded
Location: 71 Prev | Next Part: 108332 *Qty: 6 Terminate per sede candela $32.73
Location: 72 Prev | Next Part: 109545 *Qty: 1 Squadretta controllo fasatura Call
Location: 73 Prev | Next Part: 109543 *Qty: 1 Squadretta controllo fasatura $13.13
Location: 74 Prev | Next Part: 108005 *Qty: 1 Innesto per distributore $247.90
Location: 75 Prev | Next Part: 100279 *Qty: 1 Spina $18.38

* Quantity shown indicates the number of pieces used in the diagram.
