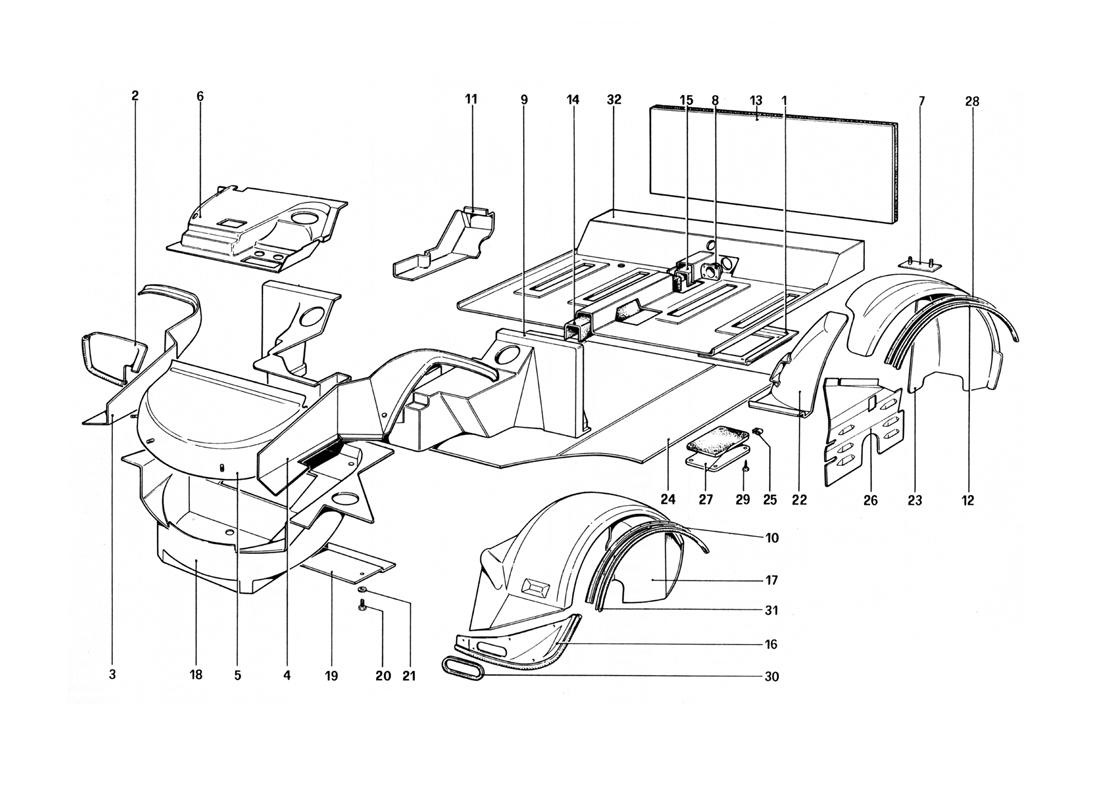

BODY SHELL - INNER ELEMENTS LOWER

Go to Split View

BODY SHELL - INNER ELEMENTS LOWER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 50360304 *Qty: 1 Protezione freno manuale $65.06
Location: 2 Prev | Next Part: 61077100 *Qty: 1 Paratia per tubi A.C. $247.19
Location: 2 Prev | Next Part: 50364801 *Qty: 1 Paratia per tubi A.C. $126.72
Location: 3 Prev | Next Part: 60853300 *Qty: 1 Paratia Dx. vano baule $203.73
Location: 4 Prev | Next Part: 60853200 *Qty: 1 Paratia Sx. vino baule $205.68
Location: 5 Prev | Next Part: 60962100 *Qty: 1 Paratia centrale vano baule $407.95
Location: 6 Prev | Next Part: 50351006 *Qty: 1 Paratia superiore pianale ant. per GD $322.78
Location: 6 Prev | Next Part: 50306109 *Qty: 1 Paratia superiore pianale ant. per GS $317.97
Location: 7 Prev | Next Part: 50077403 *Qty: 1 Staffa supporto bobina $25.46
Location: 8 Prev | Next Part: 40081200 *Qty: 1 Boccola per leva cambio $9.13
Location: 9 Prev | Next Part: 60850500 *Qty: 1 Pianale ant. per GS $1,409.88
Location: 9 Prev | Next Part: 50343607 *Qty: 1 Pianale ant. per GD $1,370.28
Location: 10 Prev | Next Part: 60848000 *Qty: 2 Modanatura per guarnizione Call
Location: 11 Prev | Next Part: 50350909 *Qty: 1 Riporto per pianale ant. per GD $186.22
Location: 11 Prev | Next Part: 50305804 *Qty: 1 Riporto per pianale ant. per GS $110.16
Location: 12 Prev | Next Part: 60838500 *Qty: 2 Guarnizione passaruota post. $55.93
Location: 13 Prev | Next Part: 60680700 *Qty: 1 Paratia schienale con isolante $681.56
Location: 14 Prev | Next Part: 50077007 *Qty: 1 Isolante tunnel centrale $83.77
Location: 15 Prev | Next Part: 50202209 *Qty: 1 Isolante post. tunnel centrale $27.61
Location: 16 Prev | Next Part: 60848600 *Qty: 1 Parasassi ant. Dx. $230.15
Location: 16 Prev | Next Part: 60848700 *Qty: 1 Parasassi ant. Sx. $230.15
Location: 17 Prev | Next Part: 61023300 *Qty: 1 Passaruota ant. Dx. $557.96
Location: 17 Prev | Next Part: 61023400 *Qty: 1 Passaruota ant. Sx. $557.96
Location: 18 Prev | Next Part: 60851100 *Qty: 1 Contenitore ruota di scorta Superseded
Location: 19 Prev | Next Part: 50131804 *Qty: 1 Sottopianale ant. $69.36
Location: 20 Prev | Next Part: 30165302 *Qty: 4 Vite Call
Location: 21 Prev | Next Part: 12643701 *Qty: 4 Rondella Superseded
Location: 22 Prev | Next Part: 50320803 *Qty: 1 Parasassi post. Dx. $527.96
Location: 22 Prev | Next Part: 50320902 *Qty: 1 Parasassi post. Sx. $527.96
Location: 23 Prev | Next Part: 60848100 *Qty: 1 Passaruota post. Dx. $757.15
Location: 23 Prev | Next Part: 60848200 *Qty: 1 Passaruota post. Sx. $580.75
Location: 24 Prev | Next Part: 50350800 *Qty: 1 Sottopianale con coperchi per GD $941.93
Location: 24 Prev | Next Part: 50315001 *Qty: 1 Sottopianale con coperchi per GS $884.34
Location: 25 Prev | Next Part: 20273602 *Qty: 4 Graffetta Superseded
Location: 26 Prev | Next Part: 60850200 *Qty: 1 Riparo motore Dx. $53.26
Location: 26 Prev | Next Part: 60838700 *Qty: 1 Riparo motore Sx. $53.26
Location: 27 Prev | Next Part: 50361708 *Qty: 1 Coperchio completo ispezione freno $69.14
Location: 28 Prev | Next Part: 60838300 *Qty: 2 Modanatum per guarnizione $51.82
Location: 29 Prev | Next Part: 50209403 *Qty: 4 Vite Call
Location: 30 Prev | Next Part: 60848800 *Qty: 2 Guarnizione entrata aria freni $16.33
Location: 31 Prev | Next Part: 60838400 *Qty: 2 Guarnizione passaruota ant. Call
Location: 32 Prev | Next Part: 60584300 *Qty: 1 Pianale per GD $1,114.71
Location: 32 Prev | Next Part: 61083100 *Qty: 1 Pianale per GS $1,136.33

* Quantity shown indicates the number of pieces used in the diagram.
