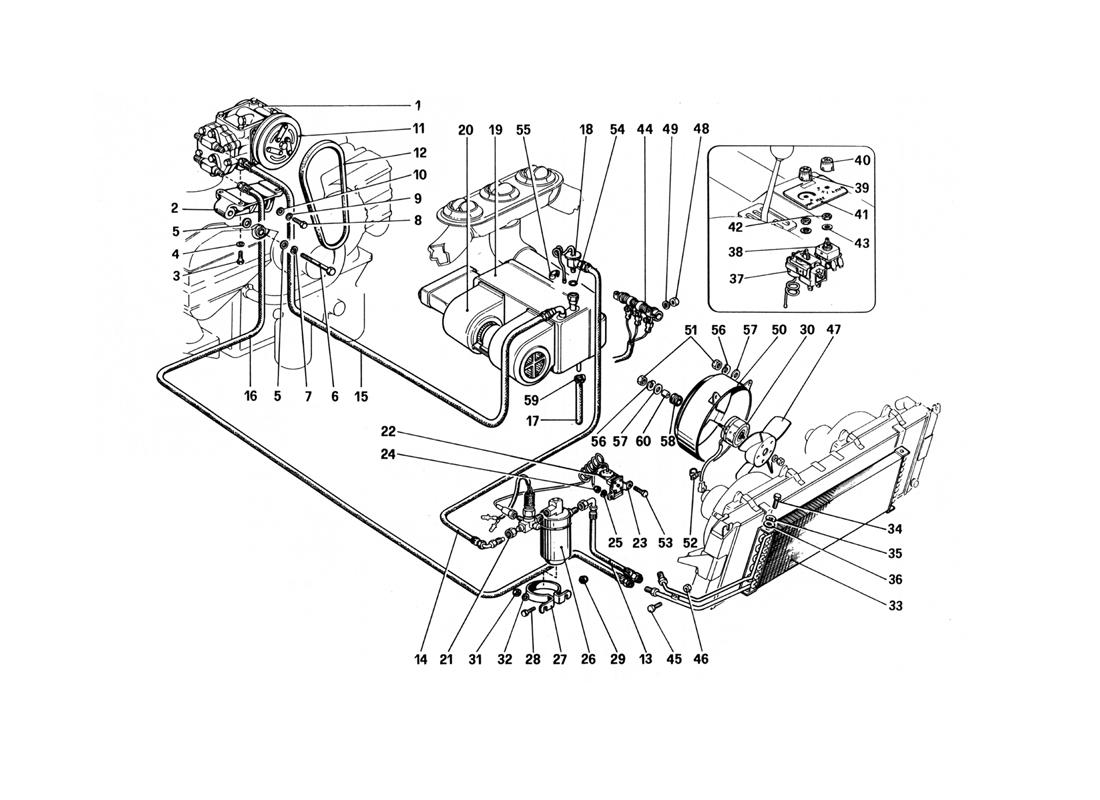

AIR CONDITIONING SYSTEM

AIR CONDITIONING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 106607 1 Compressore Superseded
2 104529 1 Supporto compressore Unavailable
3 100562 3 Bullone Unavailable
4 11198371 3 Rondella conica Unavailable
5 103024 2 Rondella $3.43
6 11360221 1 Bullone $3.74
7 10517171 1 Rondella Unavailable
8 15970921 2 Bullone Unavailable
9 10516871 2 Rondella Unavailable
10 105391 2 Rondella $3.86
11 105246 1 Puleggia con frizione cornando compressore Unavailable
12 105317 1 Cinghia comando compressore $131.20
13 118011 1 ''Tubo da depuratore a condensatore Superseded
14 118012 1 Tubo da evaporatore a depuratore Unavailable
15 118013 1 Tubo da compressore ad evaporatore Superseded
16 118014 1 Tubo da condensatore a compressore Superseded
17 106710 1 Tubo scarico condensa Unavailable
18 50330208 1 Gruppo condizionatore $2,990.92
18 106644 1 Valvola di espansione Superseded
19 109931 1 Evaporatore Unavailable
19 110962 1 Evaporatore Unavailable
20 109039 1 Gruppo ventilatore $2,721.58
21 106646 1 Raccordo per pressostato Unavailable
22 100460 1 Pressostato di massima Unavailable
23 106498 1 Supporto pressostato di massima $19.04
24 15896211 2 Dado Superseded
25 12601278 2 Rondella Superseded
26 106647 1 Depuratore $242.63
27 105899 1 Staffa fiss. depuratore $37.05
28 10903221 1 Bullone Unavailable
29 12574211 1 Dado Superseded
30 114710 1 Motorino elettroventilatore Superseded
31 16104411 2 Dado $0.90
32 10519621 2 Rondella $0.90
33 60840800 1 Condensatore Unavailable
34 10902121 4 Vite Superseded
35 11197773 4 Rondella Superseded
36 12643701 4 Rondella Superseded
37 109819 1 Termostato tarato Unavailable
38 101990 1 Commutatore Unavailable
39 105907 1 Pomello regolatore termostato Unavailable
40 105908 1 Pomello per commutatore Unavailable
41 109820 1 Piastrina indice comandi $110.88
42 105911 2 Dado $5.70
43 107144 2 Rondella $15.37
44 107142 1 Resistenza per commutatore Unavailable
45 10902121 1 Vite Superseded
46 12574211 1 Dado Superseded
47 114711 1 Ventola a 4 pale Superseded
48 10794011 2 Dado Unavailable
49 10615273 2 Rondella dentata Unavailable
50 114712 1 Convogliatore per elettioventilatore $409.27
51 15896211 6 Dado Superseded
52 14569480 1 Molletta Unavailable
53 17668901 3 Vite Unavailable
54 107216 1 Anello $6.50
55 105905 1 Fascetta per bulbo $36.72
56 106850 6 Rondella elastica Superseded
57 12643701 6 Rondella piana Superseded
58 103549 3 Gommino antivibrante $1.50
59 12179190 1 Fascetta Superseded
60 103550 3 Distanziale $6.82

* Quantity shown indicates the number of pieces used in the diagram.
