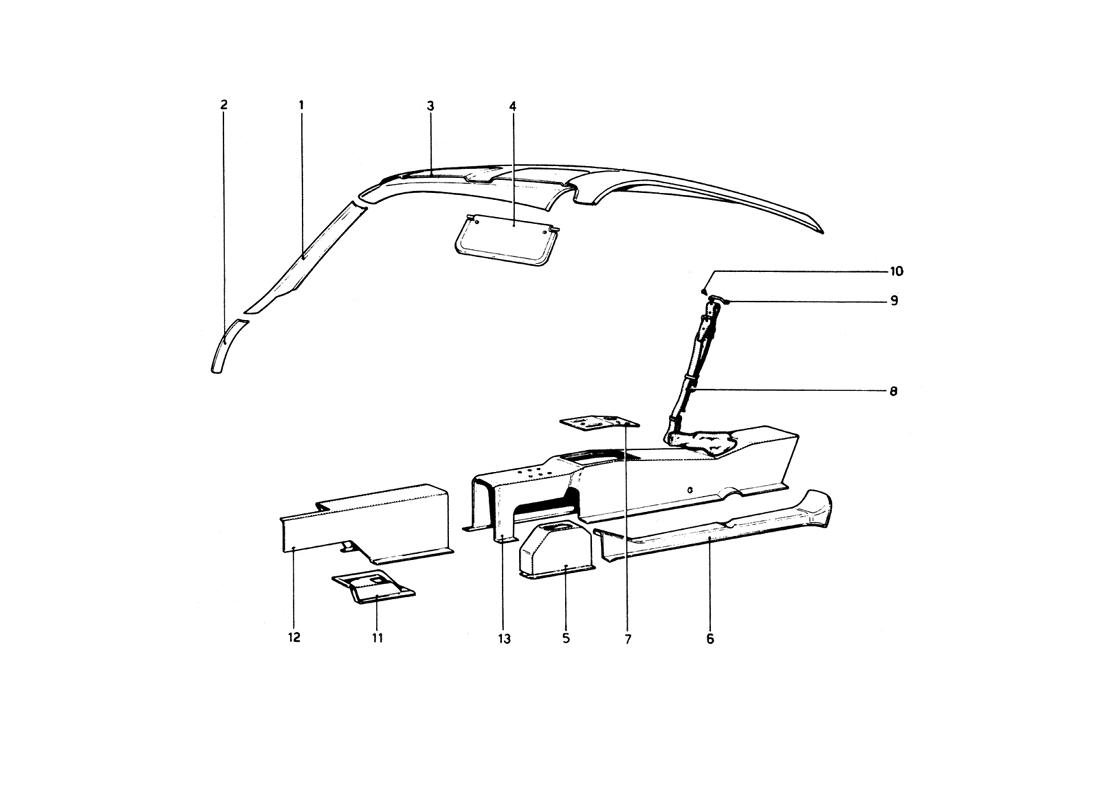

TUNNEL AND ROOF

Go to Split View

TUNNEL AND ROOF

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 50323401 *Qty: 1 Ossatura montante Dx $361.09
Location: 1 Prev | Next Part: 50323500 *Qty: 1 Ossatura montante Sx $361.09
Location: 1 Prev | Next Part: 50126101 *Qty: 1 Rivestimento ossatura Dx $208.52
Location: 1 Prev | Next Part: 50126200 *Qty: 1 Rivestimento ossatura Sx $193.55
Location: 2 Prev | Next Part: 50177609 *Qty: 1 Ossatura inferiore montante Dx
Vale per GD
$309.03
Location: 2 Prev | Next Part: 50124700 *Qty: 1 Ossatura inferiore montante Dx
Non vale per GD
Call
Location: 2 Prev | Next Part: 50124809 *Qty: 1 Ossatura inferiore montante Sx
Non vale per GD
Call
Location: 2 Prev | Next Part: 50177707 *Qty: 1 Ossatura inferiore montante Sx
Vale per GD
Call
Location: 2 Prev | Next Part: 50178409 *Qty: 1 Rivestimento ossatura inferiore Dx
Vale per GD
$101.42
Location: 2 Prev | Next Part: 50126309 *Qty: 1 Rivestimento ossatura inferiore Dx
Non vale per GD
Call
Location: 2 Prev | Next Part: 50126408 *Qty: 1 Rivestimento ossatura inferiore Sx
Non vale per GD
Call
Location: 2 Prev | Next Part: 50178508 *Qty: 1 Rivestimento ossatura inferiore Sx
Vale per GD
$101.42
Location: 3 Prev | Next Part: 50314806 *Qty: 1 Padiglione $1,273.48
Location: 4 Prev | Next Part: 60234101 *Qty: 1 Aletta parasole lato passeggero $227.53
Location: 4 Prev | Next Part: 60167301 *Qty: 1 Aletta parasole lato pilota $237.72
Location: 5 Prev | Next Part: 50311604 *Qty: 1 Protezione torretta cambio $584.09
Location: 5 Prev | Next Part: 50069004 *Qty: 1 Rivestimento protezione torretta $275.07
Location: 6 Prev | Next Part: 50312800 *Qty: 1 Protezione asta cambio Call
Location: 6 Prev | Next Part: 50202902 *Qty: 1 Rivestimento protezione $211.46
Location: 7 Prev | Next Part: 50312602 *Qty: 1 Piastra porta strumenti sul tunnell $186.55
Location: 7 Prev | Next Part: 50312206 *Qty: 1 Rivestimento piastra $37.37
Location: 8 Prev | Next Part: 50081108 *Qty: 2 Cinghia fermavaligie $144.90
Location: 9 Prev | Next Part: 30029904 *Qty: 4 Staffetta per cinghia Call
Location: 10 Prev | Next Part: 50206002 *Qty: 8 Vite Call
Location: 11 Prev | Next Part: 50110709 *Qty: 1 Ossatura pedale acceleratore
Non vale per GD
$285.25
Location: 11 Prev | Next Part: 50110907 *Qty: 1 Rivestimento ossatura pedale
Non vale per GD
$112.29
Location: 12 Prev | Next Part: 50068501 *Qty: 1 Rivestimento tunnel anteriore
Non vale per GD
Call
Location: 12 Prev | Next Part: 50179001 *Qty: 1 Rivestimento tunnel anteriore
Vale per GD
$361.09
Location: 12 Prev | Next Part: 50311505 *Qty: 1 Tunnel anteriore
Non vale per GD
Superseded
Location: 12 Prev | Next Part: 50343805 *Qty: 1 Tunnel anteriore
Vale per GD
$710.87
Location: 13 Prev | Next Part: 50312008 *Qty: 1 Tunnel centrale $2,015.48
Location: 13 Prev | Next Part: 50202704 *Qty: 1 Rivestimento tunnel centrale $941.81

* Quantity shown indicates the number of pieces used in the diagram.
