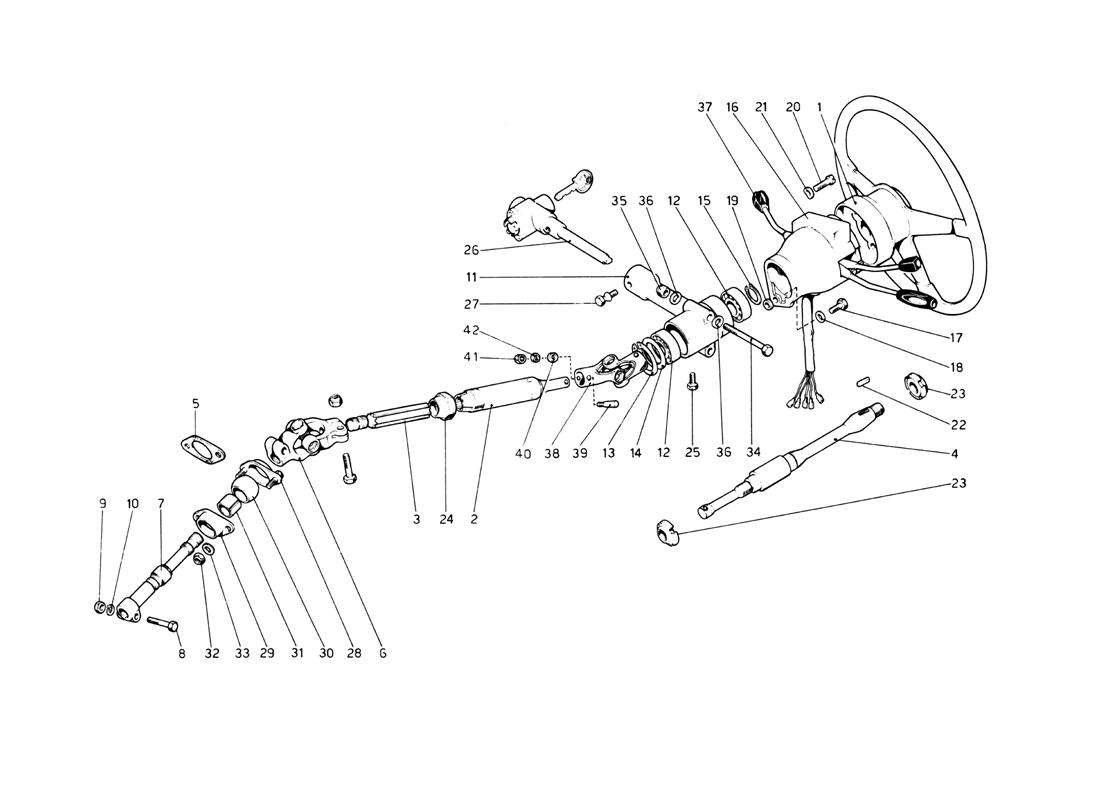

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 107484 *Qty: 1 Assieme volante guida Superseded
Location: 2 Prev | Next Part: 108735 *Qty: 1 Tubo guida $375.90
Location: 3 Prev | Next Part: 108557 *Qty: 1 Albero guida $192.62
Location: 4 Prev | Next Part: 108413 *Qty: 1 Albero superiore $408.58
Location: 5 Prev | Next Part: 109173 *Qty: 1 Guarnizione $4.44
Location: 6 Prev | Next Part: 103343 *Qty: 1 Giunto cardanico
In alternative con n. 108362
Call
Location: 6 Prev | Next Part: 108362 *Qty: 1 Giunto cardanico
In alternativa Con n. 103343
Superseded
Location: 7 Prev | Next Part: 107308 *Qty: 1 Estensione del pignone scatola guida completo Call
Location: 8 Prev | Next Part: 103371 *Qty: 1 Bullone Superseded
Location: 9 Prev | Next Part: 103373 *Qty: 1 Dado $1.06
Location: 10 Prev | Next Part: 103372 *Qty: 1 Rondella Superseded
Location: 11 Prev | Next Part: 106511 *Qty: 1 Supporto piantone guida e antifurto $70.03
Location: 12 Prev | Next Part: 101104 *Qty: 2 Cuscinetto $17.76
Location: 13 Prev | Next Part: 11060576 *Qty: 1 Anello Seeger $1.94
Location: 14 Prev | Next Part: 101101 *Qty: 1 Rondeila di rasamento - spessore mm. 0.5
Di eventuale montaggio
$1.29
Location: 14 Prev | Next Part: 107490 *Qty: 1 Rondella di rasamento - spessore mm. 0.2
Di eventuale montaggio
$13.91
Location: 14 Prev | Next Part: 107489 *Qty: 1 Rondella di rasamento - spessore mm. 0.3
Di eventuale montaggio
$13.91
Location: 14 Prev | Next Part: 107488 *Qty: 1 Rondella di rasamento - spessore mm. 0.4
Di eventuale montaggio
$2.37
Location: 15 Prev | Next Part: 11067370 *Qty: 1 Anello Seeger Call
Location: 16 Prev | Next Part: 108490 *Qty: 1 Cannotto porta commutatori $225.76
Location: 17 Prev | Next Part: 10902221 *Qty: 1 Bullone fissaggio cannotto $1.31
Location: 18 Prev | Next Part: 12601271 *Qty: 1 Rondella Superseded
Location: 19 Prev | Next Part: 12639701 *Qty: 1 Distanziale Call
Location: 20 Prev | Next Part: 10389901 *Qty: 2 Vite fissaggio commutatore $0.90
Location: 21 Prev | Next Part: 12541670 *Qty: 2 Rondella elastica $1.06
Location: 22 Prev | Next Part: 101106 *Qty: 1 Chiavetta $0.90
Location: 23 Prev | Next Part: 106610 *Qty: 2 Ghiera $99.77
Location: 24 Prev | Next Part: 105870 *Qty: 1 Dado registro Call
Location: 25 Prev | Next Part: 10979421 *Qty: 1 Bullone fissaggio rivestimento $0.90
Location: 26 Prev | Next Part: 106614 *Qty: 1 Antifurto Superseded
Location: 27 Prev | Next Part: 106615 *Qty: 1 Bullone fissaggio antifurto Superseded
Location: 28 Prev | Next Part: 105667 *Qty: 1 Flangia per articolazione sferica superiore $28.48
Location: 28 Prev | Next Part: 106909 *Qty: 1 Flanglia per articolazione sferica completa Call
Location: 29 Prev | Next Part: 103292 *Qty: 1 Flangia per articolazione sferica inferiore $12.79
Location: 30 Prev | Next Part: 103297 *Qty: 1 Sfera per articolazione $47.98
Location: 31 Prev | Next Part: 103370 *Qty: 1 Boccola sulla sfera Call
Location: 32 Prev | Next Part: 16104121 *Qty: 2 Dado Superseded
Location: 33 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 34 Prev | Next Part: 103576 *Qty: 2 Bullone $21.87
Location: 35 Prev | Next Part: 16104421 *Qty: 2 Dado Superseded
Location: 36 Prev | Next Part: 10519501 *Qty: 4 Rondella $0.90
Location: 37 Prev | Next Part: 116780 *Qty: 1 Column switch Call
Location: 37 Prev | Next Part: 106539 *Qty: 1 Deviosgancio Call
Location: 38 Prev | Next Part: 108415 *Qty: 1 Giunto cardanico Superseded
Location: 39 Prev | Next Part: 108416 *Qty: 2 Spina conica $4.38
Location: 40 Prev | Next Part: 108417 *Qty: 2 Distanziale $1.17
Location: 41 Prev | Next Part: 12574221 *Qty: 2 Dado Superseded
Location: 42 Prev | Next Part: 10519401 *Qty: 2 Rondella Superseded

* Quantity shown indicates the number of pieces used in the diagram.
